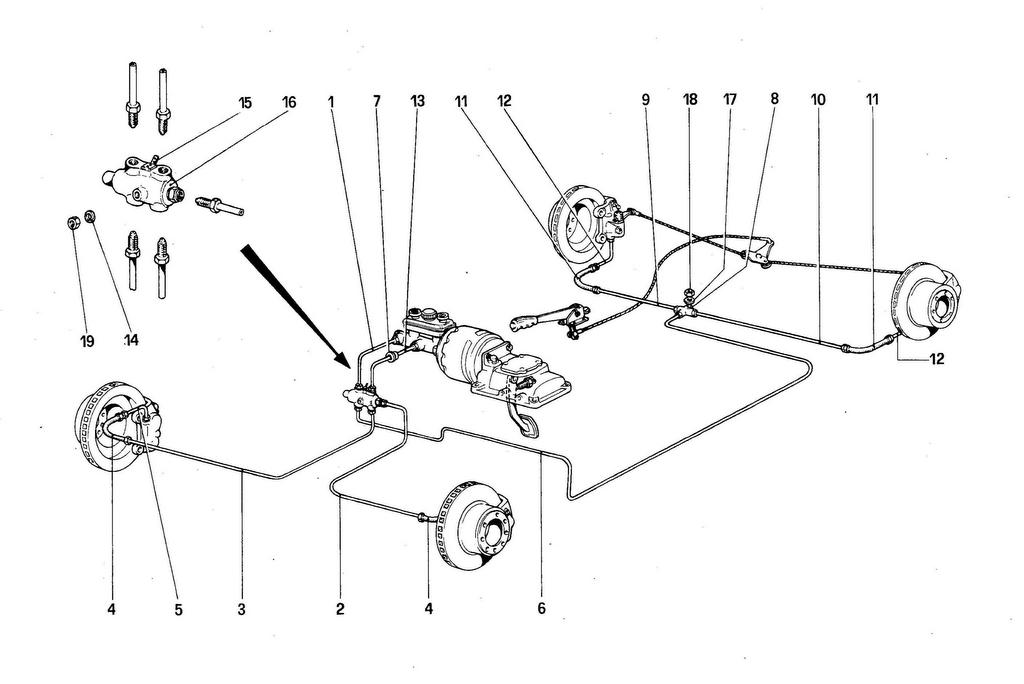

BRAKE SYSTEM

Go to Split View

BRAKE SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 101407 *Qty: 1 Pipe from brake booster to indicatorof rear Call
Location: 2 Prev | Next Part: 105850 *Qty: 1 Pipe from indicator to left front hose $4.42
Location: 3 Prev | Next Part: 104469 *Qty: 1 Pipe from indicator to right front hose $11.77
Location: 4 Prev | Next Part: 116489 *Qty: 2 Front circuit hose $183.35
Location: 5 Prev | Next Part: 106671 *Qty: 2 Pipe from hose to caliper Superseded
Location: 6 Prev | Next Part: 113022 *Qty: 1 Pipe from valve to 3 way union On exhaustion use no. 117344 Superseded
Location: 7 Prev | Next Part: 105369 *Qty: 1 Fair - lead $1.76
Location: 8 Prev | Next Part: 101394 *Qty: 1 3-way union Call
Location: 9 Prev | Next Part: 104470 *Qty: 1 Pipe from 3-way union to right hose $12.94
Location: 10 Prev | Next Part: 106672 *Qty: 1 Pipe from 3-way union to left hose $6.80
Location: 11 Prev | Next Part: 116491 *Qty: 2 Rear hose $70.95
Location: 12 Prev | Next Part: 101401 *Qty: 2 Pipe from hose to rear caliper Call
Location: 13 Prev | Next Part: 105278 *Qty: 1 Pipe from brake booster to indicator $13.80
Location: 14 Prev | Next Part: 106850 *Qty: 1 Washer Superseded
Location: 15 Prev | Next Part: 108955 *Qty: 1 Electric indicator Call
Location: 16 Prev | Next Part: 108803 *Qty: 1 Brake failure indicator Superseded
Location: 17 Prev | Next Part: 12639701 *Qty: 1 Washer Call
Location: 18 Prev | Next Part: 12574211 *Qty: 1 Nut Superseded
Location: 19 Prev | Next Part: 15896211 *Qty: 1 Nut Superseded

* Quantity shown indicates the number of pieces used in the diagram.
