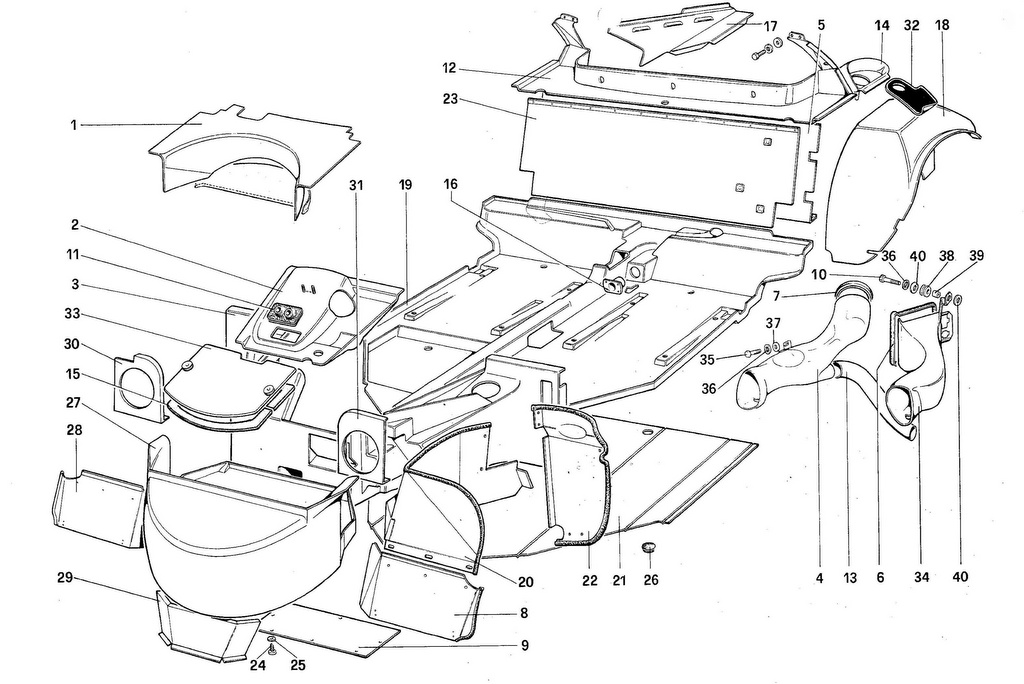

BODY SHELL – INNER ELEMENTS

Go to Split View

BODY SHELL – INNER ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60351905 *Qty: 1 Panel spare wheel compartment $485.63
Location: 2 Prev | Next Part: 60054004 *Qty: 1 Upper additional panel $615.18
Location: 3 Prev | Next Part: 60044609 *Qty: 1 Front panel GTB Call
Location: - Prev | Next Part: 60327301 *Qty: 1 Front panel GTS Call
Location: 4 Prev | Next Part: 61203400 *Qty: 1 Air duct R.H. $468.11
Location: 5 Prev | Next Part: 60706500 *Qty: 1 Panel on engine comp. side GTB $143.34
Location: - Prev | Next Part: 60719400 *Qty: 1 Panel on engine comp. side GTS $143.34
Location: 6 Prev | Next Part: 61048900 *Qty: 1 Gasket $17.04
Location: 7 Prev | Next Part: 61049000 *Qty: 1 Gasket $8.63
Location: 8 Prev | Next Part: 60298403 *Qty: 1 Front gravel guard L.H. standard $84.29
Location: - Prev | Next Part: 60307600 *Qty: 1 Front gravel guard L.H. oversize $135.64
Location: 9 Prev | Next Part: 60059706 *Qty: 1 Panel Call
Location: 10 Prev | Next Part: 10902411 *Qty: 1 Screw Superseded
Location: 11 Prev | Next Part: 60054905 *Qty: 1 Fair - lead for A.C. pipes $9.82
Location: 12 Prev | Next Part: 61010800 *Qty: 1 Plane rear window (STB $267.33
Location: - Prev | Next Part: 61128400 *Qty: 1 Plane rear window GTS $268.50
Location: 13 Prev | Next Part: 6U439700 *Qty: 1 Air duct R.H. Call
Location: 14 Prev | Next Part: 60441201 *Qty: 1 Fuel filler chamber GTB $123.28
Location: - Prev | Next Part: 60342904 *Qty: 1 Fuel filler chamber GTS $142.41
Location: 15 Prev | Next Part: 60031101 *Qty: 1 Gasket Call
Location: 16 Prev | Next Part: 60084704 *Qty: 1 Bushin $8.63
Location: 17 Prev | Next Part: 60956900 *Qty: 1 Inner covering R.H. fins $118.36
Location: - Prev | Next Part: 60956800 *Qty: 1 Inner covering L.H. fins $94.32
Location: 18 Prev | Next Part: 60091303 *Qty: 1 Rear wheelhouse R.H. $400.41
Location: - Prev | Next Part: 61049100 *Qty: 1 Rear wheelhouse L.H. $317.52
Location: 19 Prev | Next Part: 60880700 *Qty: 1 Resin flat bed GTB $1,444.02
Location: - Prev | Next Part: 60880800 *Qty: 1 Resin flat bed GTS $1,111.31
Location: 20 Prev | Next Part: 61012800 *Qty: 1 Front wheelhouse R.H. Call
Location: - Prev | Next Part: 61012900 *Qty: 1 Front wheelhouse L.H. $285.23
Location: 21 Prev | Next Part: 60880900 *Qty: 1 Under flat bed $869.08
Location: 22 Prev | Next Part: 60259603 *Qty: 1 Gravel guard for R.H. wheelhouse GTB $169.04
Location: - Prev | Next Part: 60308301 *Qty: 1 Gravel guard for R.H. wheelhouse GTS $139.61
Location: - Prev | Next Part: 60259702 *Qty: 1 Gravel guard for L.H. wheelhouse GTB $169.04
Location: - Prev | Next Part: 60308400 *Qty: 1 Gravel guard for L.H. wheelhouse GTS $139.61
Location: 23 Prev | Next Part: 60850800 *Qty: 1 Panel on passenger comp. side $115.58
Location: 24 Prev | Next Part: 20146601 *Qty: 6 Screw Superseded
Location: 25 Prev | Next Part: 12643701 *Qty: 6 Washer Superseded
Location: 26 Prev | Next Part: 40305203 *Qty: 1 Plug under flat bed $7.46
Location: 27 Prev | Next Part: 60552900 *Qty: 1 Housing for wheel $904.69
Location: 28 Prev | Next Part: 60298304 *Qty: 1 Front gravel guard R.H. standard Call
Location: - Prev | Next Part: 60307501 *Qty: 1 From gravel guard R.H. oversize Call
Location: 29 Prev | Next Part: 60351707 *Qty: 1 Battery protection $252.07
Location: 30 Prev | Next Part: 61017100 *Qty: 1 R.H. panel $18.68
Location: 31 Prev | Next Part: 61017200 *Qty: 1 L.H. panel $15.40
Location: 32 Prev | Next Part: 60134202 *Qty: 1 Gasket fuel filler Superseded
Location: 33 Prev | Next Part: 60279809 *Qty: 1 Protection cover for battery $120.00
Location: 34 Prev | Next Part: 61048800 *Qty: 1 Air duct L.H. $456.43
Location: 35 Prev | Next Part: 10902121 *Qty: 1 Screw Superseded
Location: 36 Prev | Next Part: 106850 *Qty: 2 Washer Superseded
Location: 37 Prev | Next Part: 12643721 *Qty: 1 Washer $1.19
Location: 38 Prev | Next Part: 103549 *Qty: 1 Elastic bush $0.90
Location: 39 Prev | Next Part: 103550 *Qty: 1 Spacer $2.55
Location: 40 Prev | Next Part: 12643701 *Qty: 2 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
