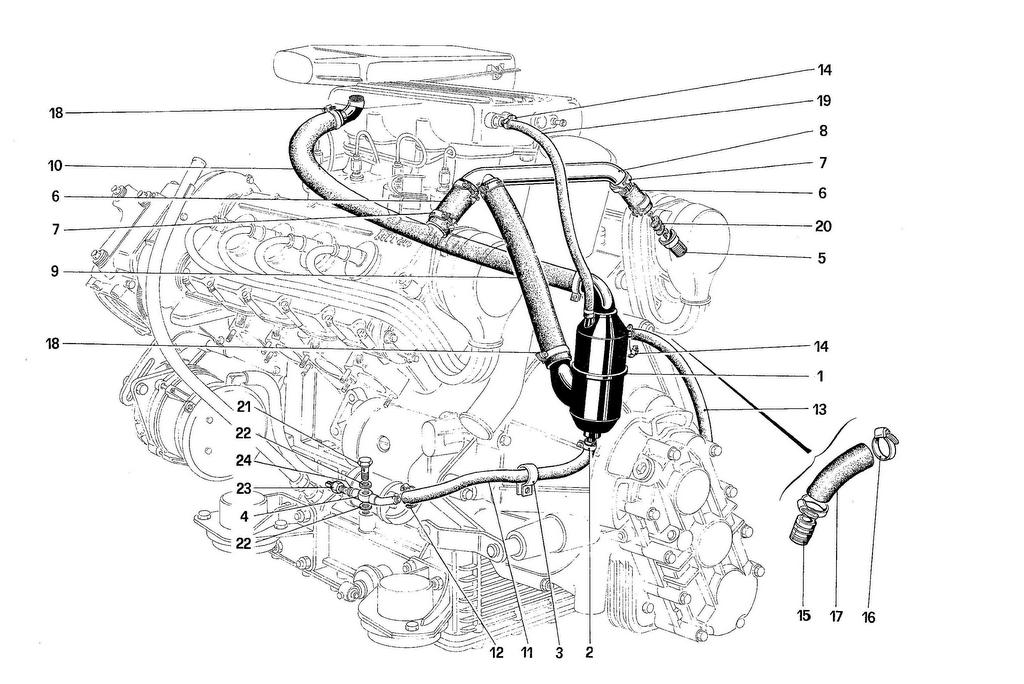

BLOW-BY SYSTEM

Go to Split View

BLOW-BY SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 119065 *Qty: 1 Oil vapour separator $482.23
Location: 2 Prev | Next Part: 10168790 *Qty: 1 Clamp Call
Location: 3 Prev | Next Part: 10450490 *Qty: 1 Pipe securing clamp $0.90
Location: 4 Prev | Next Part: 121842 *Qty: 1 Revolving device $118.42
Location: 5 Prev | Next Part: 119236 *Qty: 2 Union on head covers $10.18
Location: 6 Prev | Next Part: 116783 *Qty: 2 Sleeve $41.41
Location: 7 Prev | Next Part: 10169090 *Qty: 4 Clamp Call
Location: 8 Prev | Next Part: 118312 *Qty: 1 3 way pipe $79.25
Location: 9 Prev | Next Part: 118958 *Qty: 1 Tube from 3-way pipe to vapour separator Call
Location: 10 Prev | Next Part: 118959 *Qty: 1 Tube from vapour separator to Call
Location: 11 Prev | Next Part: 121823 *Qty: 1 Tube from vapour separator to oil sump $24.89
Location: 12 Prev | Next Part: 10168890 *Qty: 1 Clamp Call
Location: 13 Prev | Next Part: 115366 *Qty: 1 Breather pipe on clutch housing Call
Location: 14 Prev | Next Part: 12179090 *Qty: 4 Clamp Superseded
Location: 15 Prev | Next Part: 102705 *Qty: 1 Union $32.95
Location: 16 Prev | Next Part: 10169290 *Qty: 2 Clamp $10.87
Location: 17 Prev | Next Part: 118216 *Qty: 1 Sleeve $77.09
Location: 18 Prev | Next Part: 10169290 *Qty: 4 Clamp $10.87
Location: 19 Prev | Next Part: 111199 *Qty: 1 Hose from separator to air intake $10.87
Location: 20 Prev | Next Part: 119237 *Qty: 2 Splash screen $0.90
Location: 21 Prev | Next Part: 121424 *Qty: 1 Union $13.35
Location: 22 Prev | Next Part: 10282460 *Qty: 2 Gasket $1.17
Location: 23 Prev | Next Part: 115652 *Qty: 1 Bimetal thermostat Call
Location: 24 Prev | Next Part: 10260060 *Qty: 1 Gasket $0.95

* Quantity shown indicates the number of pieces used in the diagram.
