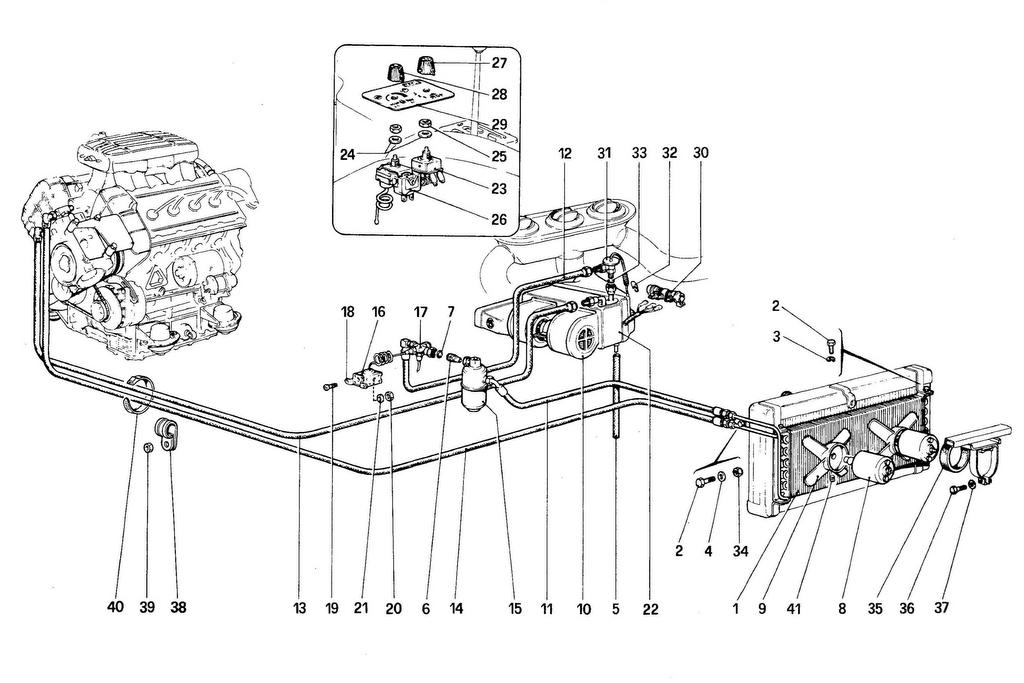

AIR CONDITIONING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 106697 *Qty: 1 Condenser Call
Location: 2 Prev | Next Part: 10902121 *Qty: 5 Screw Superseded
Location: 3 Prev | Next Part: 10516477 *Qty: 4 Washer Superseded
Location: 4 Prev | Next Part: 12643701 *Qty: 1 Washer Superseded
Location: 5 Prev | Next Part: 106710 *Qty: 1 Condensate drainage pipe $38.93
Location: 6 Prev | Next Part: 107402 *Qty: 1 Union for receiver/drier $42.79
Location: 7 Prev | Next Part: 103039 *Qty: 1 Sealing ring $1.15
Location: 8 Prev | Next Part: 119447 *Qty: 2 Fan motor $355.18
Location: 9 Prev | Next Part: 122957 *Qty: 2 4 - blade fan Call
Location: 10 Prev | Next Part: 109039 *Qty: 1 Fan assembly $549.91
Location: 11 Prev | Next Part: 109322 *Qty: 1 Pipe 03/8". condenser to receiver/drier $88.74
Location: 12 Prev | Next Part: 109867 *Qty: 1 Pipe 03/8". condenser to evaporator $87.16
Location: 13 Prev | Next Part: 109868 *Qty: 1 Pipe 05/8". evaporator to compressor Superseded
Location: 14 Prev | Next Part: 110367 *Qty: 1 Pipe 0 1/2". compressor to condenser Call
Location: 15 Prev | Next Part: 106647 *Qty: 1 Receiver/drier Superseded
Location: 16 Prev | Next Part: 100460 *Qty: 1 Max. pressure switch Call
Location: 17 Prev | Next Part: 106646 *Qty: 1 Union for pressure switch Call
Location: 18 Prev | Next Part: 106498 *Qty: 1 Support for pressure switch $15.16
Location: 19 Prev | Next Part: 17669801 *Qty: 3 Screw Call
Location: 20 Prev | Next Part: 15896211 *Qty: 2 Nut Superseded
Location: 21 Prev | Next Part: 12601278 *Qty: 2 Washer Superseded
Location: - Prev | Next Part: 60183605 *Qty: 1 A.C.assembly with conveyor $2,103.20
Location: 22 Prev | Next Part: 109818 *Qty: 1 Evaporator unit. complete With assembly no. 60183605 Superseded
Location: 23 Prev | Next Part: 101990 *Qty: 1 Switch Call
Location: 24 Prev | Next Part: 107144 *Qty: 2 Washer $11.31
Location: 25 Prev | Next Part: 105911 *Qty: 1 Nut $4.32
Location: 26 Prev | Next Part: 109819 *Qty: 1 Thermostat. calibrated Call
Location: 27 Prev | Next Part: 105908 *Qty: 1 Knob for switch Superseded
Location: 28 Prev | Next Part: 105907 *Qty: 1 Knob for thermostat . Superseded
Location: 29 Prev | Next Part: 109820 *Qty: 1 Plate. controls index Call
Location: 30 Prev | Next Part: 107142 *Qty: 1 Resistance for switch $52.75
Location: 31 Prev | Next Part: 106644 *Qty: 1 Expansion valve Superseded
Location: 32 Prev | Next Part: 105905 *Qty: 1 Strap for bulb $27.84
Location: 33 Prev | Next Part: 107216 *Qty: 1 O R ring for valve $4.75
Location: 34 Prev | Next Part: 12574211 *Qty: 1 Nut Superseded
Location: 35 Prev | Next Part: 111872 *Qty: 2 Gasket for motor $6.80
Location: 36 Prev | Next Part: 112012 *Qty: 2 Screw $0.90
Location: 37 Prev | Next Part: 106850 *Qty: 2 Washer Superseded
Location: 38 Prev | Next Part: 10441990 *Qty: 2 ClampPipe clamp no. 110367 $0.94
Location: 39 Prev | Next Part: 12574211 *Qty: 1 Nut Superseded
Location: 40 Prev | Next Part: 103755 *Qty: 1 Clamp $1.76
Location: 41 Prev | Next Part: 13709610 *Qty: 2 Dowel Call

* Quantity shown indicates the number of pieces used in the diagram.
