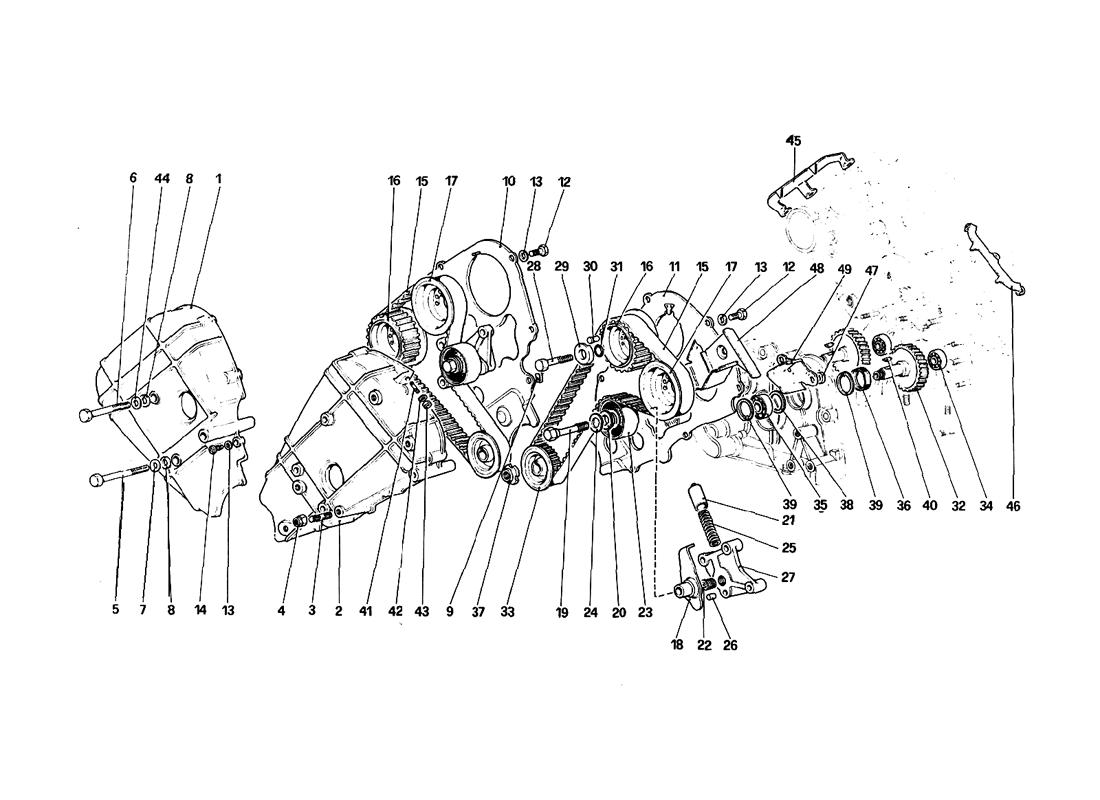

TIMING SYSTEM - CONTROLS

TIMING SYSTEM - CONTROLS

Location Part # Quantity* Description Price Add To Cart
1 117350 1 Right cover
Assembly with single belt
$213.94
1 121653 1 Right cover
Assembly with two individual belt
$257.12
2 123697 1 Left cover
With assembly no. 124681 (For Sankyo compressor)
Superseded
2 117438 1 Left cover, complete $419.64
2 124681 1 Left cover, complete $576.72
2 117351 1 Left cover
With assembly no. 117438 (For ASPERA compressor)
Unavailable
3 13546221 1 Stud Superseded
4 13598021 1 Nut $3.94
5 121660 2 Screw
For cover no. 121653
$89.73
5 111668 2 Screw
For cover no. 117350
$40.90
6 109013 1 Screw Superseded
7 12638601 3 Washer
With two individual belts q = 2
$0.90
8 106853 3 Washer Superseded
9 60793500 1 Spring clip
Up to engine no. 2187
$1.26
10 117628 1 Protection right belt
Up to engine no. 2187
Unavailable
11 117627 1 Protection left belt
Up to engine no. 2187
Unavailable
12 10977711 12 Screw Superseded
13 12601171 13 Washer Superseded
14 15688502 1 Screw $1.81
15 111334 2 Timing belt $24.77
16 113097 2 Driver gear $494.10
17 113098 2 Driver gear $494.10
18 117256 2 Belt stretcher plate $508.19
19 111458 2 Screw $69.34
20 111460 2 Spacer Unavailable
21 102819 2 Pin $156.43
22 13524670 2 Heli - coil Unavailable
23 105206 2 Belt idler ring Superseded
24 102824 2 Washer $15.18
25 104148 2 Spring $31.49
26 125712 2 Dowel pin $1,132.05
27 118153 1 Support for left belt stretcher $249.30
27 118152 1 Support for right belt stretcher $293.29
28 16326431 4 Screw Unavailable
29 117274 4 Washer $4.06
30 106203 4 Dowel pin Unavailable
31 114808 4 Sealing ring $5.24
32 117656 2 Drive gear for distributing shafts
For crankcase no. 117598
$1,574.63
32 121272 2 Drive gear for distributing shafts
For crankcase no. 121286
Unavailable
33 112018 2 Driving pulley
For crankcase no. 117598
$683.64
33 121273 2 Driving pulley
For crankcase no. 121286
Unavailable
34 104918 2 Bearing for crankcase dia. 32 mm
For crankcase no. 117598
$12.79
34 121275 2 Bearing for crankcase dia. 37 mm
For crankcase no. 121286
$11.63
35 112019 2 Bearing (dia. 40 mm) on front cover
For crankcase no. 117598
Superseded
35 121274 2 Bearing (dia. 44 mm) on front cover
For crankcase no. 121386
$192.99
36 121276 2 Oil retaining
for crankcase no. 121286
$18.01
36 117276 2 Oil retaining
For crankcase no.117598
$29.58
37 104019 2 Lock nut Unavailable
38 121279 2 Washer
For crankcase no. 121286
Unavailable
38 104915 2 Washer
For crankcase no. 117598
$51.07
39 11059975 4 Seeger
For crankcase no. 117598
Superseded
39 121277 4 Seeger
For crankcase no. 121286
Unavailable
40 10206320 2 Tongue $1.81
41 11500121 1 Stud
For cover 123697 use no. 10902011
Superseded
42 12644421 1 Washer
For cover 123697 use no. 12601271
Superseded
43 12574211 1 Nut Superseded
44 105391 1 Washer
Assembly with 2 individual belts
$3.86
45 125109 1 Timing reference plate right cylinder head
From engine no. 2188
$70.62
46 125110 1 Timing reference plate left cylinder head
From engine no. 2188
$21.07
47 124946 4 Spacer
For p. no. 125109 - 125110
$12.20
48 125114 1 Protection plate for right belt
From engine no. 2188
$133.66
49 125115 1 Protection plate for left belt
From engine no. 2188
Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
