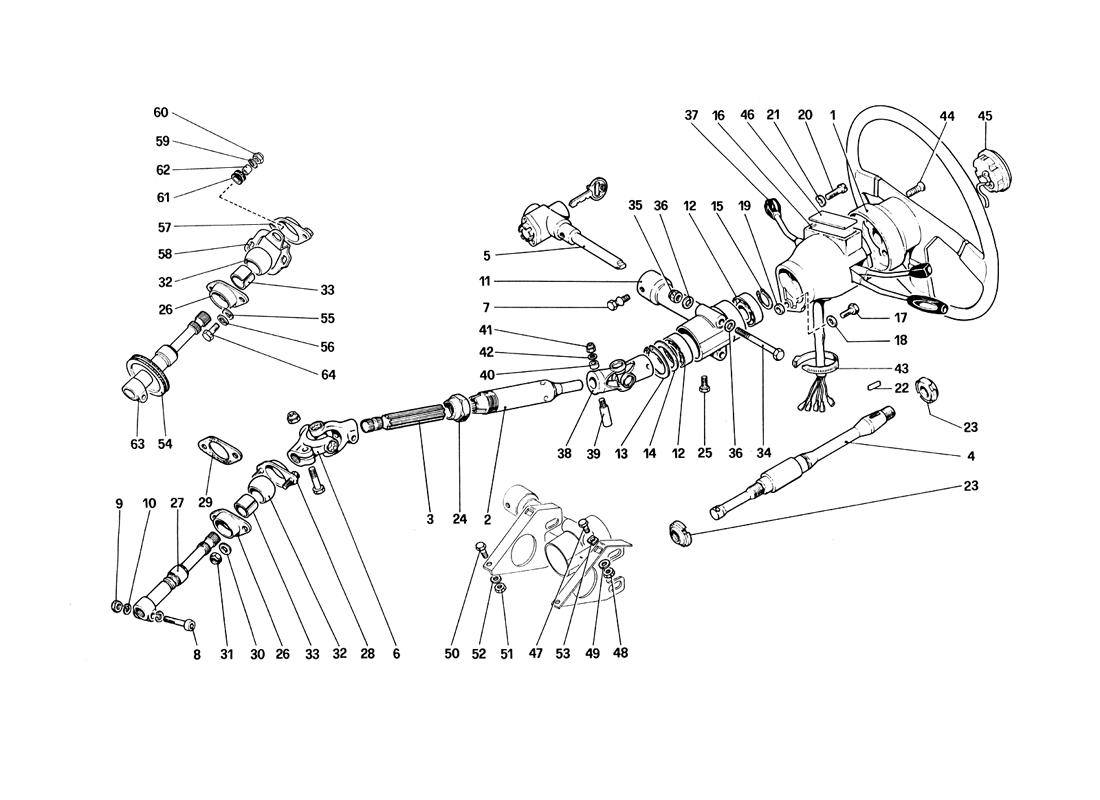

STEERING COLUMN

STEERING COLUMN

Location Part # Quantity* Description Price Add To Cart
1 119023 1 Steering wheel Superseded
2 108735 1 Guide tube
On exhaustion use no, ,117379
$457.44
3 108737 1 Steering shaft $220.46
4 108413 1 Upper shaft $497.17
5 106614 1 Anti-theft device Superseded
6 108362 1 Universal joint
Optional n. 103343
Superseded
7 106615 1 Bolt Superseded
8 125518 1 Bolt $2.05
9 125519 1 Nut $1.30
10 12601271 2 Washer Superseded
11 106611 1 Support steering column and anti - theft device $947.22
12 101104 2 Bearing $16.46
13 11060576 1 Seeger ring $1.81
14 107488 1 Shim, thickness 0,4 mm
Possible fitting
$3.13
14 101101 1 Shim, thickness 0,5 mm
Possible fitting
$1.68
14 107489 1 Shim, thickness 0,3 mm
Possible fitting
$12.89
14 107490 1 Shim, thickness 0,2 mm.
Possible fitting
$12.89
15 11067376 1 Seeger ring $1.68
16 120429 1 Commutator housing Unavailable
17 10902221 1 Bolt Unavailable
18 12601271 1 Washer Superseded
19 12639701 1 Spacer Unavailable
20 10389901 2 Screw Unavailable
21 12544171 2 Spring washer Superseded
22 101106 1 Key $7.39
23 106610 2 Ring nut $84.65
24 106870 1 Adjust nut $16.42
25 10979421 1 Bolt Unavailable
26 103292 1 Lower flange
Up to chassis no.
$14.11
27 107308 1 Pinion extension
Up to chassis no.
Unavailable
28 105667 1 Flange for upper ball joint
Up to chassis no.
$34.67
29 109173 1 Gasket
Up to chassis no.
Unavailable
30 16104121 2 Nut
Up to chassis no.
Superseded
31 10519621 2 Washer
Up to chassis no.
$0.90
32 103297 1 Ball joint $61.37
33 103370 1 Bushing Unavailable
34 103576 2 Bolt $20.26
35 16104421 2 Nut Superseded
36 10519621 4 Washer $0.90
37 118303 1 Mainswitch Unavailable
38 112572 1 Universal joint Unavailable
39 112573 2 Pin $55.05
40 112571 2 Spacer $9.60
41 12574221 2 Nut Superseded
42 10519401 2 Washer Superseded
43 103755 1 Strap Unavailable
44 111189 6 Screw $6.19
45 101071 1 Horn button and retainer Superseded
46 120434 1 Car identification plate
For GTSno. 120435
$32.13
47 10902121 2 Screw Superseded
48 15896211 2 Nut Superseded
49 106850 2 Washer Superseded
50 16043221 2 Screw Unavailable
51 16100811 2 Nut Superseded
52 106852 2 Washer Superseded
53 106425 2 Plate $22.39
54 112466 1 Guilding bush
From chassis no.
$31.83
55 106850 2 Washer
From chassis no.
Superseded
56 10519401 2 Washer
From chassis no.
Superseded
57 123683 1 Upper flang
From chassis no.
$16.42
58 123682 1 Mounting for joint
From chassis no.
$199.87
59 12643701 2 Washer
From chassis no.
Superseded
60 12574211 2 Nut
From chassis no.
Superseded
61 103549 2 Anti-vibration rubber
From chassis no.
$1.50
62 103550 2 Bush
From chassis no.
$6.82
63 123522 1 Pinion extension
From chassis no.
$211.42
64 10902321 2 Bolt
From chassis no.
Superseded

* Quantity shown indicates the number of pieces used in the diagram.
