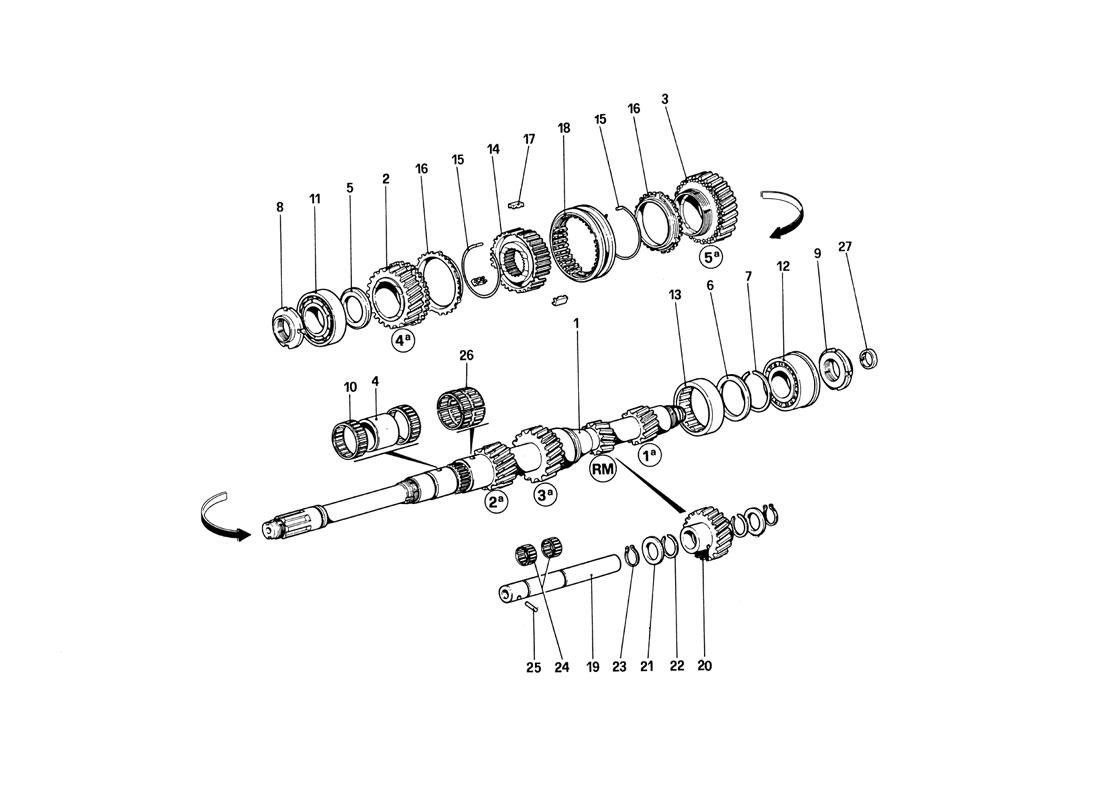

MAIN SHAFT GEARS

Go to Split View

MAIN SHAFT GEARS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 119740 *Qty: 1 Mainshaft
CH only
$1,962.31
Location: 1 Prev | Next Part: 119705 *Qty: 1 Mainshaft
CH version excluded
$4,858.50
Location: 2 Prev | Next Part: 119718 *Qty: 1 Gear, 4th speed $1,510.55
Location: 3 Prev | Next Part: 119719 *Qty: 1 Gear, 5th speed
CH version excluded
$1,249.92
Location: 3 Prev | Next Part: 119746 *Qty: 1 Gear, 5th speed
CH only
$2,290.33
Location: 4 Prev | Next Part: 113085 *Qty: 1 Bearing race 4th speed $57.91
Location: 5 Prev | Next Part: 104242 *Qty: 1 Spacer $83.34
Location: 6 Prev | Next Part: 105538 *Qty: 1 Spacer $57.19
Location: 7 Prev | Next Part: 112699 *Qty: 1 Spring ring $52.53
Location: 8 Prev | Next Part: 104252 *Qty: 1 Ring nut $40.00
Location: 9 Prev | Next Part: 104253 *Qty: 1 Ring nut $40.00
Location: 10 Prev | Next Part: 104255 *Qty: 2 Roller cage, 4th speed $39.85
Location: 11 Prev | Next Part: 108656 *Qty: 1 Bearing, clutch side $643.75
Location: 12 Prev | Next Part: 103042 *Qty: 1 Bearing $249.85
Location: 13 Prev | Next Part: 105539 *Qty: 1 Central bearing $97.02
Location: 14 Prev | Next Part: 106046 *Qty: 1 Synchronizer $858.70
Location: 15 Prev | Next Part: 108363 *Qty: 2 Ring spring $83.54
Location: 16 Prev | Next Part: 106048 *Qty: 2 Sychromesh ring $663.12
Location: 17 Prev | Next Part: 126201 *Qty: 3 Pad $116.27
Location: 18 Prev | Next Part: 106051 *Qty: 1 Sleeve $811.30
Location: 19 Prev | Next Part: 104221 *Qty: 1 Shaft for reverse idle gear $161.55
Location: 20 Prev | Next Part: 119713 *Qty: 1 Reverse idle gear $601.18
Location: 21 Prev | Next Part: 104249 *Qty: 2 Spacer $131.64
Location: 22 Prev | Next Part: 104250 *Qty: 2 Spring ring $1.29
Location: 23 Prev | Next Part: 11067075 *Qty: 2 Spring ring Superseded
Location: 24 Prev | Next Part: 104256 *Qty: 2 Roller cage for reverse idle gear $10.05
Location: 25 Prev | Next Part: 10336210 *Qty: 1 Pin $11.91
Location: 26 Prev | Next Part: 109002 *Qty: 2 Roller cage, 5th speed $37.07
Location: 27 Prev | Next Part: 113087 *Qty: 1 Ring $52.20

* Quantity shown indicates the number of pieces used in the diagram.
