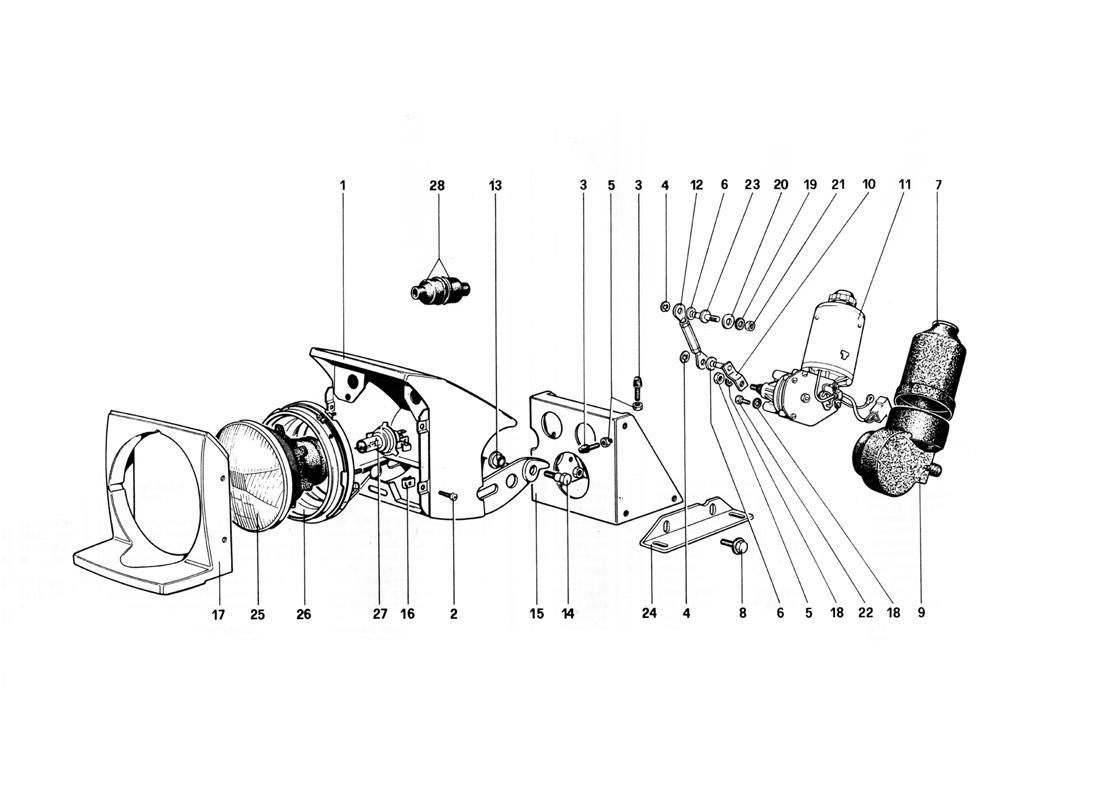

LIGHTS LIFTING DEVICE AND HEADLIGHTS

Go to Split View

LIGHTS LIFTING DEVICE AND HEADLIGHTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60570600 *Qty: 1 Housing R.H. headlamp $1,830.23
Location: 1 Prev | Next Part: 60570700 *Qty: 1 Housing L.H. headlamp Call
Location: 3 Prev | Next Part: 50087709 *Qty: 6 Rod $7.91
Location: 4 Prev | Next Part: 11087976 *Qty: 4 Seeger ring Superseded
Location: 5 Prev | Next Part: 15896211 *Qty: 8 Nut Superseded
Location: 6 Prev | Next Part: 30152607 *Qty: 4 Washer
For part no. 61326200
Superseded
Location: 7 Prev | Next Part: 60331402 *Qty: 2 Upper guard motor $39.53
Location: 8 Prev | Next Part: 13842471 *Qty: 16 Screw Superseded
Location: 9 Prev | Next Part: 60331303 *Qty: 1 Lower guard L.H. motor $22.02
Location: 9 Prev | Next Part: 60331204 *Qty: 1 Lower guard R.H. motor $22.02
Location: 10 Prev | Next Part: 40213902 *Qty: 2 Connecting rod 28 mm.
To car no. 52137
$32.21
Location: 11 Prev | Next Part: 60727600 *Qty: 1 Headlamp lifting motor L.H. Superseded
Location: 11 Prev | Next Part: 60727500 *Qty: 1 Headlamp lifting motor R.H. Superseded
Location: 12 Prev | Next Part: 60172400 *Qty: 2 Connenting rod
To car no. 52137
Call
Location: 12 Prev | Next Part: 61326200 *Qty: 2 Connecting rod
From car no. 52139
Call
Location: 13 Prev | Next Part: 50070507 *Qty: 4 Bushing $0.90
Location: 14 Prev | Next Part: 50070606 *Qty: 4 Folcrum pin $6.30
Location: 15 Prev | Next Part: 60648000 *Qty: 1 R.H. support $111.54
Location: 15 Prev | Next Part: 60648100 *Qty: 1 L.H. support $121.88
Location: 16 Prev | Next Part: 40136707 *Qty: 8 Clip $1.90
Location: 17 Prev | Next Part: 60570800 *Qty: 1 Covering R.H. Call
Location: 17 Prev | Next Part: 60570900 *Qty: 1 Covering L.H. Call
Location: 18 Prev | Next Part: 12605371 *Qty: 8 Washer $0.90
Location: 19 Prev | Next Part: 10615770 *Qty: 2 Washer Superseded
Location: 20 Prev | Next Part: 12638601 *Qty: 2 Washer $0.90
Location: 21 Prev | Next Part: 12164721 *Qty: 2 Nut Superseded
Location: 22 Prev | Next Part: 10902121 *Qty: 6 Screw Superseded
Location: 23 Prev | Next Part: 61325900 *Qty: 2 Pin
From car no. 52139
$29.88
Location: 23 Prev | Next Part: 60098803 *Qty: 2 Pin
For car no. 52317
$23.82
Location: 24 Prev | Next Part: 60581900 *Qty: 2 L.H. bracket $14.95
Location: 24 Prev | Next Part: 60581800 *Qty: 2 R.H. bracket $31.76
Location: 25 Prev | Next Part: 60865200 *Qty: 2 Headlamp with bulb
Valid for F
Call
Location: 25 Prev | Next Part: 60865100 *Qty: 2 Headlamp with bulb
RHD only
$84.98
Location: 25 Prev | Next Part: 60865000 *Qty: 2 Headlamp with bulb
RHD and F excluded
Call
Location: 26 Prev | Next Part: 60154804 *Qty: 2 Housing sealed beam $578.99
Location: 27 Prev | Next Part: 60122603 *Qty: 2 Bulb for headlamp
Valid for F
Superseded
Location: 27 Prev | Next Part: 60121704 *Qty: 2 Bulb for headlamp
F excluded
Superseded
Location: 28 Prev | Next Part: 60645100 *Qty: 4 Protection $1.58

* Quantity shown indicates the number of pieces used in the diagram.
