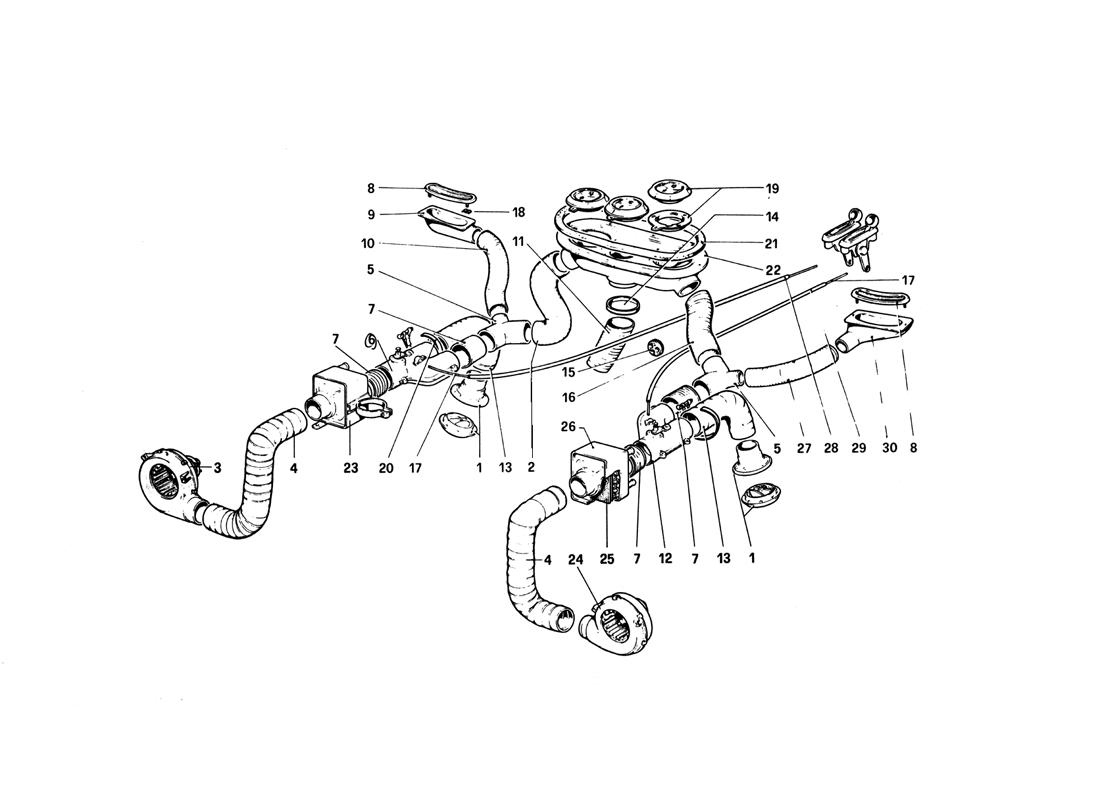

HEATING SYSTEM

Go to Split View

HEATING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60054400 *Qty: 2 Air outlet lower $149.19
Location: 2 Prev | Next Part: 60123700 *Qty: 1 Air duct $76.12
Location: 4 Prev | Next Part: 60034808 *Qty: 2 Air duct $165.52
Location: 5 Prev | Next Part: 60153608 *Qty: 2 3 -way union $18.45
Location: 6 Prev | Next Part: 60135001 *Qty: 1 R.H. switch $326.86
Location: 7 Prev | Next Part: 60124500 *Qty: 4 Air duct ? 80 Call
Location: 8 Prev | Next Part: 60041401 *Qty: 2 Air outlet side Call
Location: 9 Prev | Next Part: 60198405 *Qty: 1 Conveyor for RH outlet
RHD
$155.73
Location: 9 Prev | Next Part: 60055407 *Qty: 1 Conveyor for RH outlet
LHD
$90.59
Location: 10 Prev | Next Part: 60123809 *Qty: 1 Air duct ? 60 $20.30
Location: 11 Prev | Next Part: 60124005 *Qty: 1 A.C. duct $53.46
Location: 12 Prev | Next Part: 60138100 *Qty: 1 L.H. switch Call
Location: 13 Prev | Next Part: 60034907 *Qty: 2 Air duct $72.15
Location: 14 Prev | Next Part: 20143202 *Qty: 1 Plug Superseded
Location: 15 Prev | Next Part: 60714200 *Qty: 1 Fair lead $10.51
Location: 16 Prev | Next Part: 60035003 *Qty: 1 Air duct $72.15
Location: 17 Prev | Next Part: 40138802 *Qty: 2 Cable defroster control $3.97
Location: 18 Prev | Next Part: 60048501 *Qty: 8 Clip $0.95
Location: 19 Prev | Next Part: 60054301 *Qty: 3 Air outlet Call
Location: 20 Prev | Next Part: 10291490 *Qty: 2 Clamp $1.94
Location: 21 Prev | Next Part: 50091503 *Qty: 1 Gasket $4.21
Location: 22 Prev | Next Part: 20142709 *Qty: 1 Air diffuser Call
Location: 23 Prev | Next Part: 61721700 *Qty: 1 RH heater
Dal 1 - 11 - 84
$419.07
Location: 23 Prev | Next Part: 60151305 *Qty: 1 RH heater (LHD)
Up to 31 - 10 - 84
$426.08
Location: 23 Prev | Next Part: 60361409 *Qty: 1 RH heater (RHD)
Up to 31 - 10 - 85
$541.66
Location: 24 Prev | Next Part: 60658700 *Qty: 1 LH electric fan Call
Location: 25 Prev | Next Part: 60151909 *Qty: 2 Wire gauze inside heater Superseded
Location: 26 Prev | Next Part: 60208907 *Qty: 1 LH heater $671.23
Location: 27 Prev | Next Part: 60123908 *Qty: 1 Air duct ? 60 Call
Location: 28 Prev | Next Part: 60125901 *Qty: 1 Cable sheath RH defroster Superseded
Location: 29 Prev | Next Part: 60126000 *Qty: 1 Cable sheath LH defroster $24.06
Location: 30 Prev | Next Part: 60055407 *Qty: 1 Conveyor LH
RHD
$90.59
Location: 30 Prev | Next Part: 60055506 *Qty: 1 Conveyor for LH outlet
LHD
$98.98

* Quantity shown indicates the number of pieces used in the diagram.
