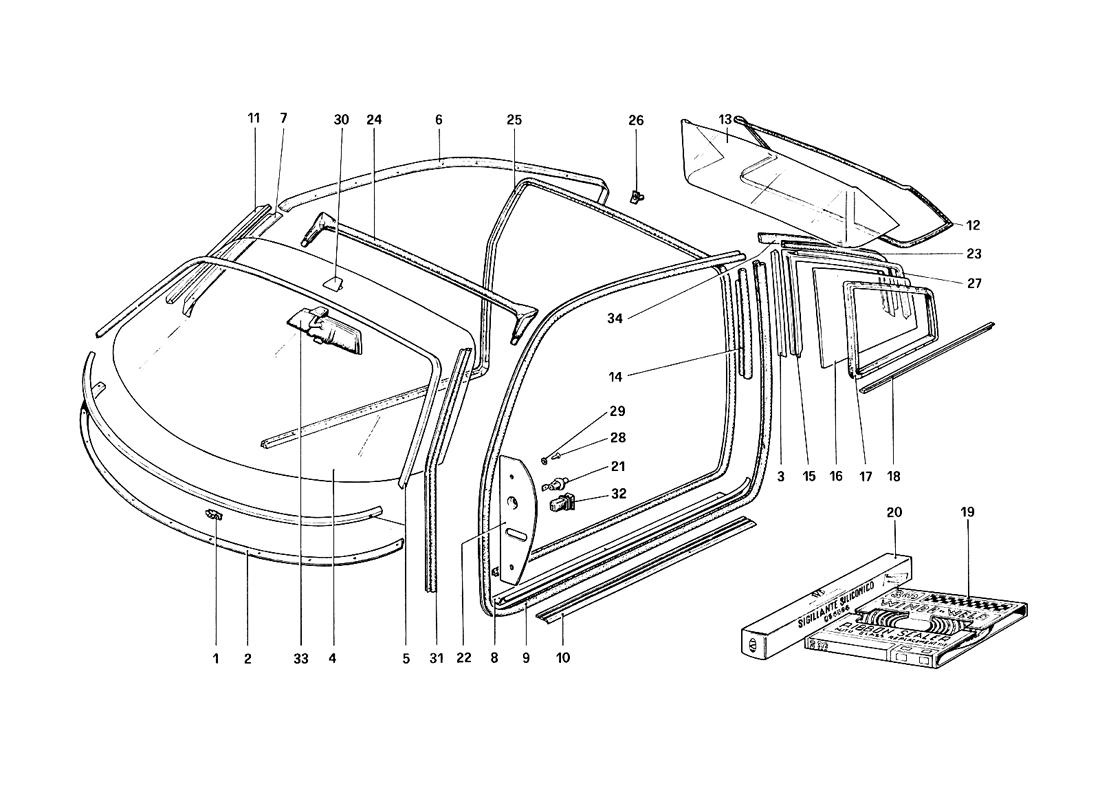

GLASSES

GLASSES

Location Part # Quantity* Description Price Add To Cart
1 40208209 15 Clip Unavailable
2 60121506 1 Rim on instrument plate $316.78
4 60019908 1 Windshield glass Unavailable
5 60295102 1 Windshield trim Unavailable
6 60248101 1 L.H. drip GTB Unavailable
6 60248002 1 R.H. drip GTB Unavailable
7 60872600 1 L.H. moulding, windshield GTS $250.60
7 60872500 1 R.H. moulding, windshield GTS $250.60
7 60269909 1 Front L.H. drip GTB $161.63
7 60269800 1 Front R.H. drip GTB $147.97
8 60099306 1 Lower moulding, L.H. door GTB $255.17
8 60099207 1 Lower moulding, R.H. door GTB $193.36
9 60298007 2 Weatherstrip door opening GTB Superseded
10 60116704 2 Moulding, door sill Unavailable
11 60375904 2 Weatherstrip for windshield post GTS Unavailable
12 60370301 1 Weatherstrip for rear window $865.23
13 60338704 1 Rear window glass $1,848.70
14 60313301 2 Gasket GTB Unavailable
15 60263704 1 L.H. frame GTB $775.71
15 60262904 1 R.H. frame GTB Unavailable
16 60162906 1 L.H. glass GTS $199.45
16 60162807 1 R.H. glass GTS $156.01
16 60264801 1 R.H. glass GTB Unavailable
16 60264900 1 L.H. glass GTB Unavailable
17 60058302 2 Gasket GTB $506.67
17 60522800 1 Gasket, R.H. GTS $75.86
17 60522900 1 Gasket, L.H. GTS $75.86
18 60267903 1 Lower moulding, L.H. glass GTB $235.80
18 60267804 1 Lower moulding, R.H. glass GTB $238.67
19 60089505 1 Windo-Weld sealant for windshield Superseded
19 360508611 1 Windo-Weld sealant for windshield Unavailable
20 60156106 1 Cartridge of silicone sealant Unavailable
21 60054509 2 Switch Unavailable
22 60368701 1 Guard for L.H. hinge GTS $92.20
22 60370103 1 Guard for R.H. hinge GTS $81.16
22 60320603 1 Guard for R.H. hinge GTB $40.09
22 60368602 1 Guard for L.H. hinge GTB $83.62
23 61762400 2 Gasket GTB $14.66
24 60607900 1 Gasket GTS $746.39
25 61705500 1 Gasket GTS
On exhaustion 60433505
$180.59
25 60433505 1 Gasket GTS up to exhaustion Superseded
26 40065005 1 Grommetfor R.H. frame GTB Unavailable
27 60517000 1 Gasket for L.H. frame GTB Unavailable
27 60516900 1 Gasket for R.H. frame GTB $72.63
28 20297800 4 Screw for hinge guard $1.22
29 10615371 4 Washer Unavailable
30 60715400 1 Adhesive for rear mirror Superseded
31 60609100 2 Weatherstrip, door opening GTS Unavailable
32 60801500 2 Protection for switch Unavailable
33 60032703 1 Inside rear view mirror Unavailable
34 60762700 2 Gasket GTB Superseded

* Quantity shown indicates the number of pieces used in the diagram.
