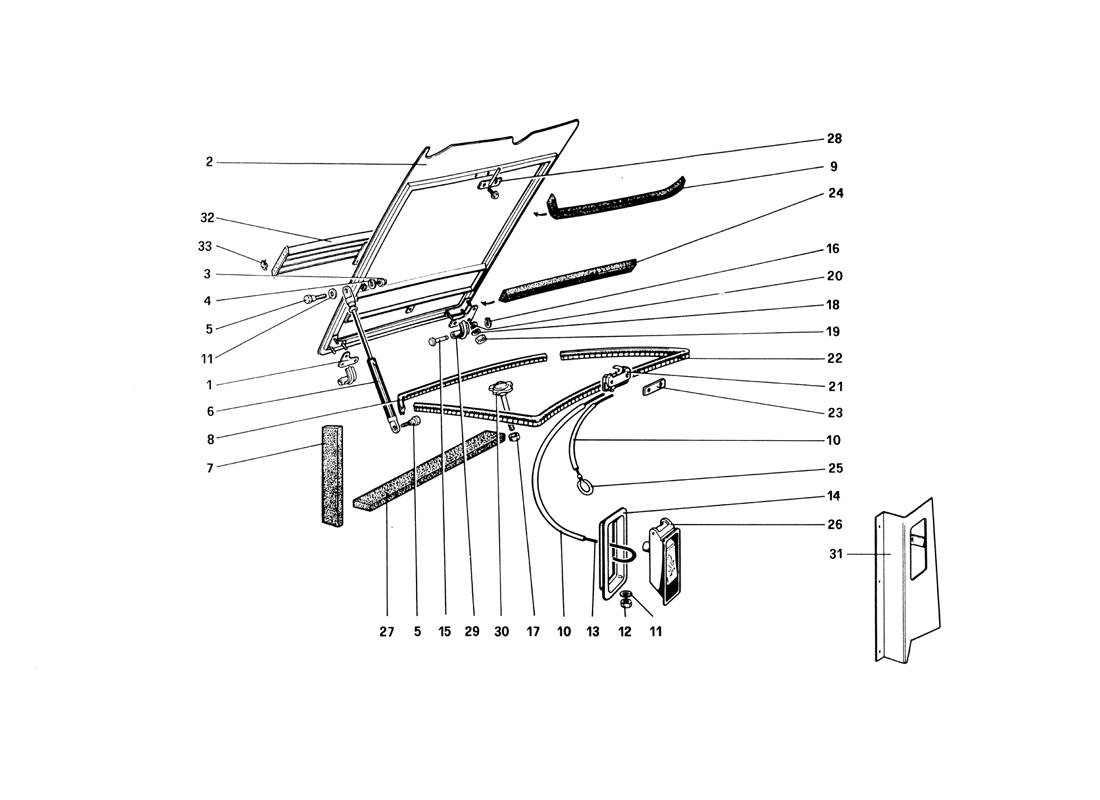

FRONT COMPARTMENT LID

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60275401 *Qty: 2 Hinge plate Superseded
Location: 2 Prev | Next Part: 61109700 *Qty: 1 Bonnet LHD $2,757.38
Location: 3 Prev | Next Part: 12574111 *Qty: 1 Nut Superseded
Location: 4 Prev | Next Part: 12638101 *Qty: 1 Washer Superseded
Location: 5 Prev | Next Part: 40161903 *Qty: 2 Pin $18.00
Location: 6 Prev | Next Part: 60118007 *Qty: 1 Support Superseded
Location: 7 Prev | Next Part: 60250701 *Qty: 2 Side gasket radiator
Up to exhaustion
Superseded
Location: 7 Prev | Next Part: 60773500 *Qty: 2 Side gasket radiator
On exhaustion no. 60250701
$70.24
Location: 8 Prev | Next Part: 60428901 *Qty: 1 Gasket Call
Location: 9 Prev | Next Part: 60422904 *Qty: 1 Gasket Call
Location: 10 Prev | Next Part: 60126604 *Qty: 2 Sheath $10.51
Location: 11 Prev | Next Part: 12638101 *Qty: 2 Washer Superseded
Location: 12 Prev | Next Part: 61041500 *Qty: 1 Insulation $169.63
Location: 12 Prev | Next Part: 15896411 *Qty: 1 Nut Superseded
Location: 13 Prev | Next Part: 60126505 *Qty: 1 Cable Superseded
Location: 14 Prev | Next Part: 60765500 *Qty: 1 Flange GTB Call
Location: 15 Prev | Next Part: 60061504 *Qty: 2 Pin Superseded
Location: 16 Prev | Next Part: 60962400 *Qty: 2 Seeger Superseded
Location: 17 Prev | Next Part: 61609500 *Qty: 1 Spacer
On exhaustion n. 60553000
Call
Location: 17 Prev | Next Part: 60553000 *Qty: 1 Spacer
Up to exhaustion
Superseded
Location: 18 Prev | Next Part: 10516673 *Qty: 6 Washer Superseded
Location: 19 Prev | Next Part: 16100811 *Qty: 6 Nut Superseded
Location: 20 Prev | Next Part: 12646701 *Qty: 6 Washer Superseded
Location: 21 Prev | Next Part: 60277407 *Qty: 1 Lock Call
Location: 22 Prev | Next Part: 60388204 *Qty: 1 Gasket Call
Location: 23 Prev | Next Part: 60276508 *Qty: 1 Place $12.44
Location: 24 Prev | Next Part: 40150104 *Qty: 1 Gasket Call
Location: 25 Prev | Next Part: 60126703 *Qty: 1 Safety cable $6.11
Location: 26 Prev | Next Part: 61756700 *Qty: 1 Handle bonnet Superseded
Location: 27 Prev | Next Part: 40231805 *Qty: 1 Gasket
Up to exhaustion
Superseded
Location: 27 Prev | Next Part: 60773400 *Qty: 1 Gasket
On exhaustion n. 40231 805
$74.54
Location: 28 Prev | Next Part: 61090400 *Qty: 1 Pin $25.58
Location: 29 Prev | Next Part: 60275302 *Qty: 2 Hing arm $26.94
Location: 30 Prev | Next Part: 60276300 *Qty: 1 Wind nut
Up to exhaustion
Superseded
Location: 30 Prev | Next Part: 61609400 *Qty: 1 Wind nut
On exhaustion n. 60276300
$97.00
Location: 30 Prev | Next Part: 61609400R *Qty: 1 Wind nut
On exhaustion n. 60276300
$97.00
Location: 31 Prev | Next Part: 60640100 *Qty: 1 Handle support GTS- RHD $40.29
Location: 31 Prev | Next Part: 60640200 *Qty: 1 Handle support GTS - LHD $40.07
Location: 32 Prev | Next Part: 61672600 *Qty: 1 Grill
On exhaustion n. 61109800
$751.98
Location: 32 Prev | Next Part: 61109800 *Qty: 1 Grill
Up to exhaustion
Superseded
Location: 33 Prev | Next Part: 60679600 *Qty: 1 Clip $0.99

* Quantity shown indicates the number of pieces used in the diagram.
