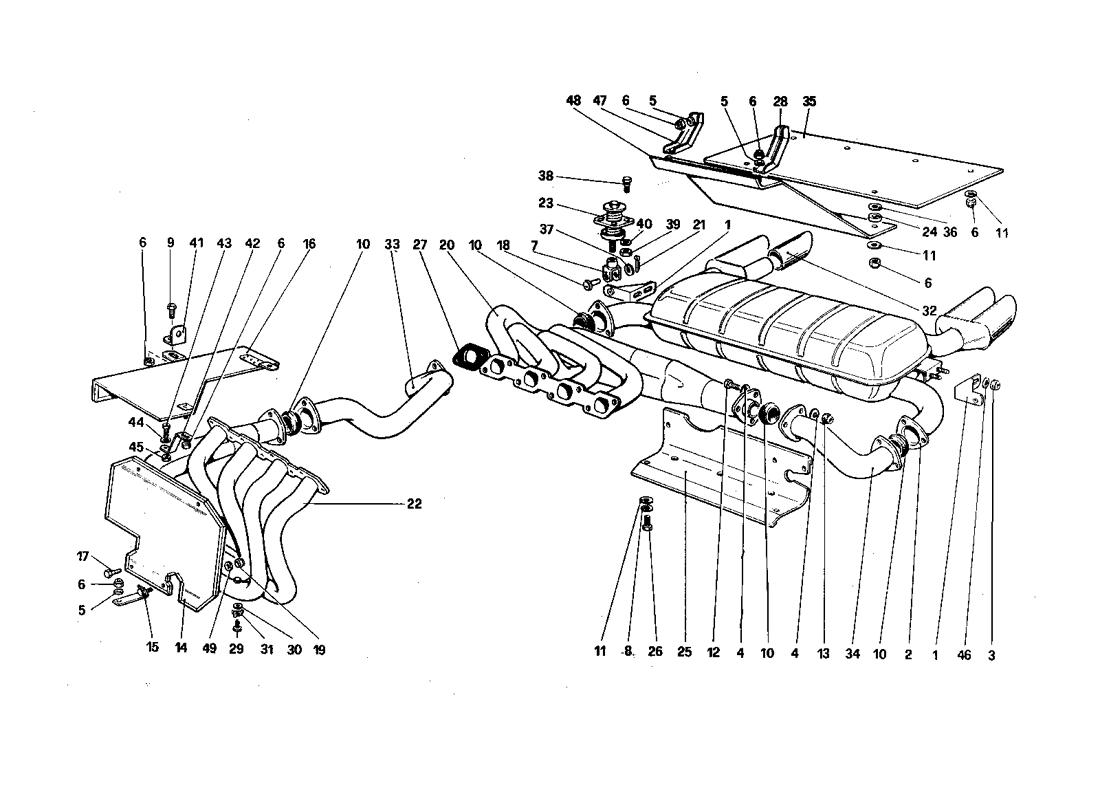

EXHAUST SYSTEM

Go to Split View

EXHAUST SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 108290 *Qty: 2 Bracket Call
Location: 2 Prev | Next Part: 118353 *Qty: 1 Exhaust silencer
For CH use no. 120703
Call
Location: 3 Prev | Next Part: 114748 *Qty: 4 Nut $0.90
Location: 4 Prev | Next Part: 10519601 *Qty: 24 Washer Superseded
Location: 5 Prev | Next Part: 12643701 *Qty: 10 Washer Superseded
Location: 6 Prev | Next Part: 116416 *Qty: 10 Nut $1.06
Location: 7 Prev | Next Part: 108257 *Qty: 2 Fork on buffer $131.35
Location: 8 Prev | Next Part: 106850 *Qty: 14 Washer Superseded
Location: 9 Prev | Next Part: 10902121 *Qty: 3 Screw Superseded
Location: 10 Prev | Next Part: ------ *Qty: 4 Gasket Call
Location: 11 Prev | Next Part: 106744 *Qty: 10 Washer $0.90
Location: 12 Prev | Next Part: 119632 *Qty: 12 Screw $4.08
Location: 13 Prev | Next Part: 114748 *Qty: 12 Nut $0.90
Location: 14 Prev | Next Part: 118632 *Qty: 1 Protection plate $299.96
Location: 15 Prev | Next Part: 118786 *Qty: 1 Bracket $9.05
Location: 16 Prev | Next Part: 118612 *Qty: 1 Protection plate $241.12
Location: 17 Prev | Next Part: 10902121 *Qty: 1 Screw Superseded
Location: 18 Prev | Next Part: 10033411 *Qty: 2 Pin Superseded
Location: 19 Prev | Next Part: 15896211 *Qty: 7 Nut Superseded
Location: 20 Prev | Next Part: 118156 *Qty: 1 Rear exhaust manifold
For CH use no. 120640
$2,694.46
Location: 21 Prev | Next Part: 10796401 *Qty: 2 Split Superseded
Location: 22 Prev | Next Part: 118155 *Qty: 1 Front exhaust manifold
For CH use no. 120639
$2,448.12
Location: 23 Prev | Next Part: 106052 *Qty: 2 Buffer for supporting silencer $133.13
Location: 24 Prev | Next Part: 119201 *Qty: 2 Spacer $6.57
Location: 25 Prev | Next Part: 118773 *Qty: 1 Lower conveyor for air to manifold Call
Location: 26 Prev | Next Part: 10902021 *Qty: 4 Screw Superseded
Location: 27 Prev | Next Part: 111532 *Qty: 8 Gasket Superseded
Location: 28 Prev | Next Part: 118603 *Qty: 1 Bracket $16.07
Location: 29 Prev | Next Part: 110860 *Qty: 8 Plug Call
Location: 30 Prev | Next Part: 10298460 *Qty: 8 Washer $0.90
Location: 31 Prev | Next Part: 14198901 *Qty: 8 Plate $6.13
Location: 32 Prev | Next Part: 118774 *Qty: 4 Terminal $72.90
Location: 33 Prev | Next Part: 118157 *Qty: 1 Intermediate pipe from front manifold to muffler $983.48
Location: 34 Prev | Next Part: 118158 *Qty: 1 Intermediate pipe from rear manifold to muffler Superseded
Location: 35 Prev | Next Part: 119200 *Qty: 1 Protection plate $182.25
Location: 36 Prev | Next Part: 105924 *Qty: 2 Washer spacer Superseded
Location: 37 Prev | Next Part: 103167 *Qty: 2 Washer $4.92
Location: 38 Prev | Next Part: 10977621 *Qty: 8 Screw Superseded
Location: 39 Prev | Next Part: 15896411 *Qty: 8 Nut Superseded
Location: 40 Prev | Next Part: 106849 *Qty: 8 Washer Superseded
Location: 41 Prev | Next Part: 118618 *Qty: 1 Bracket $7.69
Location: 42 Prev | Next Part: 118619 *Qty: 1 Bracket $18.56
Location: 43 Prev | Next Part: 16043421 *Qty: 1 Bolt Superseded
Location: 44 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 45 Prev | Next Part: 16100811 *Qty: 1 Nut Superseded
Location: 46 Prev | Next Part: 10519601 *Qty: 4 Washer Superseded
Location: 47 Prev | Next Part: 118602 *Qty: 2 Bracket $10.20
Location: 48 Prev | Next Part: 118495 *Qty: 1 Protection plate $306.76
Location: 49 Prev | Next Part: 12643701 *Qty: 4 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
