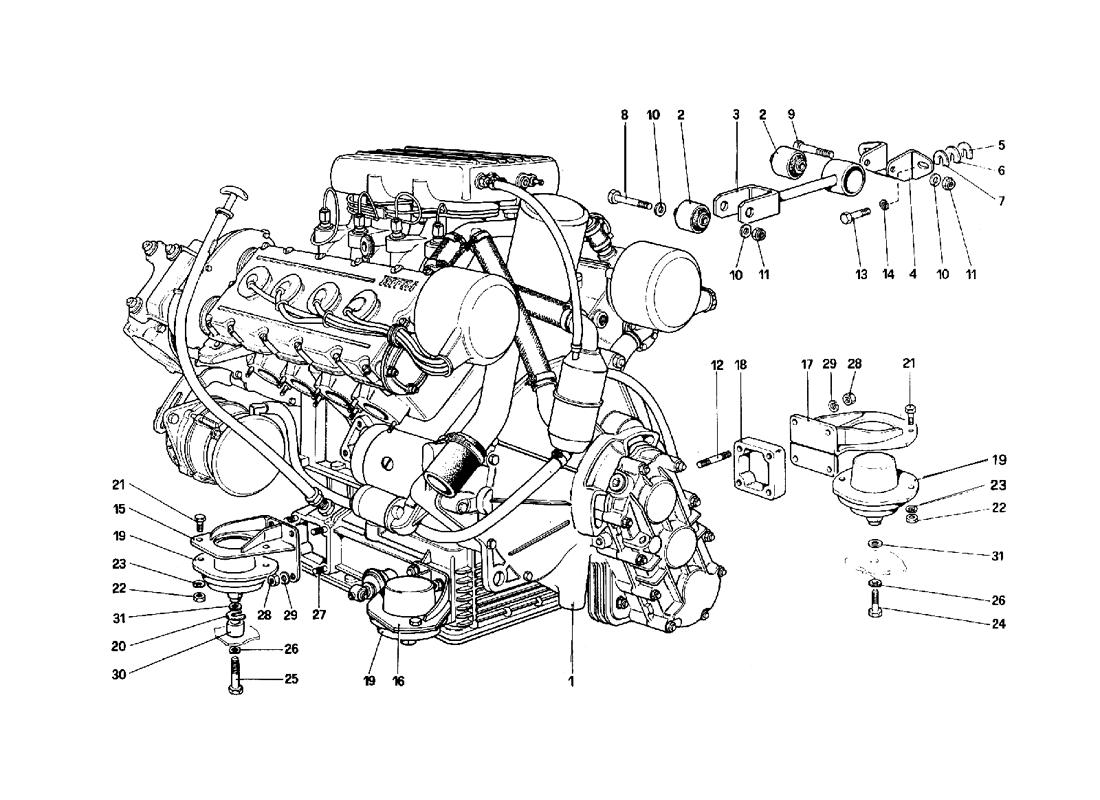

ENGINE - GEARBOX AND SUPPORTS

Go to Split View

ENGINE - GEARBOX AND SUPPORTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: - *Qty: 1 Propelling unit with gearbox and differential
See table A for spare assembly units
Call
Location: 2 Prev | Next Part: 106418 *Qty: 2 Buffer for link $80.28
Location: 3 Prev | Next Part: 111888 *Qty: 1 Reaction tie rod $74.05
Location: 4 Prev | Next Part: 106469 *Qty: 1 Tie rod support $16.29
Location: 5 Prev | Next Part: 106470 *Qty: 1 Shim 1mm
Posible mounting
$9.84
Location: 6 Prev | Next Part: 106471 *Qty: 1 Shim 2mm
Possible mounting
$10.77
Location: 7 Prev | Next Part: 106472 *Qty: 2 Shim $12.64
Location: 8 Prev | Next Part: 15541321 *Qty: 1 Bolt $1.34
Location: 9 Prev | Next Part: 15541321 *Qty: 1 Bolt $1.34
Location: 10 Prev | Next Part: 13550521 *Qty: 2 Washer $0.90
Location: 11 Prev | Next Part: 16105111 *Qty: 2 Nut Superseded
Location: 12 Prev | Next Part: 13450021 *Qty: 8 Rear Nut $0.90
Location: 13 Prev | Next Part: 13830521 *Qty: 2 Bolt $0.91
Location: 14 Prev | Next Part: 12638621 *Qty: 2 Washer $0.90
Location: 15 Prev | Next Part: 107528 *Qty: 1 Rear right support $67.92
Location: 15 Prev | Next Part: 107529 *Qty: 1 Front right support $77.42
Location: 16 Prev | Next Part: 115712 *Qty: 1 Front left support $98.03
Location: 17 Prev | Next Part: 115713 *Qty: 1 Rear left support $98.03
Location: 18 Prev | Next Part: 107530 *Qty: 2 Spacer for rear supports $256.38
Location: 19 Prev | Next Part: 106034 *Qty: 4 VIBRACHIOC front pad Superseded
Location: 20 Prev | Next Part: 106029 *Qty: 1 Shim
Possible mounting
$7.32
Location: 21 Prev | Next Part: 16043421 *Qty: 8 Bolt Superseded
Location: 22 Prev | Next Part: 16100811 *Qty: 8 Nut Superseded
Location: 23 Prev | Next Part: 106852 *Qty: 8 Washer Superseded
Location: 24 Prev | Next Part: 106527 *Qty: 2 Screw for rear pads $4.75
Location: 25 Prev | Next Part: 105799 *Qty: 2 screw for front pads Call
Location: 26 Prev | Next Part: 106854 *Qty: 4 Washer Superseded
Location: 27 Prev | Next Part: 13449321 *Qty: 8 Front stud $1.32
Location: 28 Prev | Next Part: 12164711 *Qty: 16 Nut Superseded
Location: 29 Prev | Next Part: 106853 *Qty: 16 Washer Superseded
Location: 30 Prev | Next Part: 107424 *Qty: 2 Spacer for front pads
Up to 31 - 5 - 83
Call
Location: 30 Prev | Next Part: 120978 *Qty: 2 Spacer for front pads
From 1 - 6 - 83
$20.51
Location: 31 Prev | Next Part: 12646901 *Qty: 6 Shim $1.11
Location: 32 Prev | Next Part: 111794 *Qty: 2 Spacer for rear pads $15.16

* Quantity shown indicates the number of pieces used in the diagram.
