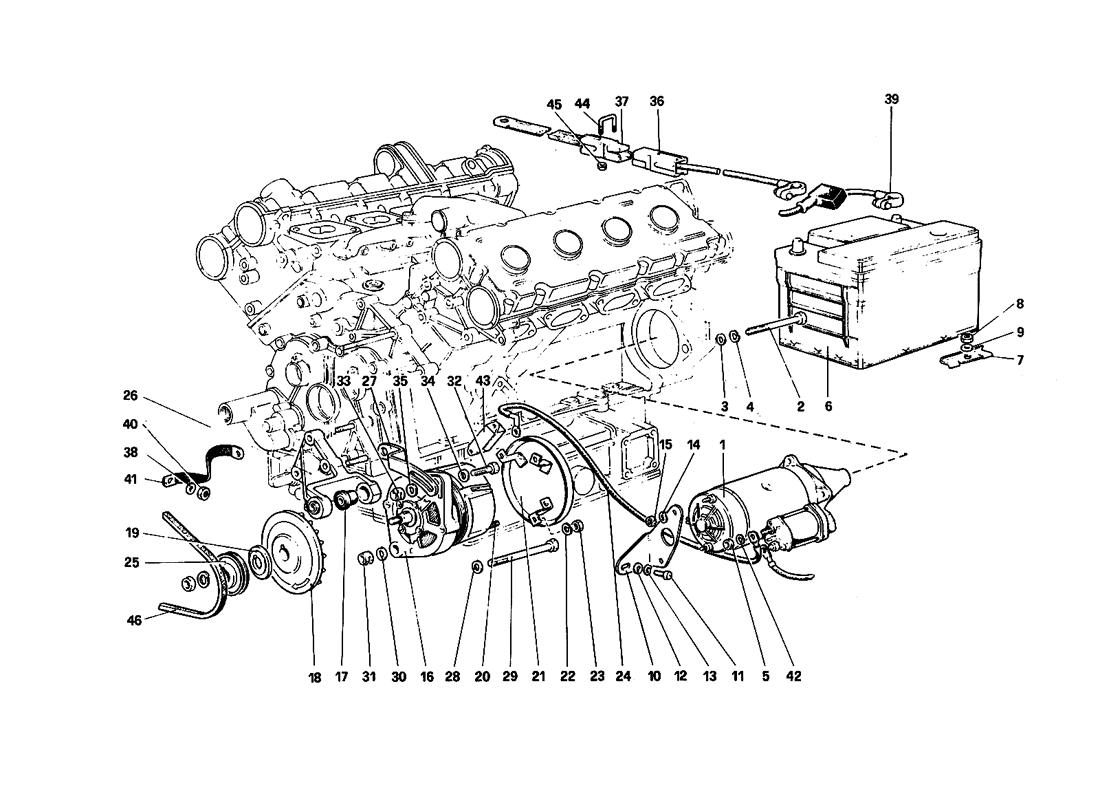

ELECTRIC GENERATING SYSTEM (ENGINE WITH SINGLE BELT)

Go to Split View

ELECTRIC GENERATING SYSTEM (ENGINE WITH SINGLE BELT)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 106966 *Qty: 1 Starter motor $2,282.36
Location: 1 Prev | Next Part: 120967 *Qty: 1 Starter motor (In alternative) $2,022.79
Location: 3 Prev | Next Part: 11198071 *Qty: 3 Washer Superseded
Location: 4 Prev | Next Part: 10519621 *Qty: 3 Washer $0.90
Location: 5 Prev | Next Part: 16100811 *Qty: 1 Nut
Only for 106966
Superseded
Location: 6 Prev | Next Part: 118060 *Qty: 1 Battery 12V 66AH 300A
Only Tropic no. 111354
Superseded
Location: 7 Prev | Next Part: 106525 *Qty: 1 Bracket $67.00
Location: 8 Prev | Next Part: 16100811 *Qty: 1 Nut Superseded
Location: 9 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 10 Prev | Next Part: 107129 *Qty: 1 Support bracket
Only for 106966
$56.81
Location: 11 Prev | Next Part: 15970721 *Qty: 1 Bolt
Only for 136966
$0.90
Location: 12 Prev | Next Part: 105391 *Qty: 1 Washer
Only for 106966
$3.06
Location: 13 Prev | Next Part: 106853 *Qty: 1 Washer
Only for 106966
Superseded
Location: 14 Prev | Next Part: 106850 *Qty: 2 Washer
Only for 196966
Superseded
Location: 15 Prev | Next Part: 15896211 *Qty: 2 Nut
Only for 106966
Superseded
Location: 16 Prev | Next Part: 117967 *Qty: 1 Alternator BOSCH 80A Superseded
Location: 17 Prev | Next Part: 117969 *Qty: 2 Elastic bush Call
Location: 18 Prev | Next Part: 117968 *Qty: 1 Fan $66.34
Location: 19 Prev | Next Part: 114305 *Qty: 1 Washer $2.72
Location: 20 Prev | Next Part: 11499921 *Qty: 3 Stud Superseded
Location: 21 Prev | Next Part: 117978 *Qty: 1 Protection plate $44.37
Location: 22 Prev | Next Part: 106850 *Qty: 3 Washer Superseded
Location: 23 Prev | Next Part: 15896221 *Qty: 3 Nut Superseded
Location: 24 Prev | Next Part: 118078 *Qty: 1 Generator connecting cables $311.28
Location: 25 Prev | Next Part: 117938 *Qty: 1 Pulley
Assembly with single belt
$187.00
Location: 26 Prev | Next Part: 117924 *Qty: 1 Support for alternator $199.68
Location: 27 Prev | Next Part: 117937 *Qty: 1 Plate for regulation $34.65
Location: 28 Prev | Next Part: 13550421 *Qty: 1 Washer $0.90
Location: 29 Prev | Next Part: 15972221 *Qty: 1 Bolt $2.72
Location: 30 Prev | Next Part: 12601471 *Qty: 1 Washer Superseded
Location: 31 Prev | Next Part: 117702 *Qty: 1 Nut Superseded
Location: 32 Prev | Next Part: 11343821 *Qty: 1 Screw $0.90
Location: 33 Prev | Next Part: 117702 *Qty: 1 Nut Superseded
Location: 34 Prev | Next Part: 13550421 *Qty: 1 Washer $0.90
Location: 35 Prev | Next Part: 105391 *Qty: 1 Washer $3.06
Location: 36 Prev | Next Part: 115660 *Qty: 1 Cable from battery to battery switch $168.59
Location: 37 Prev | Next Part: 115667 *Qty: 1 Copper braid from battery terminal to earth - chassis Call
Location: 38 Prev | Next Part: 10615671 *Qty: 1 Washer $0.90
Location: 39 Prev | Next Part: 120082 *Qty: 1 Cable from battery to starter $112.52
Location: 40 Prev | Next Part: 16100821 *Qty: 1 Nut $3.46
Location: 41 Prev | Next Part: 115668 *Qty: 1 Earth cabls for engine Superseded
Location: 42 Prev | Next Part: 10516670 *Qty: 1 Washer
Only for 136966
$0.90
Location: 43 Prev | Next Part: 107396 *Qty: 1 Voltage regulator $92.13
Location: 44 Prev | Next Part: 116591 *Qty: 1 Fixing plate $9.51
Location: 45 Prev | Next Part: 12574011 *Qty: 1 Nut Superseded
Location: 46 Prev | Next Part: 107971 *Qty: 1 Control belt for pump and alternator $42.04

* Quantity shown indicates the number of pieces used in the diagram.
