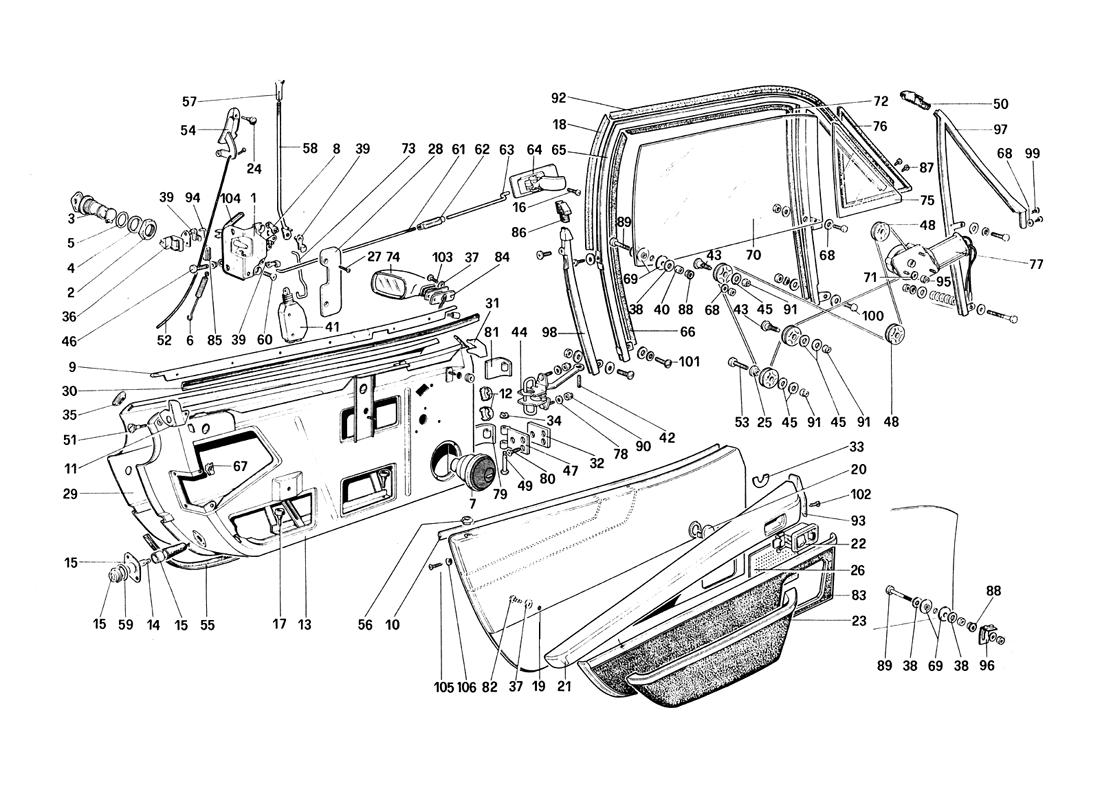

DOORS

Go to Split View

DOORS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 20170908 *Qty: 1 Door lock, L.H. Call
Location: 1 Prev | Next Part: 20170809 *Qty: 1 Door lock, R.H. Call
Location: 3 Prev | Next Part: 20035606 *Qty: 1 Block, R.H. door lock Superseded
Location: 3 Prev | Next Part: 20035705 *Qty: 1 Block, L.H. door lock Superseded
Location: 4 Prev | Next Part: 20035804 *Qty: 2 Spacer $4.21
Location: 5 Prev | Next Part: 20181103 *Qty: 2 Gasket $4.55
Location: 6 Prev | Next Part: 60046000 *Qty: 2 Return spring, handle $3.86
Location: 7 Prev | Next Part: 61717800 *Qty: 2 Loud-speaker-On exhaustion 60870900 $123.97
Location: 7 Prev | Next Part: 60507900 *Qty: 2 Loud -speaker - Up to 31-10-83 Call
Location: 7 Prev | Next Part: 60870900 *Qty: 2 Loud - speaker - To exhaustion Call
Location: 8 Prev | Next Part: 60813500 *Qty: 2 Clip Superseded
Location: 9 Prev | Next Part: 60415106 *Qty: 1 R.H. moulding Superseded
Location: 9 Prev | Next Part: 61141600 *Qty: 1 Moulding L.H. armrest
LHD up to 30 6-83-RHO up to 30-9-8:
$24.27
Location: 9 Prev | Next Part: 61269700 *Qty: 11 Moulding L.H. armrest
LHD from 110 83 RHD from 1-10-83
$50.42
Location: 9 Prev | Next Part: 60415205 *Qty: 1 L.H. moulding Superseded
Location: 10 Prev | Next Part: 60136207 *Qty: 2 Inner gasket Superseded
Location: 11 Prev | Next Part: 60269305 *Qty: 1 Rear L.H. moulding, GTB $27.55
Location: 11 Prev | Next Part: 60601900 *Qty: 1 Rear R.H. moulding, GTS $56.12
Location: 11 Prev | Next Part: 60269206 *Qty: 1 Rear R.H. moulding, GTB $27.55
Location: 11 Prev | Next Part: 60602000 *Qty: 1 Rear L.H. moulding, GTS $18.45
Location: 12 Prev | Next Part: 40127409 *Qty: 3 Plug $6.30
Location: 13 Prev | Next Part: 61443900 *Qty: 1 R. H. door (*) GTB
From 1-1 1-83 RHD
Call
Location: 13 Prev | Next Part: 61272700 *Qty: 1 L.H. door (*) GTS
Up to 30 - 6 - 83
Call
Location: 13 Prev | Next Part: 61271700 *Qty: 1 L.H. door (*) GTS
Up to 31-10-83
$1,819.89
Location: 13 Prev | Next Part: 61200500 *Qty: 1 L.H. door (*)GTB
Up to 31-10-83 LHD
Call
Location: 13 Prev | Next Part: 61415900 *Qty: 1 L.H. door (*) GTS
From 1-1 1-83
Call
Location: 13 Prev | Next Part: 61200900 *Qty: 1 L.H. door (*) GTB
Up to 31-10-83 RHD
Call
Location: 13 Prev | Next Part: 61419600 *Qty: 1 R.H.door(*) GTB
From 1-11-83 LHD
$3,379.47
Location: 13 Prev | Next Part: 61419700 *Qty: 1 L.H. door (*) GTB
From 1-1 1-83 LHD
$3,803.21
Location: 13 Prev | Next Part: 61200800 *Qty: 1 R.H. door (*)GTB
Up to 31-10-83 RHD
Call
Location: 13 Prev | Next Part: 61444000 *Qty: 1 L.H. door (*) GTB
From 1-1 1-83 RHD
Call
Location: 13 Prev | Next Part: 61415800 *Qty: 1 R.H. door (*) GTS
From 1-1 1-83
Call
Location: 13 Prev | Next Part: 61271600 *Qty: 1 R.H. door (*) GTS
Up to 31-10-83
$1,819.89
Location: 13 Prev | Next Part: 61272600 *Qty: 1 R.H. door (*) GTS
Up to 30-6-83
Call
Location: 13 Prev | Next Part: 61200400 *Qty: 1 R.H. door (*) GTB
Up to 31-10-83 LHD
Call
Location: 14 Prev | Next Part: 101525 *Qty: 2 Lamp Call
Location: 15 Prev | Next Part: 60291200 *Qty: 2 Open- door marker light Call
Location: 16 Prev | Next Part: 15903902 *Qty: 2 Screw $0.90
Location: 17 Prev | Next Part: 40195703 *Qty: 4 Limit block for glass Call
Location: 18 Prev | Next Part: 60278405 *Qty: 2 Gasket GTB $101.40
Location: 19 Prev | Next Part: 60746600 *Qty: 1 R.H. covering $776.28
Location: 19 Prev | Next Part: 60763800 *Qty: 1 R.H. covered panel
Up to 31-1 0-83
Call
Location: 19 Prev | Next Part: 60746700 *Qty: 1 L.H. covering $776.30
Location: 19 Prev | Next Part: 61428400 *Qty: 1 R.H. covered panel
Up to 1-11-83
$1,030.30
Location: 19 Prev | Next Part: 61428500 *Qty: 1 L.H. covered panel
From 1-11-83
$1,030.30
Location: 19 Prev | Next Part: 60763900 *Qty: 1 L.H. covered panel
Up to 31-10-83
$73.79
Location: 20 Prev | Next Part: 30063100 *Qty: 2 Plug Call
Location: 21 Prev | Next Part: 60067402 *Qty: 1 R.H. covering $91.99
Location: 21 Prev | Next Part: 60067501 *Qty: 1 L.H. covering $95.96
Location: 21 Prev | Next Part: 60760700 *Qty: 1 Armrest R.H. with covering
Up to 30-6-83 LHD
Call
Location: 21 Prev | Next Part: 61269400 *Qty: 1 Armrest R.H. with covering
From 1-7-83 LHD
$635.03
Location: 21 Prev | Next Part: 61270600 *Qty: 1 Armrest R.H. with covering
From 1-10-83 RHD
$492.62
Location: 21 Prev | Next Part: 61055400 *Qty: 1 Armrest R.H. with covering
Up to 30-9-83 RHD
$678.22
Location: 21 Prev | Next Part: 61269500 *Qty: 1 Armrest L.H. with covering
From T-7-B3 LHD
$635.03
Location: 21 Prev | Next Part: 61055200 *Qty: 1 Armrest L.H. with covering
Up to 30-6-83 LHD
$678.22
Location: 21 Prev | Next Part: 60760300 *Qty: 1 Armrest L.H. with covering
Up to 30-9-83 RHD
Call
Location: 21 Prev | Next Part: 61270700 *Qty: 1 Armrest L H. with covering
From 1-10 83 RHD
$492.62
Location: 22 Prev | Next Part: 61111300 *Qty: 1 Control switch for outside mirror Call
Location: 23 Prev | Next Part: 60753000 *Qty: 1 Covering, R.H. $84.06
Location: 23 Prev | Next Part: 60753100 *Qty: 1 Covering, L.H. $84.06
Location: 23 Prev | Next Part: 60803800 *Qty: 1 Pocket, R.H. with covering $678.22
Location: 23 Prev | Next Part: 60803900 *Qty: 1 Pocket, L.H. with covering $678.22
Location: 24 Prev | Next Part: 61083900 *Qty: 2 Rubber GTS $0.90
Location: 24 Prev | Next Part: 20043300 *Qty: 2 Rubber GTB Call
Location: 25 Prev | Next Part: 60441607 *Qty: 4 Bushing $20.30
Location: 26 Prev | Next Part: 61430600 *Qty: 1 Moulding L.H.
From 1-11-83
Superseded
Location: 26 Prev | Next Part: 60745500 *Qty: 1 Moulding R.H.
Up to 31-10-83
$153.85
Location: 26 Prev | Next Part: 61173600 *Qty: 1 Moulding R.H.
From 1-11-83
Superseded
Location: 26 Prev | Next Part: 60745600 *Qty: 1 Moulding L.H.
Up to 31-10-83
$153.85
Location: 27 Prev | Next Part: 15908502 *Qty: 4 Screw Icr lock moulding $0.90
Location: 28 Prev | Next Part: 60304805 *Qty: 1 Moulding on R.H. lock Call
Location: 28 Prev | Next Part: 60304904 *Qty: 1 Moulding on L.H. lock Call
Location: 29 Prev | Next Part: 61201700 *Qty: 1 Right outer covering GTB - RHD Call
Location: 29 Prev | Next Part: 61201900 *Qty: 1 Right outer covering GTS - RHD Call
Location: 29 Prev | Next Part: 61201600 *Qty: 1 Left outer covering GTS - LHD Call
Location: 29 Prev | Next Part: 61201800 *Qty: 1 Left outer covering GTB - RHD Call
Location: 29 Prev | Next Part: 61201400 *Qty: 1 Left outer coveting GTB - LHD Call
Location: 29 Prev | Next Part: 61201500 *Qty: 1 Right outer covering GTS - LHD Call
Location: 29 Prev | Next Part: 61202000 *Qty: 1 Lelt outer covering GTS - RHD Call
Location: 29 Prev | Next Part: 61201300 *Qty: 1 Right outer covering GTB - LHD Call
Location: 30 Prev | Next Part: 60827600 *Qty: 1 Outsider gasket, L.H. Call
Location: 30 Prev | Next Part: 60827500 *Qty: 1 Outsider gasket, R.H. Call
Location: 31 Prev | Next Part: 60269107 *Qty: 1 Front L.H. moulding GTB $22.42
Location: 31 Prev | Next Part: 60269008 *Qty: 1 Front R.H. moulding GTB Call
Location: 31 Prev | Next Part: 60602200 *Qty: 1 Front L.H. moulding GTS $17.97
Location: 31 Prev | Next Part: 60602100 *Qty: 1 Front R.H. moulding GTS $15.40
Location: 32 Prev | Next Part: 60269404 *Qty: 4 Fixing plate for fixed hinge $21.01
Location: 33 Prev | Next Part: 60133906 *Qty: 1 L.H. moulding for inner handle Call
Location: 33 Prev | Next Part: 60138807 *Qty: 1 R.H. moulding for inner handle $75.19
Location: 34 Prev | Next Part: 11065775 *Qty: 2 Seeger ring Call
Location: 35 Prev | Next Part: 60567000 *Qty: 2 Gasket, handle seat Superseded
Location: 36 Prev | Next Part: 60606600 *Qty: 1 L.H. block $3.04
Location: 36 Prev | Next Part: 60606500 *Qty: 1 R.H. block $2.80
Location: 37 Prev | Next Part: 106849 *Qty: 6 Washer Superseded
Location: 38 Prev | Next Part: 12640601 *Qty: 8 Washer Superseded
Location: 39 Prev | Next Part: 40063208 *Qty: 8 Clip, lower safety rod Call
Location: 40 Prev | Next Part: 60441409 *Qty: 4 Spacer $4.66
Location: 41 Prev | Next Part: 61329500 *Qty: 1 Locking device, L.H. door Call
Location: 41 Prev | Next Part: 61329400 *Qty: 1 Locking device, R.H. door Call
Location: 42 Prev | Next Part: 60730200 *Qty: 2 Pin Superseded
Location: 43 Prev | Next Part: 60078805 *Qty: 6 Pin for upper pulleys $6.54
Location: 44 Prev | Next Part: 61260800 *Qty: 2 Tie rod Superseded
Location: 45 Prev | Next Part: 12644401 *Qty: 12 Washer Superseded
Location: 46 Prev | Next Part: 60088705 *Qty: 2 Special screw for cable $2.46
Location: 47 Prev | Next Part: 60251204 *Qty: 4 Fixed hinge Superseded
Location: 48 Prev | Next Part: 60398807 *Qty: 10 Pulley GTS Call
Location: 48 Prev | Next Part: 60056306 *Qty: 10 Pulley GTB Call
Location: 49 Prev | Next Part: 20074100 *Qty: 4 Pin for hinge Superseded
Location: 50 Prev | Next Part: 60265907 *Qty: 1 Upper L.H. terminal GTS $48.07
Location: 50 Prev | Next Part: 60265808 *Qty: 1 Upper R.H. terminal GTS $50.00
Location: 51 Prev | Next Part: 60273901 *Qty: 2 Pin $18.41
Location: 52 Prev | Next Part: 60116803 *Qty: 2 Cable for door handle Call
Location: 53 Prev | Next Part: 10902421 *Qty: 4 Pin for lower fixed pulleys GTS Superseded
Location: 53 Prev | Next Part: 14141410 *Qty: 4 Pin for lower fixed pulleys GTB $0.90
Location: 54 Prev | Next Part: 60271004 *Qty: 1 Outsider handle, R.H. $134.48
Location: 54 Prev | Next Part: 60271103 *Qty: 1 Outsider handle, L.H. Call
Location: 55 Prev | Next Part: 60159605 *Qty: 2 Lower gasket $21.49
Location: 56 Prev | Next Part: 40162307 *Qty: 2 Bushing for safety rod Call
Location: 57 Prev | Next Part: 20170403 *Qty: 2 Knob for safety rod Call
Location: 58 Prev | Next Part: 60803000 *Qty: 1 Safety rod, upper, R.H. $28.95
Location: 58 Prev | Next Part: 61384800 *Qty: 1 Safety rod, upper, L.H. $22.18
Location: 59 Prev | Next Part: 60591000 *Qty: 2 Gasket Call
Location: 60 Prev | Next Part: 20298303 *Qty: 8 Screw $1.51
Location: 61 Prev | Next Part: 40132706 *Qty: 2 Rear half rod $43.19
Location: 62 Prev | Next Part: 60088606 *Qty: 2 Sleeve $3.00
Location: 63 Prev | Next Part: 60305208 *Qty: 2 Front half rod $7.01
Location: 64 Prev | Next Part: 60035607 *Qty: 2 Door handle, inside $140.42
Location: 65 Prev | Next Part: 61443600 *Qty: 1 L.H. glassframe-GTB
From 1-11-83
$1,535.06
Location: 65 Prev | Next Part: 61443500 *Qty: 1 R.H.glassframe-GTB
From 1-11-83
$1,684.49
Location: 65 Prev | Next Part: 60263506 *Qty: 1 R.H.glassframe- GTB
Up to 31-10-83
Superseded
Location: 65 Prev | Next Part: 60263605 *Qty: 1 L.H. glass frame -GTB
Up to 31-10-83
Superseded
Location: 66 Prev | Next Part: 60343308 *Qty: 2 Channel rear glass GTS Call
Location: 66 Prev | Next Part: 60302205 *Qty: 2 Channel rear glass GTB $23.82
Location: 67 Prev | Next Part: 20037008 *Qty: 8 Clip, door lock $10.70
Location: 68 Prev | Next Part: 12643701 *Qty: 10 Washer Superseded
Location: 69 Prev | Next Part: 50086909 *Qty: 8 Bushing $9.63
Location: 70 Prev | Next Part: 60263803 *Qty: 1 Mobile glass, R.H. GTB Call
Location: 70 Prev | Next Part: 60162409 *Qty: 1 Mobile glass, R.H. GTS Call
Location: 70 Prev | Next Part: 60162508 *Qty: 1 Mobile glass, L.H. GTS $663.25
Location: 70 Prev | Next Part: 60263902 *Qty: 1 Mobile glass, L.H. GTB Call
Location: 71 Prev | Next Part: 12638101 *Qty: 6 Washer Superseded
Location: 72 Prev | Next Part: 60302106 *Qty: 2 Channel, front glass GTB $28.37
Location: 72 Prev | Next Part: 60343407 *Qty: 2 Channel, front glass GTS Superseded
Location: 73 Prev | Next Part: 61328600 *Qty: 1 Safety rod, lower R.H. $2.80
Location: 73 Prev | Next Part: 61328500 *Qty: 1 Safety rod, lower L.H. $2.46
Location: 74 Prev | Next Part: 61021800 *Qty: 1 L.H. rear mirror LHD Call
Location: 74 Prev | Next Part: 61172800 *Qty: 1 R.H. rear mirror RHD $442.33
Location: 74 Prev | Next Part: 61021900 *Qty: 1 R.H. rear mirror LHD Call
Location: 74 Prev | Next Part: 61172700 *Qty: 1 L.H. rear mirror RHD $514.37
Location: 75 Prev | Next Part: 60264405 *Qty: 1 Fixed glass, R.H. $126.08
Location: 75 Prev | Next Part: 60264504 *Qty: 1 Fixed glass, L.H. $178.73
Location: 76 Prev | Next Part: 60519100 *Qty: 2 Weatherstrip, fixed glass GTS Call
Location: 76 Prev | Next Part: 60322500 *Qty: 2 Weatherstrip, fixed glass GTB Call
Location: 77 Prev | Next Part: 60030509 *Qty: 2 Window regulator $443.04
Location: 78 Prev | Next Part: 60711900 *Qty: 4 Washer $0.90
Location: 79 Prev | Next Part: 50031608 *Qty: 2 Mobile hinge, lower $77.76
Location: 80 Prev | Next Part: 50206408 *Qty: 12 Screw $6.45
Location: 81 Prev | Next Part: 60265402 *Qty: 1 Mobile hinge, upper R.H. door Superseded
Location: 81 Prev | Next Part: 60265501 *Qty: 1 Mobile hinge, upper L.H. door Superseded
Location: 82 Prev | Next Part: 13274818 *Qty: 2 Screw for armrest $1.55
Location: 83 Prev | Next Part: 61433500 *Qty: 1 Lower covering, R.H. panel $777.45
Location: 83 Prev | Next Part: 61433600 *Qty: 1 Lower covering, L.H. panel $777.45
Location: 84 Prev | Next Part: 61022000 *Qty: 2 Bracket fixing rear mirror $21.70
Location: 85 Prev | Next Part: 40133902 *Qty: 2 Terminal for rod $27.94
Location: 86 Prev | Next Part: 60266004 *Qty: 1 R.H. terminal GTS $15.88
Location: 86 Prev | Next Part: 60266103 *Qty: 1 L.H. terminal GTS $15.88
Location: 87 Prev | Next Part: 20286704 *Qty: 4 Screw, fixing front frame GTB $1.73
Location: 88 Prev | Next Part: 13832101 *Qty: 4 Nut, glass to cable $0.90
Location: 89 Prev | Next Part: 60657800 *Qty: 4 Screw, glass to cable $0.90
Location: 90 Prev | Next Part: 12574111 *Qty: 4 Nut Superseded
Location: 91 Prev | Next Part: 12575411 *Qty: 10 Nut Superseded
Location: 92 Prev | Next Part: 60278504 *Qty: 2 Gasket GTB Call
Location: 92 Prev | Next Part: 60343100 *Qty: 2 Gasket GTS Superseded
Location: 93 Prev | Next Part: 61141500 *Qty: 1 Moulding R.H. armrest
LHD up to 30 6-83-RHD up to 30-9-83
$22.89
Location: 93 Prev | Next Part: 61269600 *Qty: 1 Moulding R.H. armrest
LHD from 1 7-83 - RHD from 1-10-83
$50.42
Location: 94 Prev | Next Part: 60709000 *Qty: 2 Rod $5.85
Location: 95 Prev | Next Part: 12577811 *Qty: 6 Nut Superseded
Location: 96 Prev | Next Part: 60441300 *Qty: 2 Bracket GTS Call
Location: 97 Prev | Next Part: 60292000 *Qty: 1 Front glass frame, R.H. GTS $330.35
Location: 97 Prev | Next Part: 60292109 *Qty: 1 Front glass frame, L.H. GTS $330.35
Location: 98 Prev | Next Part: 60292208 *Qty: 1 Rear glass frame, R.H. GTS $165.52
Location: 98 Prev | Next Part: 60292307 *Qty: 1 Rear glass frame, L.H. GTS $174.63
Location: 99 Prev | Next Part: 60815200 *Qty: 4 Screw, fixing front frame GTS $1.40
Location: 100 Prev | Next Part: 10902621 *Qty: 2 Screw Superseded
Location: 101 Prev | Next Part: 20030003 *Qty: 2 Screw Call
Location: 102 Prev | Next Part: 17685206 *Qty: 4 Screw $0.90
Location: 103 Prev | Next Part: 14304220 *Qty: 4 Screw $0.90
Location: 104 Prev | Next Part: 60566200 *Qty: 2 Gasket Call
Location: 105 Prev | Next Part: 15908806 *Qty: 2 Screw Superseded
Location: 106 Prev | Next Part: 12611606 *Qty: 10 Washer Call

* Quantity shown indicates the number of pieces used in the diagram.
