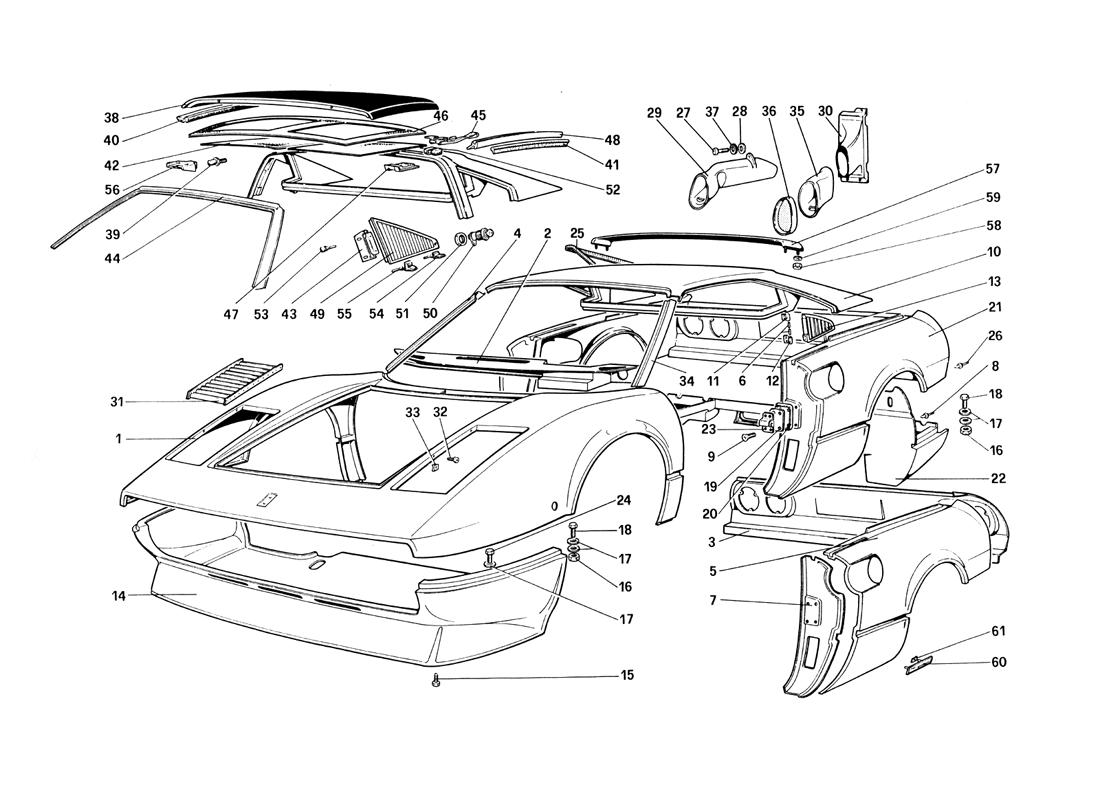

BODY SHELL - OUTER ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61146100 *Qty: 1 Front covering Call
Location: 2 Prev | Next Part: 61013800 *Qty: 1 Panel LHD $106.14
Location: 3 Prev | Next Part: 61109600 *Qty: 1 Covering number plate seat Superseded
Location: 4 Prev | Next Part: 61141100 *Qty: 1 Covering for Ril post GTB $178.38
Location: 5 Prev | Next Part: 60358900 *Qty: 1 R.H. rear fender GTS $2,948.73
Location: 5 Prev | Next Part: 60359106 *Qty: 1 R.H. rear fender GTB $4,246.81
Location: 5 Prev | Next Part: 60359007 *Qty: 1 L.H. rear fender GTS $2,868.62
Location: 5 Prev | Next Part: 60359205 *Qty: 1 L.H. rear fender GTB $4,246.81
Location: 6 Prev | Next Part: 60042108 *Qty: 2 Hinge pin GTB $2.18
Location: 7 Prev | Next Part: 60216801 *Qty: 1 R.H. pillar for fender LHD $145.91
Location: 7 Prev | Next Part: 60216900 *Qty: 1 L.H. pillar for fender LHD $145.91
Location: 7 Prev | Next Part: 60891100 *Qty: 1 L.H. pillar for fender RHD $154.80
Location: 7 Prev | Next Part: 60891000 *Qty: 1 R.H. pillar for fender RHD $206.29
Location: 8 Prev | Next Part: 60159001 *Qty: 20 Rivet $1.04
Location: 9 Prev | Next Part: 20287504 *Qty: 8 Screw $2.57
Location: 10 Prev | Next Part: 60214806 *Qty: 1 Roof covering GTB $6,956.23
Location: 11 Prev | Next Part: 60040805 *Qty: 1 Upper hinge GTB $12.15
Location: 12 Prev | Next Part: 60040706 *Qty: 1 Lower hinge GTB $12.60
Location: 13 Prev | Next Part: 60370004 *Qty: 1 R.H. grill GTB $254.47
Location: 13 Prev | Next Part: 60337409 *Qty: 1 L.H. grill GTB $254.47
Location: 14 Prev | Next Part: 61182900 *Qty: 1 Covering front lower - big Call
Location: 14 Prev | Next Part: 61183000 *Qty: 1 Covering front lower - standard $2,513.46
Location: 15 Prev | Next Part: 15903801 *Qty: 6 Screw for standard covering $1.53
Location: 15 Prev | Next Part: 15645501 *Qty: 6 Screw for big covering $0.90
Location: 16 Prev | Next Part: 12574121 *Qty: 22 Nut Superseded
Location: 17 Prev | Next Part: 12638101 *Qty: 49 Washer Superseded
Location: 18 Prev | Next Part: 10977721 *Qty: 18 Screw Superseded
Location: 19 Prev | Next Part: 60163003 *Qty: 2 Spacer $9.30
Location: 20 Prev | Next Part: 60602400 *Qty: 2 Gasket $49.02
Location: 21 Prev | Next Part: 61147600 *Qty: 1 Rear covering GTS - LHD Call
Location: 21 Prev | Next Part: 61151900 *Qty: 1 Rear covering GTS - RHD Call
Location: 21 Prev | Next Part: 61150400 *Qty: 1 Rear covering GTB - RHD Call
Location: 21 Prev | Next Part: 61109500 *Qty: 1 Rear covering GTB - LHD Call
Location: 22 Prev | Next Part: 60978600 *Qty: 1 Covering rear lower $2,245.86
Location: 23 Prev | Next Part: 20019105 *Qty: 1 R.H. lock striker $403.61
Location: 23 Prev | Next Part: 20019204 *Qty: 1 L.H. lock striker $395.92
Location: 24 Prev | Next Part: 10978021 *Qty: 4 Screw $0.90
Location: 25 Prev | Next Part: 60528300 *Qty: 2 Gasket $11.91
Location: 26 Prev | Next Part: 60225901 *Qty: 30 Rivet $1.26
Location: 27 Prev | Next Part: 10902121 *Qty: 2 Screw Superseded
Location: 28 Prev | Next Part: 12643721 *Qty: 2 Washer $1.19
Location: 29 Prev | Next Part: 61299600 *Qty: 1 R.H. air duct
CH only
Call
Location: 29 Prev | Next Part: 60978500 *Qty: 1 R.H. air duct
CH excluded
Call
Location: 30 Prev | Next Part: 60222304 *Qty: 1 L.H. rear air duct $287.16
Location: 31 Prev | Next Part: 60024205 *Qty: 1 L.H. headlamp grill Superseded
Location: 31 Prev | Next Part: 60024106 *Qty: 1 R.H. headlamp grill Superseded
Location: 32 Prev | Next Part: 60644100 *Qty: 8 Screw $1.60
Location: 33 Prev | Next Part: 60679600 *Qty: 8 Clip $1.01
Location: 34 Prev | Next Part: 61141200 *Qty: 1 Covering for L.H, post GTB $205.69
Location: 35 Prev | Next Part: 60373602 *Qty: 1 L.H. front air duct $364.20
Location: 36 Prev | Next Part: 60200300 *Qty: 1 R.H. grill
D Only
Call
Location: 36 Prev | Next Part: 60200409 *Qty: 1 L.H. grill
D only
Call
Location: 37 Prev | Next Part: 106850 *Qty: 2 Washer Superseded
Location: 38 Prev | Next Part: 61128700 *Qty: 1 Sun roof GTS $6,317.69
Location: 39 Prev | Next Part: 60189008 *Qty: 2 Fixing pin front roof GTS $45.00
Location: 40 Prev | Next Part: 60398104 *Qty: 2 Gasket GTS Call
Location: 41 Prev | Next Part: 60608500 *Qty: 2 Gasket GTS Call
Location: 42 Prev | Next Part: 61202900 *Qty: 1 L.H.. covering GTS $141.49
Location: 42 Prev | Next Part: 61202800 *Qty: 1 R.H. covering GTS $141.49
Location: 43 Prev | Next Part: 60325305 *Qty: 2 Grill hingle GTS $151.28
Location: 44 Prev | Next Part: 60372700 *Qty: 1 Frame work windshield GTS Call
Location: 45 Prev | Next Part: 60421500 *Qty: 2 Handle roof GTS $555.74
Location: 46 Prev | Next Part: 61203000 *Qty: 1 Covering GTS $291.84
Location: 47 Prev | Next Part: 60500500 *Qty: 2 Rear bracket roof GTS Call
Location: 48 Prev | Next Part: 60608300 *Qty: 1 R.H. gutter GTS $324.90
Location: 48 Prev | Next Part: 60608400 *Qty: 1 L.H. gutter GTS $324.90
Location: 49 Prev | Next Part: 60336203 *Qty: 1 R.H. grill GTS $371.21
Location: 49 Prev | Next Part: 60336302 *Qty: 1 L.H. grill GTS Call
Location: 50 Prev | Next Part: 60075009 *Qty: 2 Block grill GTS Superseded
Location: 51 Prev | Next Part: 60066404 *Qty: 2 Ring nut grill GTS $46.23
Location: 52 Prev | Next Part: 60395506 *Qty: 2 Handle protection GTS $8.93
Location: 53 Prev | Next Part: 60892600 *Qty: 4 Grommet GTS $12.79
Location: 54 Prev | Next Part: 20106001 *Qty: 2 Grommet GTS Call
Location: 55 Prev | Next Part: 60551400 *Qty: 2 Grommet GTS $1.94
Location: 56 Prev | Next Part: 60336807 *Qty: 2 Front bracket roof GTS $60.00
Location: 57 Prev | Next Part: 61290200 *Qty: 1 Spoyler GTS $1,551.88
Location: 57 Prev | Next Part: 61024700 *Qty: 1 Spoyler GTB $1,082.12
Location: 58 Prev | Next Part: 12574211 *Qty: 4 Nut Superseded
Location: 59 Prev | Next Part: 12643701 *Qty: 4 Washer Superseded
Location: 60 Prev | Next Part: 20043105 *Qty: 1 Ornament "Disegno Pininfarina" $112.76
Location: 61 Prev | Next Part: 60324506 *Qty: 2 Clip Superseded

* Quantity shown indicates the number of pieces used in the diagram.
