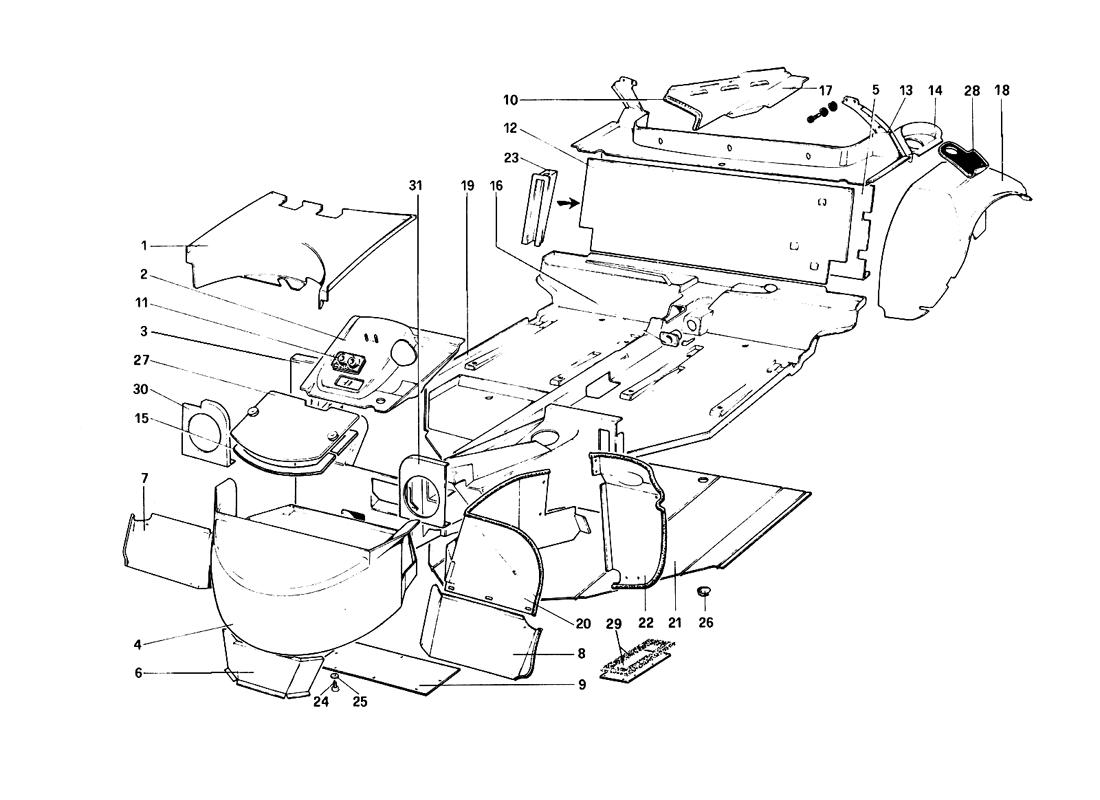

BODY SHELL - INNER ELEMENTS

Go to Split View

BODY SHELL - INNER ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60350501 *Qty: 1 Panel wheel compartment LHD Call
Location: 1 Prev | Next Part: 60351806 *Qty: 1 Panel wheel compartment RHD $477.45
Location: 2 Prev | Next Part: 60191202 *Qty: 1 Front additional panel RHD $413.24
Location: 3 Prev | Next Part: 60044609 *Qty: 1 Front panel GTB - LHD
Up to car no. 52419
Call
Location: 3 Prev | Next Part: 61618600 *Qty: 1 Front panel GTB - LHD
From car no. 52421
Superseded
Location: 3 Prev | Next Part: 61617600 *Qty: 1 Front panel GTB - RHD
From car no. 52422
$883.68
Location: 3 Prev | Next Part: 60048907 *Qty: 1 Front panel GTB ? RHD
Up to car no. 52420
$593.00
Location: 3 Prev | Next Part: 60327301 *Qty: 1 Front panel GTS - LHD
Up to car no. 52421
Call
Location: 3 Prev | Next Part: 60327400 *Qty: 1 Front panel GTS - RHD
Up to car no. 52422
$668.88
Location: 3 Prev | Next Part: 61617800 *Qty: 1 Front panel GTS - RHD
From car no. 52424
$883.68
Location: 3 Prev | Next Part: 61618000 *Qty: 1 Front panel GTS ? LHD
From car no. 52423
Call
Location: 4 Prev | Next Part: 60552900 *Qty: 1 Housing for wheel $904.69
Location: 5 Prev | Next Part: 61194200 *Qty: 1 Panel on engine comp. side GTS - LHD $189.34
Location: 5 Prev | Next Part: 61194300 *Qty: 1 Panel on engine comp. side GTS - RHD $288.32
Location: 6 Prev | Next Part: 60351707 *Qty: 1 Battery protection $252.07
Location: 7 Prev | Next Part: 60307501 *Qty: 1 R.H. front gravel guard - oversize Call
Location: 7 Prev | Next Part: 60298304 *Qty: 1 R.H. front gravel guard - standard Call
Location: 8 Prev | Next Part: 60307600 *Qty: 1 L.H. front gravel guard - oversize $135.64
Location: 8 Prev | Next Part: 60298403 *Qty: 1 L.H. front gravel guard - standard $84.29
Location: 9 Prev | Next Part: 60208600 *Qty: 1 Panel RHD $118.45
Location: 9 Prev | Next Part: 60059706 *Qty: 1 Panel LHD Call
Location: 10 Prev | Next Part: 60251808 *Qty: 2 Gasket $10.51
Location: 11 Prev | Next Part: 60197704 *Qty: 1 Fair - lead for A.C. pipes RHD Call
Location: 11 Prev | Next Part: 60054905 *Qty: 1 Fair - lead for A.C. pipes LHD $9.82
Location: 12 Prev | Next Part: 60850800 *Qty: 1 Panel GTS -LHD $115.58
Location: 12 Prev | Next Part: 61081000 *Qty: 1 Panel GTS - RHD $94.09
Location: 12 Prev | Next Part: 61193700 *Qty: 1 Panel on passenger comp. side GTB $113.94
Location: 13 Prev | Next Part: 61128400 *Qty: 1 Plane rear window GTS $268.50
Location: 13 Prev | Next Part: 61010800 *Qty: 1 Plane rear window GTB $267.33
Location: 14 Prev | Next Part: 60342904 *Qty: 1 Fuel filler chamber GTS $142.41
Location: 14 Prev | Next Part: 60441201 *Qty: 1 Fuel filler chamber GTB $123.28
Location: 15 Prev | Next Part: 60031101 *Qty: 1 Gasket Call
Location: 16 Prev | Next Part: 40169005 *Qty: 1 Bushing RHD $13.31
Location: 16 Prev | Next Part: 60084704 *Qty: 1 Bushing LHD $8.63
Location: 17 Prev | Next Part: 60956900 *Qty: 1 Inner covering R.H. fins $118.36
Location: 17 Prev | Next Part: 60956800 *Qty: 1 Inner covering L.H. fins $94.32
Location: 18 Prev | Next Part: 60091402 *Qty: 1 L.H. rear wheelhouse $956.90
Location: 18 Prev | Next Part: 60091303 *Qty: 1 R.H. rear wheelhouse $400.41
Location: 19 Prev | Next Part: 60063302 *Qty: 1 Resin flat bed GTB - RHD $1,130.00
Location: 19 Prev | Next Part: 60880700 *Qty: 1 Resin flat bed GTB - LHD $1,444.02
Location: 19 Prev | Next Part: 60880800 *Qty: 1 Resin flat bed GTS - LHD $1,111.31
Location: 19 Prev | Next Part: 60327004 *Qty: 1 Resin flat bed GTS - RHD $1,497.72
Location: 20 Prev | Next Part: 61012900 *Qty: 1 L.H. front wheelhouse $285.23
Location: 20 Prev | Next Part: 61012800 *Qty: 1 R.H. front wheelhouse Call
Location: 21 Prev | Next Part: 60270006 *Qty: 1 Under flat bed - RHD $413.22
Location: 21 Prev | Next Part: 60880900 *Qty: 1 Under flat bed - LHD $869.08
Location: 22 Prev | Next Part: 60259702 *Qty: 1 L.H. gravel guard GTB - LHD $169.04
Location: 22 Prev | Next Part: 60308301 *Qty: 1 R.H. gravel guard GTS - LHD $139.61
Location: 22 Prev | Next Part: 60312808 *Qty: 1 R.H. gravel guard GTB - RHD $117.19
Location: 22 Prev | Next Part: 50259603 *Qty: 1 R.H. gravel guard GTB - LHD Call
Location: 22 Prev | Next Part: 60377108 *Qty: 1 L.H. gravel guard GTS - RHD $146.38
Location: 22 Prev | Next Part: 60308400 *Qty: 1 L.H. gravel guard GTS - LHO $139.61
Location: 22 Prev | Next Part: 60312907 *Qty: 1 L.H. gravel guard GTB - RHD $134.02
Location: 22 Prev | Next Part: 60377009 *Qty: 1 R.H. gravel guard GTS - RHD $172.77
Location: 23 Prev | Next Part: 60241908 *Qty: 1 Protection for pipes GTB - RHD $142.65
Location: 23 Prev | Next Part: 60093903 *Qty: 1 Protection for pipes GTB - LHD $222.95
Location: 24 Prev | Next Part: 20146601 *Qty: 6 Screw Superseded
Location: 25 Prev | Next Part: 12643701 *Qty: 6 Washer Superseded
Location: 26 Prev | Next Part: 40305203 *Qty: 1 Plug under flat bed $7.46
Location: 27 Prev | Next Part: 60279809 *Qty: 1 Protection cover for battery $120.00
Location: 28 Prev | Next Part: 60134202 *Qty: 1 Gasket for filler Superseded
Location: 29 Prev | Next Part: 60225000 *Qty: 1 Cover ? RHD only $183.83
Location: 30 Prev | Next Part: 61017100 *Qty: 1 R.H. panel $18.68
Location: 31 Prev | Next Part: 61017200 *Qty: 1 L.H. panel $15.40

* Quantity shown indicates the number of pieces used in the diagram.
