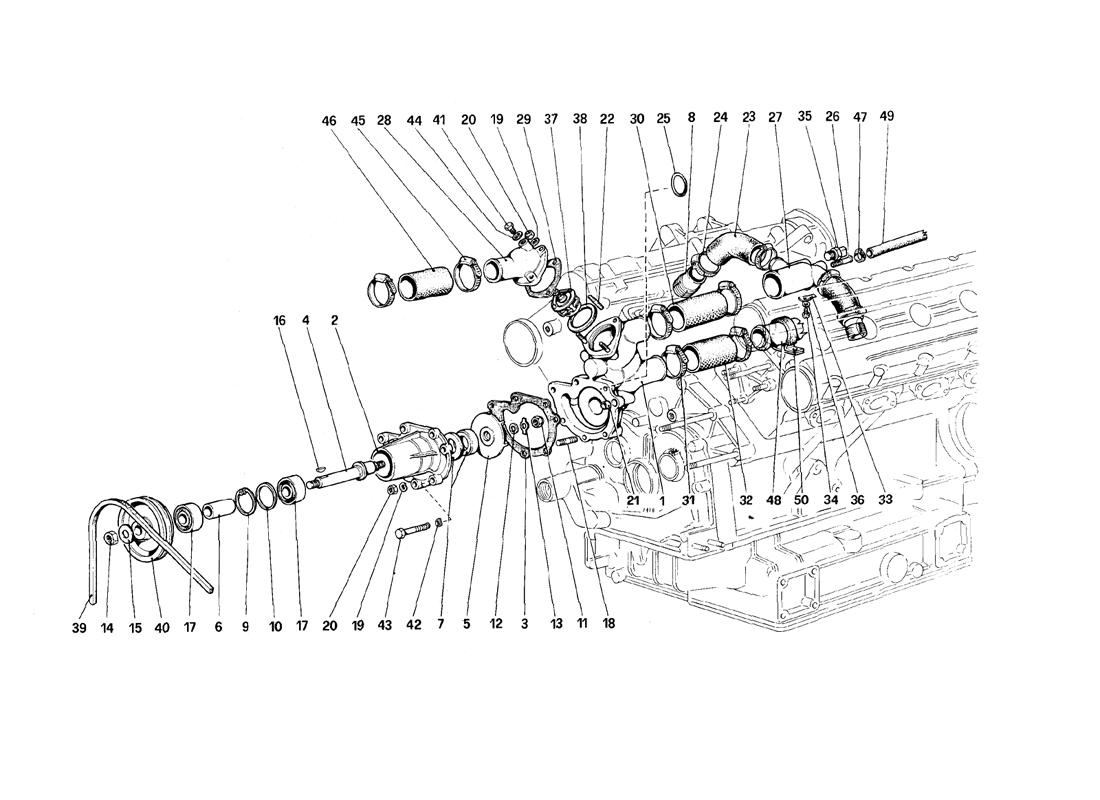

WATER PUMP AND PIPING

Go to Split View

WATER PUMP AND PIPING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 116173 *Qty: 1 Pompa acqua completa (parte ant.) Call
Location: 1 Prev | Next Part: 115472 *Qty: 1 Pompa acqua completa Superseded
Location: 1 Prev | Next Part: 115470 *Qty: 1 Corpo pojnpa acqua
Col complessivo n. 115471
Call
Location: 1 Prev | Next Part: 121255 *Qty: 1 Water Pump Complete Front Cover $399.00
Location: 1 Prev | Next Part: 115471 *Qty: 1 Corpo pompa acqua complete Call
Location: 2 Prev | Next Part: 116156 *Qty: 1 Coperchio pompa Superseded
Location: 3 Prev | Next Part: 103952 *Qty: 1 Guarnizione Superseded
Location: 4 Prev | Next Part: 103795 *Qty: 1 Alberino per puleggia Call
Location: 5 Prev | Next Part: 103806 *Qty: 1 Girante $180.00
Location: 6 Prev | Next Part: 116157 *Qty: 1 Distanziale $93.33
Location: 7 Prev | Next Part: 100433 *Qty: 1 Anello di tenuta
In alternative n. 114410
$98.27
Location: 8 Prev | Next Part: 115246 *Qty: 2 Raccordo $18.21
Location: 9 Prev | Next Part: 11060076 *Qty: 1 Anello seeger $0.90
Location: 10 Prev | Next Part: 116158 *Qty: 1 Rondella $7.01
Location: 11 Prev | Next Part: 100436 *Qty: 1 Dado cieco $13.30
Location: 12 Prev | Next Part: 10730301 *Qty: 1 Rondella Superseded
Location: 13 Prev | Next Part: 100434 *Qty: 1 Piastrina $9.78
Location: 14 Prev | Next Part: 16101521 *Qty: 1 Dado $0.90
Location: 15 Prev | Next Part: 11198671 *Qty: 1 Rondella conica Superseded
Location: 16 Prev | Next Part: 10205820 *Qty: 1 Linguetta $1.65
Location: 17 Prev | Next Part: 116159 *Qty: 2 Cuscinetto a tenuta Call
Location: 18 Prev | Next Part: 11500721 *Qty: 3 THREADED STUD $1.63
Location: 19 Prev | Next Part: 12601271 *Qty: 6 Rondella ondulata Superseded
Location: 20 Prev | Next Part: 12574211 *Qty: 6 Dado Superseded
Location: 21 Prev | Next Part: 102704 *Qty: 2 Grano $19.74
Location: 22 Prev | Next Part: 11500421 *Qty: 3 THREADED STUD Superseded
Location: 23 Prev | Next Part: 115247 *Qty: 2 Manicotto $149.44
Location: 24 Prev | Next Part: 102958 *Qty: 4 Fascetta Superseded
Location: 25 Prev | Next Part: 105196 *Qty: 1 Anello di tenuta $3.86
Location: 26 Prev | Next Part: 106241 *Qty: 1 Raccordo $40.00
Location: 27 Prev | Next Part: 115248 *Qty: 1 Raccordo uscita acqua dalle teste $419.04
Location: 28 Prev | Next Part: 105165 *Qty: 1 Bocchettone uscita acqua $176.70
Location: 29 Prev | Next Part: 105189 *Qty: 1 Guarnizione $4.82
Location: 30 Prev | Next Part: 115936 *Qty: 1 Manicotto $32.13
Location: 31 Prev | Next Part: 102958 *Qty: 4 Fascetta Superseded
Location: 32 Prev | Next Part: 102957 *Qty: 1 Manicotto Call
Location: 33 Prev | Next Part: 115600 *Qty: 1 Linguetta $0.90
Location: 34 Prev | Next Part: 10374701 *Qty: 1 Vite $0.90
Location: 35 Prev | Next Part: 104628 *Qty: 1 Termistore acqua $69.95
Location: 36 Prev | Next Part: 10569071 *Qty: 1 Rondella $0.90
Location: 37 Prev | Next Part: 109671 *Qty: 1 Termostato $217.80
Location: 38 Prev | Next Part: 105192 *Qty: 1 Guarnizione $21.41
Location: 39 Prev | Next Part: 117435 *Qty: 1 Cinghia comando pompa acqua e alternatore $60.71
Location: 40 Prev | Next Part: 105166 *Qty: 1 Puleggia Call
Location: 41 Prev | Next Part: 16042940 *Qty: 1 Vite $1.60
Location: 42 Prev | Next Part: 12601371 *Qty: 4 Rondella Superseded
Location: 43 Prev | Next Part: 16044421 *Qty: 4 Vite fissaggio corpo pompa Call
Location: 44 Prev | Next Part: 10260060 *Qty: 1 Guarnizione $1.50
Location: 45 Prev | Next Part: 12174090 *Qty: 2 Fascetta Superseded
Location: 46 Prev | Next Part: 102957 *Qty: 1 Manicotto Call
Location: 47 Prev | Next Part: 104879 *Qty: 2 Fascetta Superseded
Location: 48 Prev | Next Part: 115136 *Qty: 1 Tubo Call
Location: 49 Prev | Next Part: 115636 *Qty: 1 Tubo sfiato collegamento motore nourrice Superseded
Location: 50 Prev | Next Part: 107002 *Qty: 1 Fascetta sostegno tubo $33.45

* Quantity shown indicates the number of pieces used in the diagram.
