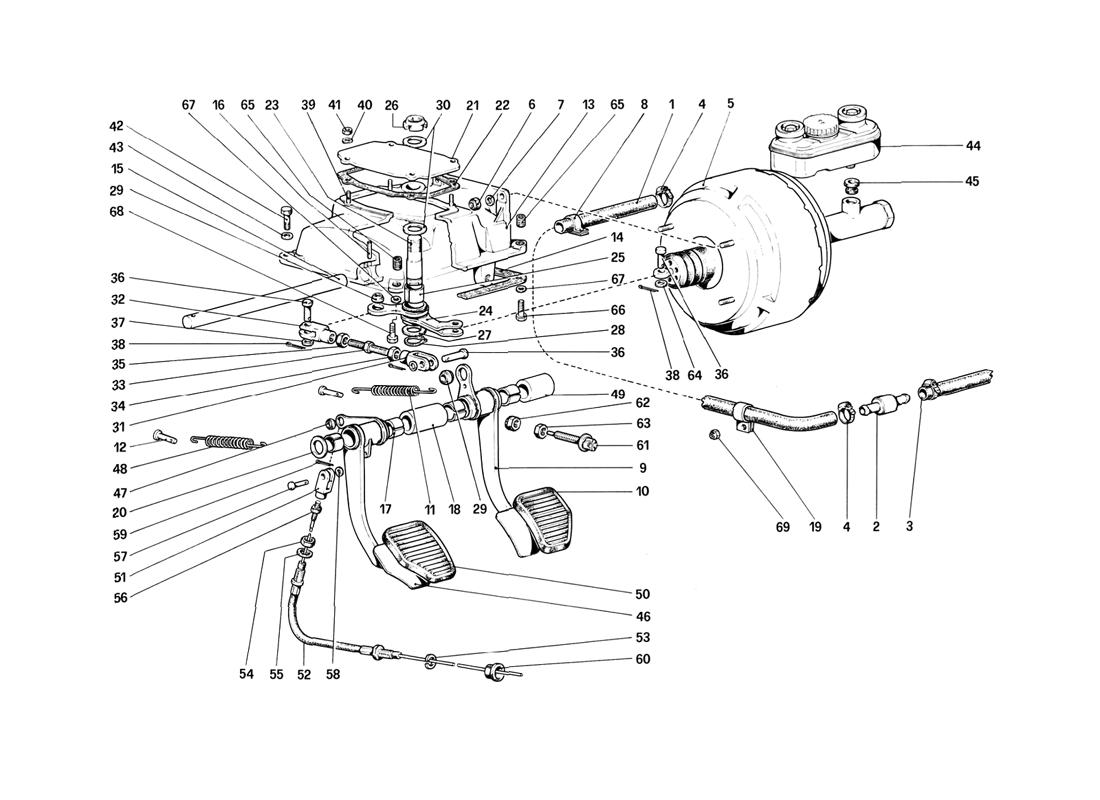

PEDAL BOARD - BRAKE AND CLUTCH CONTROLS

Go to Split View

PEDAL BOARD - BRAKE AND CLUTCH CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 108951 *Qty: 1 Tubo dal servofreno alia valvola di non ritorno $137.75
Location: 2 Prev | Next Part: 101538 *Qty: 1 Valvola non ritorno Superseded
Location: 3 Prev | Next Part: 107982 *Qty: 1 Tubo dalla valvola al collettore Call
Location: 4 Prev | Next Part: 100507 *Qty: 4 Fascetta Call
Location: 5 Prev | Next Part: 111338 *Qty: 1 Servofreno Superseded
Location: 6 Prev | Next Part: 16104411 *Qty: 4 Dado $0.90
Location: 7 Prev | Next Part: 12601371 *Qty: 4 Rondella Superseded
Location: 8 Prev | Next Part: 10418900 *Qty: 1 Fascetta $1.83
Location: 9 Prev | Next Part: 108533 *Qty: 1 Pedale freno $633.87
Location: 10 Prev | Next Part: 106950 *Qty: 1 Copri pedale freno $32.46
Location: 11 Prev | Next Part: 104895 *Qty: 1 Molla richiamo pedale freno $9.44
Location: 12 Prev | Next Part: 104896 *Qty: 2 Perno tenuta molla $37.35
Location: 13 Prev | Next Part: 106187 *Qty: 1 Supporto pedaliera
Col complessivo n. 108022
Superseded
Location: 13 Prev | Next Part: 108022 *Qty: 1 Supporto pedaliera completo $2,381.40
Location: 14 Prev | Next Part: 104899 *Qty: 1 Guarnizione $20.09
Location: 15 Prev | Next Part: 104900 *Qty: 1 Perno supporto pedali $142.65
Location: 16 Prev | Next Part: 104901 *Qty: 1 Spina $2.35
Location: 17 Prev | Next Part: 103163 *Qty: 4 Boccola $3.46
Location: 18 Prev | Next Part: 104902 *Qty: 1 Distanziale $43.88
Location: 19 Prev | Next Part: 106195 *Qty: 1 Fascetta $46.96
Location: 20 Prev | Next Part: 106083 *Qty: 1 Rondella $0.90
Location: 21 Prev | Next Part: 104904 *Qty: 1 Coperchio $10.51
Location: 22 Prev | Next Part: 104905 *Qty: 1 Guarnizione $11.20
Location: 23 Prev | Next Part: 106081 *Qty: 1 Perno supporto leva rinvio $62.80
Location: 24 Prev | Next Part: 108313 *Qty: 1 Leva rinvio servofreno $89.43
Location: 25 Prev | Next Part: 100787 *Qty: 1 Boccola $6.90
Location: 26 Prev | Next Part: 106082 *Qty: 1 Ghiera Call
Location: 27 Prev | Next Part: 108382 *Qty: 1 Distanziale $11.43
Location: 28 Prev | Next Part: 11066875 *Qty: 1 Anello seeger Superseded
Location: 29 Prev | Next Part: 100424 *Qty: 2 Snodo sferico Call
Location: 30 Prev | Next Part: 106084 *Qty: 2 Rondella $7.94
Location: 31 Prev | Next Part: 104910 *Qty: 1 Forcellino (filetto Sx.) $10.85
Location: 32 Prev | Next Part: 104911 *Qty: 1 Forcellino $26.62
Location: 33 Prev | Next Part: 104912 *Qty: 1 Vite registro $25.22
Location: 34 Prev | Next Part: 103157 *Qty: 1 Dado (filetto Sx.) Superseded
Location: 35 Prev | Next Part: 103160 *Qty: 1 Dado Superseded
Location: 36 Prev | Next Part: 10033411 *Qty: 3 Perno Superseded
Location: 37 Prev | Next Part: 103167 *Qty: 2 Rondella $5.08
Location: 38 Prev | Next Part: 10796301 *Qty: 3 Copiglia $0.90
Location: 39 Prev | Next Part: 11500021 *Qty: 4 THREADED STUD Superseded
Location: 40 Prev | Next Part: 12601271 *Qty: 4 Rondella ondulata Superseded
Location: 41 Prev | Next Part: 15896211 *Qty: 4 Dado Superseded
Location: 42 Prev | Next Part: 16139021 *Qty: 2 Bullone $3.04
Location: 43 Prev | Next Part: 12601471 *Qty: 2 Rondella ondulata Superseded
Location: 44 Prev | Next Part: 108802 *Qty: 1 Vaschetta per liquido freni Call
Location: 45 Prev | Next Part: 106625 *Qty: 2 Anello di tenuta Superseded
Location: 46 Prev | Next Part: 116324 *Qty: 1 Pedale frizione $303.51
Location: 47 Prev | Next Part: 100423 *Qty: 1 Snodo sferico $27.55
Location: 48 Prev | Next Part: 117374 *Qty: 1 Molla richiamo pedale frizione $10.98
Location: 49 Prev | Next Part: 104903 *Qty: 1 Distanziale $49.73
Location: 50 Prev | Next Part: 106949 *Qty: 1 Copripedale $11.45
Location: 51 Prev | Next Part: 108575 *Qty: 1 Forcellino $81.85
Location: 52 Prev | Next Part: 106745 *Qty: 1 Cavo comando frizione $57.48
Location: 53 Prev | Next Part: 12601671 *Qty: 1 Rondella elastica $0.90
Location: 54 Prev | Next Part: 16103611 *Qty: 1 Dado $0.90
Location: 55 Prev | Next Part: 12601571 *Qty: 1 Rondella elastica $0.90
Location: 56 Prev | Next Part: 100861 *Qty: 1 Controdado $0.90
Location: 57 Prev | Next Part: 103218 *Qty: 1 Perno $38.25
Location: 58 Prev | Next Part: 12639701 *Qty: 1 Rondella Call
Location: 59 Prev | Next Part: 10734221 *Qty: 1 Copiglia Call
Location: 60 Prev | Next Part: 105369 *Qty: 3 Passafilo $1.81
Location: 61 Prev | Next Part: 101663 *Qty: 1 Interruttore per luci arresto $14.98
Location: 62 Prev | Next Part: 101662 *Qty: 1 Dado paracolpi $3.73
Location: 63 Prev | Next Part: 10791211 *Qty: 1 Dado registro $0.90
Location: 64 Prev | Next Part: 10730521 *Qty: 1 Rondella $3.01
Location: 65 Prev | Next Part: 106188 *Qty: 2 Boccola filettata $40.13
Location: 66 Prev | Next Part: 16044321 *Qty: 1 Vite fiss. pedaliera $0.90
Location: 67 Prev | Next Part: 106852 *Qty: 2 Rondella Superseded
Location: 68 Prev | Next Part: 16043621 *Qty: 1 Vite fissaggio pedalrera $0.90
Location: 69 Prev | Next Part: 12574211 *Qty: 1 Dado Superseded

* Quantity shown indicates the number of pieces used in the diagram.
