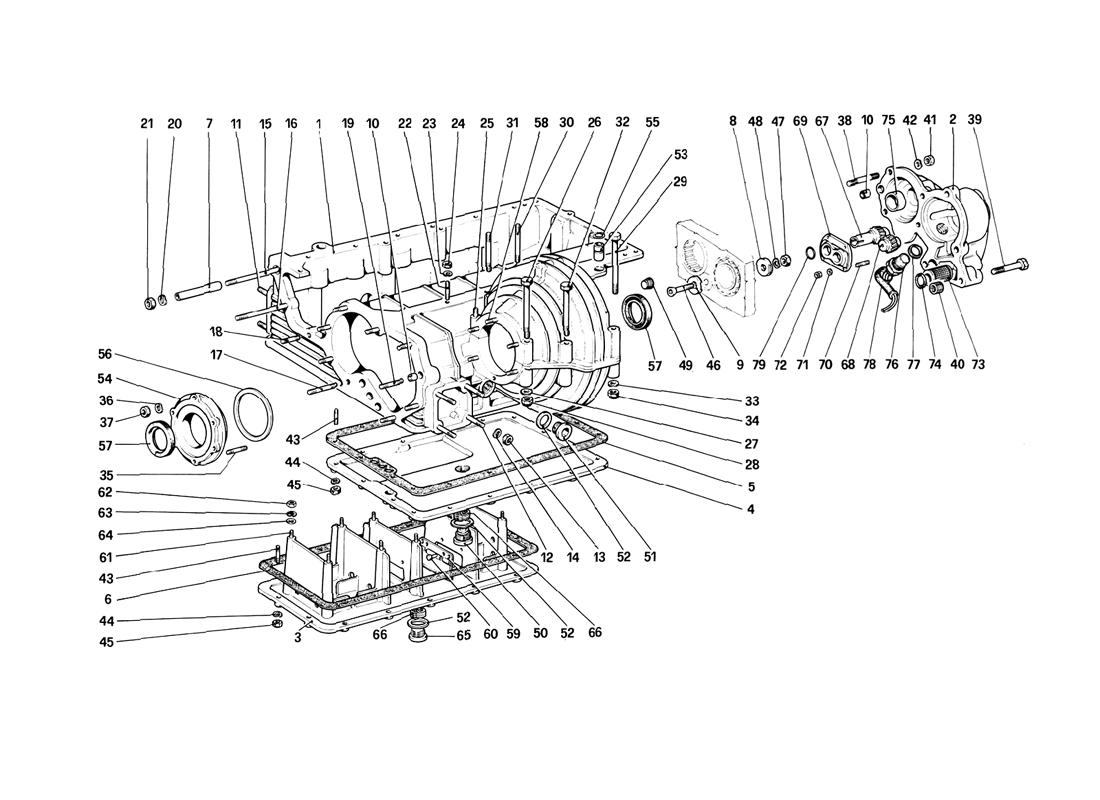

GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP

Go to Split View

GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 113072 *Qty: 1 Scatola cambio differenziale e coppa olio
Col complessivo n. 115179
Call
Location: 1 Prev | Next Part: 115569 *Qty: 1 Cambio completo di ruotismi differenziale e supporti Superseded
Location: 1 Prev | Next Part: 115179 *Qty: 1 Scatola cambio completa $6,358.30
Location: 2 Prev | Next Part: 107875 *Qty: 1 Coperchio coppa olio completo Superseded
Location: 2 Prev | Next Part: 113073 *Qty: 1 Coperchio posteriore
Col complessivo n. 115179
$692.78
Location: 3 Prev | Next Part: 104192 *Qty: 1 Coperchio coppa olio Superseded
Location: 4 Prev | Next Part: 115353 *Qty: 1 Coperchio inferiore Call
Location: 5 Prev | Next Part: 104196 *Qty: 1 Guarnizione Superseded
Location: 6 Prev | Next Part: 104197 *Qty: 1 Guarnizione Superseded
Location: 7 Prev | Next Part: 104033 *Qty: 1 Grano di centraggio $30.11
Location: 8 Prev | Next Part: 104198 *Qty: 1 Rondella tenuta cuscinetti $11.08
Location: 9 Prev | Next Part: 104199 *Qty: 1 Rondella tenuta cuscinetti $6.57
Location: 10 Prev | Next Part: 102704 *Qty: 2 Grano. di centraggio $2.18
Location: 11 Prev | Next Part: 13549321 *Qty: 8 Prigioniero per tamponi anteriori Call
Location: 12 Prev | Next Part: 13450021 *Qty: 8 Prigioniero per tamponi posteriori $0.90
Location: 13 Prev | Next Part: 12164711 *Qty: 16 Dado Superseded
Location: 14 Prev | Next Part: 106853 *Qty: 16 Rondella Superseded
Location: 15 Prev | Next Part: 13952821 *Qty: 1 THREADED STUD $1.26
Location: 16 Prev | Next Part: 13952621 *Qty: 1 THREADED STUD $1.28
Location: 17 Prev | Next Part: 13517421 *Qty: 1 THREADED STUD $41.97
Location: 18 Prev | Next Part: 13517221 *Qty: 8 THREADED STUD Superseded
Location: 19 Prev | Next Part: 13517321 *Qty: 1 THREADED STUD Superseded
Location: 20 Prev | Next Part: 11198071 *Qty: 12 Rondella Superseded
Location: 21 Prev | Next Part: 16100811 *Qty: 12 Dado Superseded
Location: 22 Prev | Next Part: 108966 *Qty: 4 Prigioniero fissaggio basamento $13.80
Location: 23 Prev | Next Part: 11198071 *Qty: 4 Rondella Superseded
Location: 24 Prev | Next Part: 16100811 *Qty: 4 Dado Superseded
Location: 25 Prev | Next Part: 13450421 *Qty: 2 THREADED STUD $0.90
Location: 26 Prev | Next Part: 15972021 *Qty: 2 Bullone $1.32
Location: 27 Prev | Next Part: 12638601 *Qty: 4 Rondella $0.90
Location: 28 Prev | Next Part: 12574511 *Qty: 4 Dado autobloccante Superseded
Location: 29 Prev | Next Part: 104189 *Qty: 1 Bullone $10.71
Location: 30 Prev | Next Part: 13518021 *Qty: 2 THREADED STUD $5.68
Location: 31 Prev | Next Part: 13517821 *Qty: 1 THREADED STUD Superseded
Location: 32 Prev | Next Part: 107711 *Qty: 1 Bullone $6.80
Location: 33 Prev | Next Part: 10519601 *Qty: 5 Rondella Superseded
Location: 34 Prev | Next Part: 16104111 *Qty: 5 Dado autobloccante Superseded
Location: 35 Prev | Next Part: 12429721 *Qty: 5 THREADED STUD $0.90
Location: 36 Prev | Next Part: 12601371 *Qty: 6 Rondella elastica Superseded
Location: 37 Prev | Next Part: 16104111 *Qty: 6 Dado Superseded
Location: 38 Prev | Next Part: 13517221 *Qty: 5 THREADED STUD Superseded
Location: 39 Prev | Next Part: 16044221 *Qty: 1 Vite fiss. Coperchio e massa gruppo propulsore Call
Location: 39 Prev | Next Part: 16044121 *Qty: 2 Vite $0.90
Location: 40 Prev | Next Part: 13525770 *Qty: 3 Heli - coil $0.90
Location: 41 Prev | Next Part: 16100811 *Qty: 5 Dado Superseded
Location: 42 Prev | Next Part: 11198071 *Qty: 8 Rondella Superseded
Location: 43 Prev | Next Part: 13541121 *Qty: 30 THREADED STUD Superseded
Location: 44 Prev | Next Part: 11197771 *Qty: 30 Rondella Superseded
Location: 45 Prev | Next Part: 15896211 *Qty: 30 Dado Superseded
Location: 46 Prev | Next Part: 104218 *Qty: 1 Vite $1.46
Location: 47 Prev | Next Part: 16100811 *Qty: 1 Dado Superseded
Location: 48 Prev | Next Part: 106852 *Qty: 1 Rondella Superseded
Location: 49 Prev | Next Part: 10269650 *Qty: 1 Tappo $1.98
Location: 50 Prev | Next Part: 104280 *Qty: 1 Tappo $6.54
Location: 51 Prev | Next Part: 10275001 *Qty: 1 Tappo Superseded
Location: 52 Prev | Next Part: 10263460 *Qty: 3 Guarnizione Superseded
Location: 53 Prev | Next Part: 103838 *Qty: 2 Grano $3.06
Location: 54 Prev | Next Part: 108226 *Qty: 1 Coperchio laterals differenziale
Con l''assieme n. 115179
$163.68
Location: 55 Prev | Next Part: 103839 *Qty: 2 Anellino $9.47
Location: 56 Prev | Next Part: 103425 *Qty: 1 Idem spessore mm 3,00 $68.09
Location: 56 Prev | Next Part: 109145 *Qty: 1 Idem spessore mm 4,3 $37.57
Location: 56 Prev | Next Part: 103426 *Qty: 1 Idem spessore mm 3,20 $145.12
Location: 56 Prev | Next Part: 103231 *Qty: 1 Distanziale per cuscinetti differenziale, spessore mm 2,862 (di eventuale montaggio) Superseded
Location: 56 Prev | Next Part: 103424 *Qty: 1 Idem spessore mm 2,80 $68.09
Location: 56 Prev | Next Part: 103423 *Qty: 1 Idem spessore mm 2,60 Call
Location: 56 Prev | Next Part: 103422 *Qty: 1 Idem spessore mm 2,40 $68.09
Location: 57 Prev | Next Part: 104300 *Qty: 2 Anello di tenuta
In alternative al n. 108157
Superseded
Location: 58 Prev | Next Part: 13543421 *Qty: 1 THREADED STUD Superseded
Location: 59 Prev | Next Part: 107589 *Qty: 2 Paratia verticale $22.20
Location: 60 Prev | Next Part: 100033 *Qty: 4 Ribattino $0.90
Location: 61 Prev | Next Part: 13539021 *Qty: 8 Prigioniero per paratia inferiore Superseded
Location: 62 Prev | Next Part: 15896411 *Qty: 8 Dado Superseded
Location: 63 Prev | Next Part: 106849 *Qty: 8 Rondella elastica Superseded
Location: 64 Prev | Next Part: 12638101 *Qty: 8 Rondella Superseded
Location: 65 Prev | Next Part: 10275040 *Qty: 1 Tappo Superseded
Location: 66 Prev | Next Part: 112254 *Qty: 2 Heli - coil $5.06
Location: 67 Prev | Next Part: 116953 *Qty: 1 Ingranaggio conduttore pompa olio $367.90
Location: 68 Prev | Next Part: 113082 *Qty: 1 Ingranaggio condotto pompa olio $314.69
Location: 69 Prev | Next Part: 113086 *Qty: 1 Coperchio pompa olio $118.23
Location: 70 Prev | Next Part: 11000921 *Qty: 4 THREADED STUD Call
Location: 71 Prev | Next Part: 12601171 *Qty: 4 Rondella Superseded
Location: 72 Prev | Next Part: 15896411 *Qty: 4 Dado Superseded
Location: 73 Prev | Next Part: 115538 *Qty: 1 Filtro pompa olio Call
Location: 74 Prev | Next Part: 101034 *Qty: 1 Anello di tenuta $1.72
Location: 75 Prev | Next Part: 113088 *Qty: 1 Sede $139.62
Location: 76 Prev | Next Part: 116987 *Qty: 1 Generatore d''impulsi $272.49
Location: 77 Prev | Next Part: 10263460 *Qty: 1 Guarnizione Superseded
Location: 78 Prev | Next Part: 114460 *Qty: 1 Cappuccio $27.84
Location: 79 Prev | Next Part: 101032 *Qty: 1 Anello di tenuta $1.18

* Quantity shown indicates the number of pieces used in the diagram.
