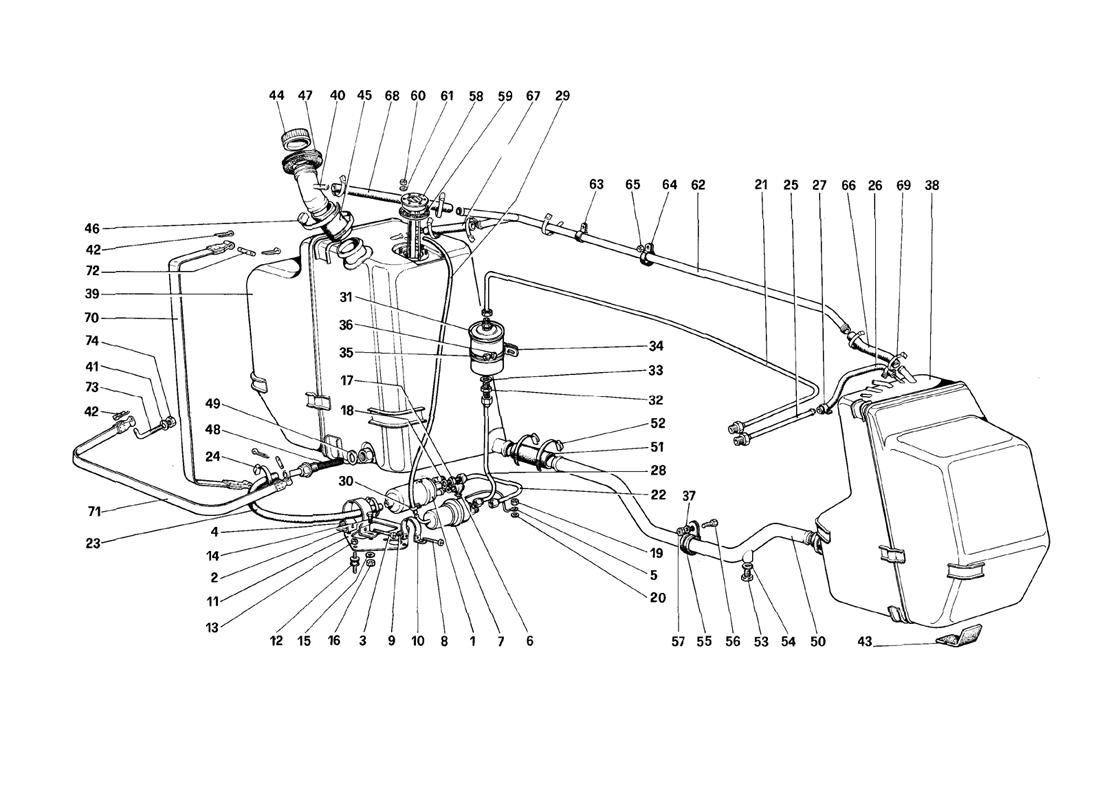

FUEL PUMP AND PIPES

FUEL PUMP AND PIPES

Location Part # Quantity* Description Price Add To Cart
1 113976 1 Pompa carburante $672.70
2 113673 1 Fascetta tenuta pompa Superseded
3 10377311 1 Vite Unavailable
4 14089311 1 Dado Unavailable
5 115153 1 Cavetto di massa Unavailable
6 107003 2 Cappuccio in gomma Unavailable
7 113978 1 Accumulators $481.48
8 10376111 1 Vite Unavailable
9 14089311 1 Dado Unavailable
10 113674 1 Fascetta Unavailable
11 115513 1 Supporto pompa e accumulators $71.72
12 102947 3 Tassello elastico $17.42
13 12574221 3 Dado Superseded
14 10902121 4 Vite Superseded
15 10519421 2 Rondella Superseded
16 12574221 4 Dado Superseded
17 109797 1 Raccordo pompa $43.06
18 113910 1 Guarnizione Superseded
19 15896221 1 Dado Superseded
20 10571570 1 Rosetta Unavailable
21 116571 1 Tubo dal filtro al dosatore Unavailable
22 115532 1 Tubo dalla pompa all''accumulatore Unavailable
23 115137 1 Tubo filtro - pompa Superseded
24 12179590 2 Fascetta Superseded
25 115234 1 Tubo rif lusso $48.27
26 114879 1 Tubo $1.85
27 104879 2 Fascetta Superseded
28 115205 1 Tubo dall''accumulatore al filtro Superseded
29 115236 1 Tubo riflusso Superseded
30 10168590 2 Fascetta Superseded
31 178647 2 Fuel Filter
Use on Exhaustion of 115738
Unavailable
31 115738 1 Filtro benzina Superseded
32 109797 1 Raccordo entrata carburante $43.06
33 113910 1 Guarnizione Superseded
34 115140 1 Staffa fissaggio filtro $17.88
35 12574521 1 Dado $1.16
36 13550401 1 Rondella $1.99
37 12643701 1 Rondella Superseded
38 116605 1 Serbatoio Dx $3,222.21
39 116606 1 Serbatoio Sx $2,924.58
40 109321 1 Bocchettone di carico Unavailable
41 13605711 1 Distanziale (Di eventuale montaggio) $1.12
42 10796401 12 Copiglia Superseded
43 107889 14 Spessore adattamento serbatoi Unavailable
44 113401 1 Tappo di carico Unavailable
45 114282 1 Manicotto
Dopo esaur. Vale n. 117618
Unavailable
46 12174790 2 Fascetta Superseded
47 101465 1 Guarnizione Unavailable
48 116870 1 Filtro sul serbatoio Superseded
49 102645 1 Guarnizione $6.27
50 115482 1 Tubo collegamento serbatoi Unavailable
51 114277 2 Manicotto $98.33
52 108785 4 Fscetta Unavailable
53 10300771 1 Tappo di scarico $17.00
54 10278650 1 Guarnizione $0.90
55 106195 1 Fascetta sostengno tubo $72.35
56 10902121 1 Vite Superseded
57 12574211 1 Dado Superseded
58 108644 1 Comando mdicatore livello $129.00
59 101462 1 Guarnizione $23.24
60 10794011 6 Dado Unavailable
61 106848 6 Rondella Unavailable
62 108521 1 Tubo sfiato $182.70
63 10450490 1 Fascetta Unavailable
64 10441790 2 Fascetta . $0.90
65 12574211 3 Dado Superseded
66 114917 1 Tubo Superseded
67 114916 1 Tubo Superseded
68 109354 1 Tubo Unavailable
69 100507 6 Fascetta Unavailable
70 109328 2 Nastro fiss. verticale serbatoi $217.13
71 110937 2 Nastro fiss. trasversale serbatoi $85.42
72 103447 4 Perno $35.61
73 11311271 4 Tirante Unavailable
74 16104111 4 Dado Superseded

* Quantity shown indicates the number of pieces used in the diagram.
