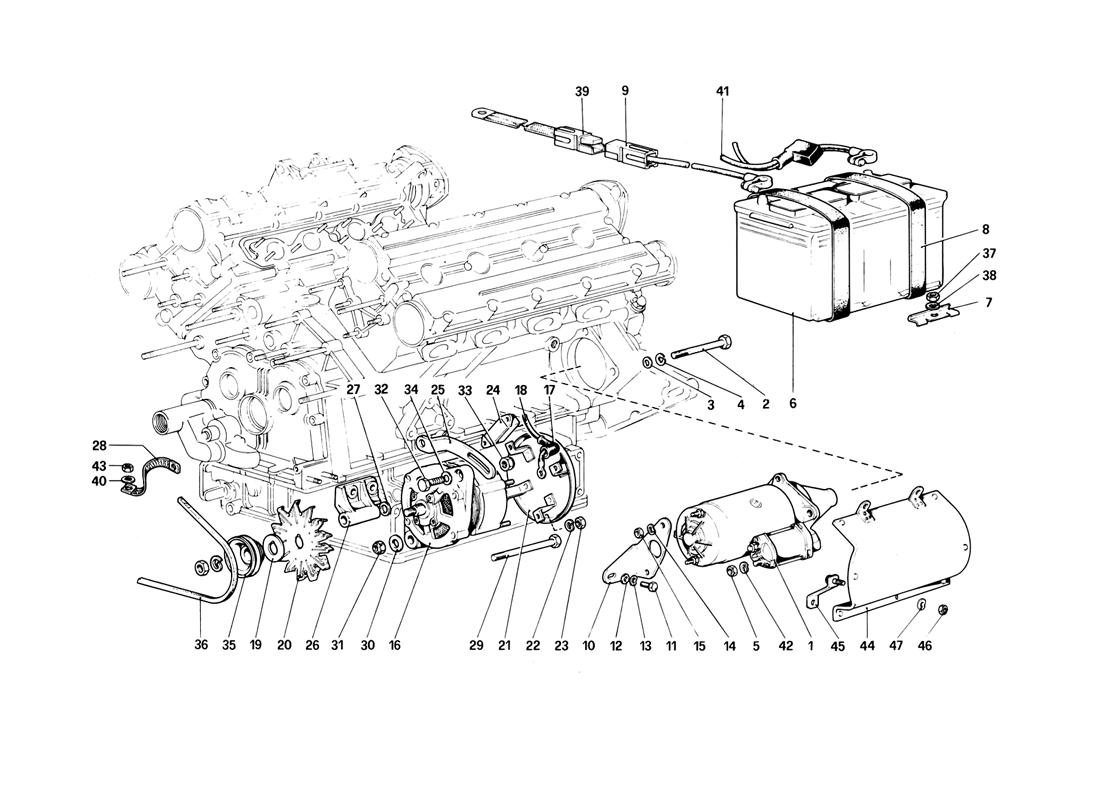

ELECTRIC GENERATING SYSTEM

Go to Split View

ELECTRIC GENERATING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 103959 *Qty: 1 Motorino avviamento
FIAT
Call
Location: 1 Prev | Next Part: 106966 *Qty: 1 Motorino avviamento
BOSCH
$2,282.36
Location: 2 Prev | Next Part: 16045031 *Qty: 3 Bullone fissaggio motorino Call
Location: 3 Prev | Next Part: 11198071 *Qty: 3 Rondella Superseded
Location: 4 Prev | Next Part: 10519621 *Qty: 3 Rondella $0.90
Location: 5 Prev | Next Part: 16100811 *Qty: 1 Dado
Solo per motorino BOSCH
Superseded
Location: 6 Prev | Next Part: 104163 *Qty: 1 Batteria 12V - 66AH - 300A
In alternativa n. 104163
Call
Location: 6 Prev | Next Part: 111354 *Qty: 1 Batteria 12V - 66AH - 300A
Solo per versione Tropico
Call
Location: 7 Prev | Next Part: 106525 *Qty: 1 Staffa $67.00
Location: 8 Prev | Next Part: 105694 *Qty: 1 Nastro sollevamento batteria Call
Location: 9 Prev | Next Part: 115660 *Qty: 1 Cavo dalla batteria al blocchetto stacca batteria $168.59
Location: 10 Prev | Next Part: 107129 *Qty: 1 Staffa sostegno
Solo per motorino BOSCH
$56.81
Location: 11 Prev | Next Part: 15970721 *Qty: 1 Bullone
Solo per motorino BOSCH
$0.90
Location: 12 Prev | Next Part: 105391 *Qty: 1 Rondella
Solo per motorino BOSCH
$3.06
Location: 13 Prev | Next Part: 106853 *Qty: 1 Rondella
Solo per motorino BOSCH
Superseded
Location: 14 Prev | Next Part: 106850 *Qty: 2 Rondella
Solo per motorino BOSCH
Superseded
Location: 15 Prev | Next Part: 15896211 *Qty: 2 Dado
Solo per motorino BOSCH
Superseded
Location: 16 Prev | Next Part: 110073 *Qty: 1 Alternatore BOSCH 65A Call
Location: 17 Prev | Next Part: 107003 *Qty: 1 Cappuccio protezione cavo $6.90
Location: 18 Prev | Next Part: 106989 *Qty: 1 Cavi collegamento alternatore $79.25
Location: 19 Prev | Next Part: 106543 *Qty: 1 Rondella di spallamento $1.66
Location: 20 Prev | Next Part: 110111 *Qty: 1 Ventola $8.13
Location: 21 Prev | Next Part: 107221 *Qty: 1 Paratia di protezione Call
Location: 22 Prev | Next Part: 106849 *Qty: 4 Rondella Superseded
Location: 23 Prev | Next Part: 15896411 *Qty: 4 Dado Superseded
Location: 24 Prev | Next Part: 107396 *Qty: 1 Regolatore di tensione $92.13
Location: 25 Prev | Next Part: 105940 *Qty: 1 Staffa regolazione $24.24
Location: 26 Prev | Next Part: 105158 *Qty: 1 Supporto inferiore $1,261.97
Location: 27 Prev | Next Part: 106426 *Qty: 1 Rondella $3.04
Location: 28 Prev | Next Part: 115668 *Qty: 1 Cavo di massa motore Superseded
Location: 29 Prev | Next Part: 105390 *Qty: 1 Bullone $4.08
Location: 30 Prev | Next Part: 11198671 *Qty: 1 Rondella conica Superseded
Location: 31 Prev | Next Part: 16109221 *Qty: 1 Dado $1.22
Location: 32 Prev | Next Part: 15970931 *Qty: 1 Vite Call
Location: 33 Prev | Next Part: 13598021 *Qty: 1 Dado $4.51
Location: 34 Prev | Next Part: 105391 *Qty: 1 Rondella $3.06
Location: 35 Prev | Next Part: 116723 *Qty: 1 Puleggia $153.03
Location: 36 Prev | Next Part: 117435 *Qty: 1 Cinghia comando alternatore e pompa acqua $58.86
Location: 37 Prev | Next Part: 16100811 *Qty: 1 Dado Superseded
Location: 38 Prev | Next Part: 106852 *Qty: 1 Rondella Superseded
Location: 39 Prev | Next Part: 115667 *Qty: 1 Treccia in rame stacca batteria - massa telaio Call
Location: 40 Prev | Next Part: 10615671 *Qty: 1 Rondella $0.90
Location: 41 Prev | Next Part: 109588 *Qty: 1 Cavo batteria - motorino $133.35
Location: 42 Prev | Next Part: 10516670 *Qty: 1 Rondella
Solo per motorino BOSCH
$0.90
Location: 43 Prev | Next Part: 16100821 *Qty: 1 Dado $3.46
Location: 44 Prev | Next Part: 107038 *Qty: 1 Paratia di protezione $301.19
Location: 45 Prev | Next Part: 107039 *Qty: 1 Staffa sostegno paratia $15.62
Location: 46 Prev | Next Part: 15896211 *Qty: 1 Dado Superseded
Location: 47 Prev | Next Part: 12643701 *Qty: 1 Rondella Superseded

* Quantity shown indicates the number of pieces used in the diagram.
