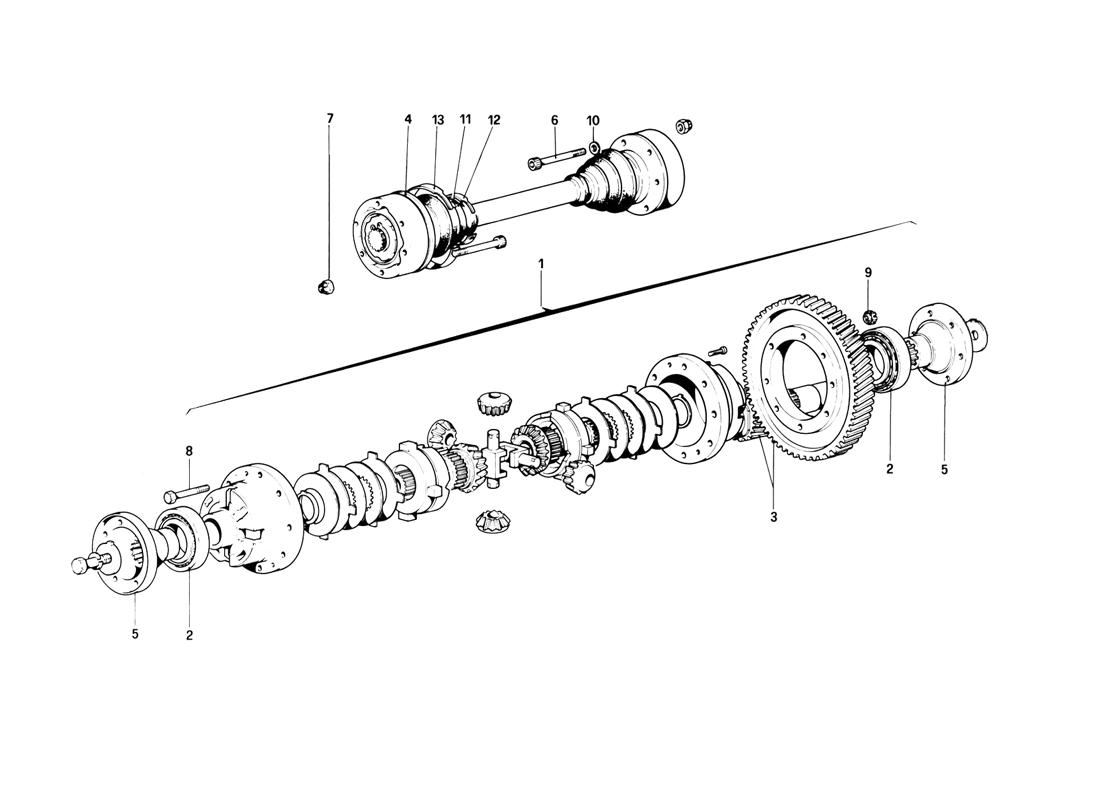

DIFFERENTIAL AND AXLE SHAFTS

Go to Split View

DIFFERENTIAL AND AXLE SHAFTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 106769 *Qty: 1 Differenziale completo di bulloni $2,733.46
Location: 2 Prev | Next Part: 101634 *Qty: 2 Cuscinetto $207.69
Location: 3 Prev | Next Part: 118122 *Qty: 1 Coppia cilindrica Superseded
Location: 3 Prev | Next Part: 113580 *Qty: 1 Corona per differenziale
Col complessivo n. 1 18122
Call
Location: 4 Prev | Next Part: 103885 *Qty: 2 Assieme attacco semiasse Call
Location: 5 Prev | Next Part: 111522 *Qty: 2 Flangia attacco semiasse Superseded
Location: 6 Prev | Next Part: 101632 *Qty: 24 Bullone $12.67
Location: 7 Prev | Next Part: 101633 *Qty: 24 Dado autobloccante $9.55
Location: 8 Prev | Next Part: 106777 *Qty: 8 Vite fissaggio corona $48.32
Location: 9 Prev | Next Part: 104011 *Qty: 8 Dado $12.96
Location: 10 Prev | Next Part: 12638621 *Qty: 6 Rondella tranciata
Solo per flangia Sx.
$0.90
Location: 11 Prev | Next Part: 95860404 *Qty: 4 Cuffia semiasse $27.50
Location: 12 Prev | Next Part: 154213 *Qty: 4 Fascetta piccola $5.67
Location: 13 Prev | Next Part: 117957 *Qty: 4 Fascetta grande Superseded

* Quantity shown indicates the number of pieces used in the diagram.
