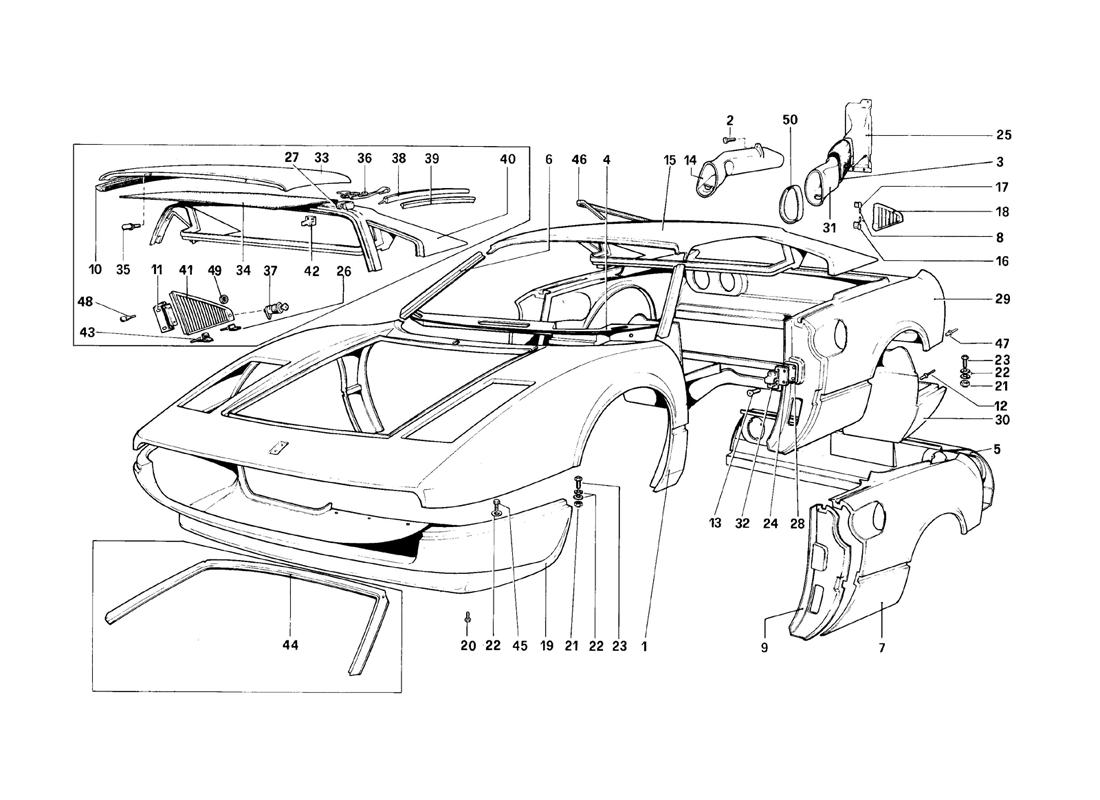

BODY SHELL - OUTER ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60213907 *Qty: 1 Rivestimento anteriore Call
Location: 2 Prev | Next Part: 15186501 *Qty: 1 Vite fiss. condotto post, presa aria Dx. Call
Location: 3 Prev | Next Part: 107533 *Qty: 1 Manicotto presa aria Sx. $58.37
Location: 4 Prev | Next Part: 60258803 *Qty: 1 Sottoplancia
Per GD vale 60311909
Superseded
Location: 5 Prev | Next Part: 60217403 *Qty: 1 Rivestimento sede targa $786.71
Location: 6 Prev | Next Part: 60381308 *Qty: 1 Rivestimento piantone Dx. GTB Superseded
Location: 7 Prev | Next Part: 60358900 *Qty: 1 Parafango posteriore Dx. GTS $2,859.38
Location: 7 Prev | Next Part: 60359007 *Qty: 1 Parafango posteriore Sx. GTS $2,868.62
Location: 7 Prev | Next Part: 60359205 *Qty: 1 Parafango posteriore Sx. GTB $4,118.13
Location: 7 Prev | Next Part: 60359106 *Qty: 1 Parafango posteriore Dx. GTB $4,118.13
Location: 8 Prev | Next Part: 60042108 *Qty: 2 Perno per cerniere GTB $2.11
Location: 9 Prev | Next Part: 60216900 *Qty: 1 Lesena Sx.
Per GD vale 60891100
$141.49
Location: 9 Prev | Next Part: 60216801 *Qty: 1 Lesena Dx.
Per GD vaie 60891000
$141.49
Location: 10 Prev | Next Part: 60398104 *Qty: 2 Guarnizione di tenuta GTS Call
Location: 11 Prev | Next Part: 60325305 *Qty: 2 Cerniera griglia GTS $146.70
Location: 12 Prev | Next Part: 60159001 *Qty: 20 Rivetto fissaggio sottoscocca post. $1.01
Location: 13 Prev | Next Part: 20287504 *Qty: 8 Vite fiss. scontrino $2.48
Location: 14 Prev | Next Part: 60708900 *Qty: 1 Condotto presa aria Dx. $207.38
Location: 15 Prev | Next Part: 60214806 *Qty: 1 Rivestimento padiglione GTB $6,956.23
Location: 16 Prev | Next Part: 60040706 *Qty: 1 Cerniera inferiore griglia GTB $12.23
Location: 17 Prev | Next Part: 60040805 *Qty: 1 Cerniera superiore griglia GTB $11.77
Location: 18 Prev | Next Part: 60337409 *Qty: 1 Griglia laterale Sx. GTB $246.76
Location: 18 Prev | Next Part: 60370004 *Qty: 1 Griglia laterale Dx. GTB $246.76
Location: 19 Prev | Next Part: 60395902 *Qty: 1 Sottoscocca anteriore in resina
Spoyler normale
Superseded
Location: 19 Prev | Next Part: 60892700 *Qty: 1 Sottoscocca anteriore in acciaio
Spoyler normale
Call
Location: 19 Prev | Next Part: 60280500 *Qty: 1 Sottoscocca anteriore
Spoyler maggiorato
Superseded
Location: 20 Prev | Next Part: 15903801 *Qty: 5 Vite fiss. sottoscocca anteriore $1.48
Location: 21 Prev | Next Part: 12574121 *Qty: 22 Dado fiss. rivestimento ant. e post. Superseded
Location: 22 Prev | Next Part: 12638101 *Qty: 49 Rondella fiss. rivestimento ant. e post. Superseded
Location: 23 Prev | Next Part: 10977721 *Qty: 18 Vite fiss. rivestimento ant. e post. Superseded
Location: 24 Prev | Next Part: 60163003 *Qty: 2 Distanziale $9.01
Location: 25 Prev | Next Part: 60222304 *Qty: 1 Condotto post, presa aria Sx. $278.47
Location: 26 Prev | Next Part: 20106001 *Qty: 2 Paracolpi griglia GTS Call
Location: 27 Prev | Next Part: 60395506 *Qty: 2 Riparo maniglia apertura tetto GTS $8.66
Location: 28 Prev | Next Part: 60602400 *Qty: 2 Guarnizione scontrino serratura porta $47.53
Location: 29 Prev | Next Part: 60214905 *Qty: 1 Rivestimento posteriore GTB
Per GO vale 60299500
Call
Location: 29 Prev | Next Part: 60339009 *Qty: 1 Rivestimento posteriore GTS
Per GD vale 60338803
Call
Location: 30 Prev | Next Part: 60728600 *Qty: 1 Rivestimento posteriore inferiore $3,304.57
Location: 31 Prev | Next Part: 60373602 *Qty: 1 Condotto ant. presa aria Sx. $353.17
Location: 32 Prev | Next Part: 20019105 *Qty: 1 Riscontro serratura Dx. $391.38
Location: 32 Prev | Next Part: 20019204 *Qty: 1 Riscontro serratura Sx. $383.93
Location: 33 Prev | Next Part: 60760100 *Qty: 1 Tetto apribile GTS $2,465.43
Location: 34 Prev | Next Part: 60750100 *Qty: 1 Rivestimento interne tetto GTS Call
Location: 35 Prev | Next Part: 60189008 *Qty: 2 Perno fiss. anteriore tetto GTS $45.00
Location: 36 Prev | Next Part: 60421500 *Qty: 2 Maniglia apertura tetto GTS $538.91
Location: 37 Prev | Next Part: 60075009 *Qty: 2 Serratura per griglie GTS Superseded
Location: 38 Prev | Next Part: 60608400 *Qty: 1 Canalino laterale Sx. GTS $324.90
Location: 38 Prev | Next Part: 60608300 *Qty: 1 Canalmo laterale Dx. GTS $324.90
Location: 39 Prev | Next Part: 60608500 *Qty: 2 Guarnizione rompigoccia GTS Call
Location: 40 Prev | Next Part: 60879600 *Qty: 1 Rivestimento padiglione GTS
Vale dal 1-2-81
$3,237.32
Location: 40 Prev | Next Part: 60172509 *Qty: 1 Rivestimento padiglione GTS
Vale fino al 31-1-81
Call
Location: 41 Prev | Next Part: 60336302 *Qty: 1 Griglia laterale Sx. GTS Call
Location: 41 Prev | Next Part: 60336203 *Qty: 1 Griglia laterale Dx. GTS $359.97
Location: 42 Prev | Next Part: 60500500 *Qty: 2 Staffa posteriore fiss. tetto GTS
Vale fino al 28-2-81
Call
Location: 42 Prev | Next Part: 60879900 *Qty: 2 Staffa posteriore fiss. tetto GTS
Vale dal 1-3-81
Superseded
Location: 43 Prev | Next Part: 60551400 *Qty: 2 Gommino centrale battuta griglia GTS $49.95
Location: 44 Prev | Next Part: 60608700 *Qty: 1 Ossatura parabrezza GTS
Vale fino al 15-11-80
$896.53
Location: 44 Prev | Next Part: 60872700 *Qty: 1 Ossatura parabrezza GTS
Vale dal 16-11-80
$784.46
Location: 45 Prev | Next Part: 10978021 *Qty: 4 Vite fiss. rivestimento ant. $0.90
Location: 46 Prev | Next Part: 60528300 *Qty: 2 Guarnizione su pinne padiglione $11.56
Location: 47 Prev | Next Part: 60225901 *Qty: 30 Rivetto fiss. rivestimento post. $1.22
Location: 48 Prev | Next Part: 60892600 *Qty: 4 Gommino cerniera griglia $12.40
Location: 49 Prev | Next Part: 60066404 *Qty: 2 Ghiera fiss. serratura griglia $44.84
Location: 50 Prev | Next Part: 60200300 *Qty: 1 Griglia presa aria Dx.
Solo per D
Call
Location: 50 Prev | Next Part: 60200409 *Qty: 1 Griglia presa aria Sx.
Solo per D
Call

* Quantity shown indicates the number of pieces used in the diagram.
