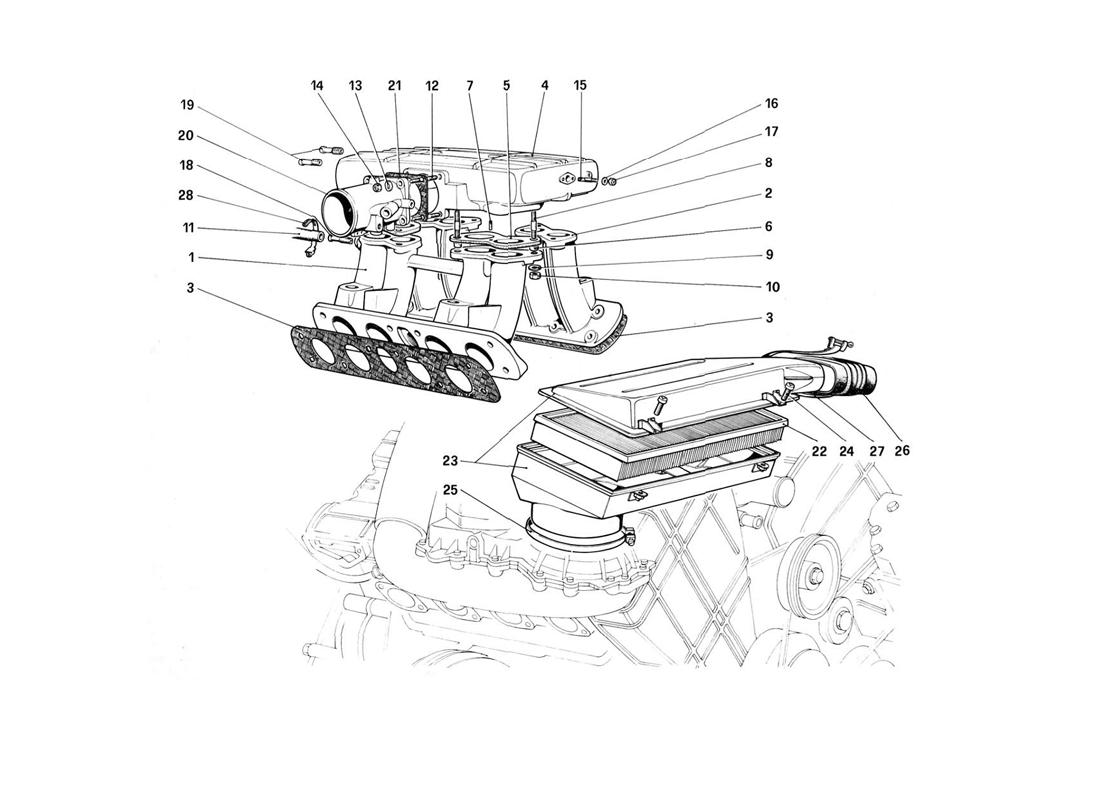

AIR INTAKE AND MANIFOLDS

Go to Split View

AIR INTAKE AND MANIFOLDS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 114604 *Qty: 1 Collettore aspirazione Dx. $1,219.13
Location: 2 Prev | Next Part: 114987 *Qty: 1 Collettore aspirazione Sx. $1,219.13
Location: 3 Prev | Next Part: 104031 *Qty: 2 Guarnizione Superseded
Location: 3 Prev | Next Part: 147674 *Qty: 2 Inlet Manifold Gasket
Use on Exhaustion of 104031
$15.54
Location: 3 Prev | Next Part: 118071 *Qty: 1 Corpo mandata aria ai collettori completo $542.20
Location: 4 Prev | Next Part: 114437 *Qty: 1 Corpo mandata aria ai collettori
Col complessivo n. 118071
Call
Location: 5 Prev | Next Part: 114983 *Qty: 2 Guarnizione $22.95
Location: 6 Prev | Next Part: 114984 *Qty: 8 Distanziale $10.08
Location: 7 Prev | Next Part: 10331111 *Qty: 4 Grano di centraggio $0.90
Location: 8 Prev | Next Part: 13543621 *Qty: 8 THREADED STUD Superseded
Location: 9 Prev | Next Part: 12201371 *Qty: 8 Rondella Call
Location: 10 Prev | Next Part: 16104121 *Qty: 8 Dado Superseded
Location: 11 Prev | Next Part: 117253 *Qty: 1 Tubo depressione servofreno $164.35
Location: 12 Prev | Next Part: 13541321 *Qty: 4 THREADED STUD Superseded
Location: 13 Prev | Next Part: 12601271 *Qty: 4 Rondella Superseded
Location: 14 Prev | Next Part: 12574221 *Qty: 4 Dado Superseded
Location: 15 Prev | Next Part: 13541521 *Qty: 2 THREADED STUD Superseded
Location: 16 Prev | Next Part: 12601271 *Qty: 2 Rondella Superseded
Location: 17 Prev | Next Part: 14054511 *Qty: 2 Dado cieco Superseded
Location: 18 Prev | Next Part: 103870 *Qty: 1 Raccordo presa depressione servofreno Call
Location: 19 Prev | Next Part: 113652 *Qty: 2 Raccordo Call
Location: 20 Prev | Next Part: 117357 *Qty: 1 Corpo farfalla completo $450.52
Location: 20 Prev | Next Part: 114720 *Qty: 1 Corpo farfalla
Col complessivo n. 1 17357
Call
Location: 21 Prev | Next Part: 115038 *Qty: 1 Guarnizione Superseded
Location: 22 Prev | Next Part: 115743 *Qty: 1 Elemento filtrante $55.69
Location: 23 Prev | Next Part: 115742 *Qty: 1 Presa aria Call
Location: 24 Prev | Next Part: 13276611 *Qty: 4 Vite $0.90
Location: 25 Prev | Next Part: 114996 *Qty: 1 Fascetta $18.56
Location: 26 Prev | Next Part: 114019 *Qty: 1 Manicotto $126.53
Location: 27 Prev | Next Part: 10300190 *Qty: 2 Fascetta Call
Location: 28 Prev | Next Part: 100507 *Qty: 2 Fascetta Call

* Quantity shown indicates the number of pieces used in the diagram.
