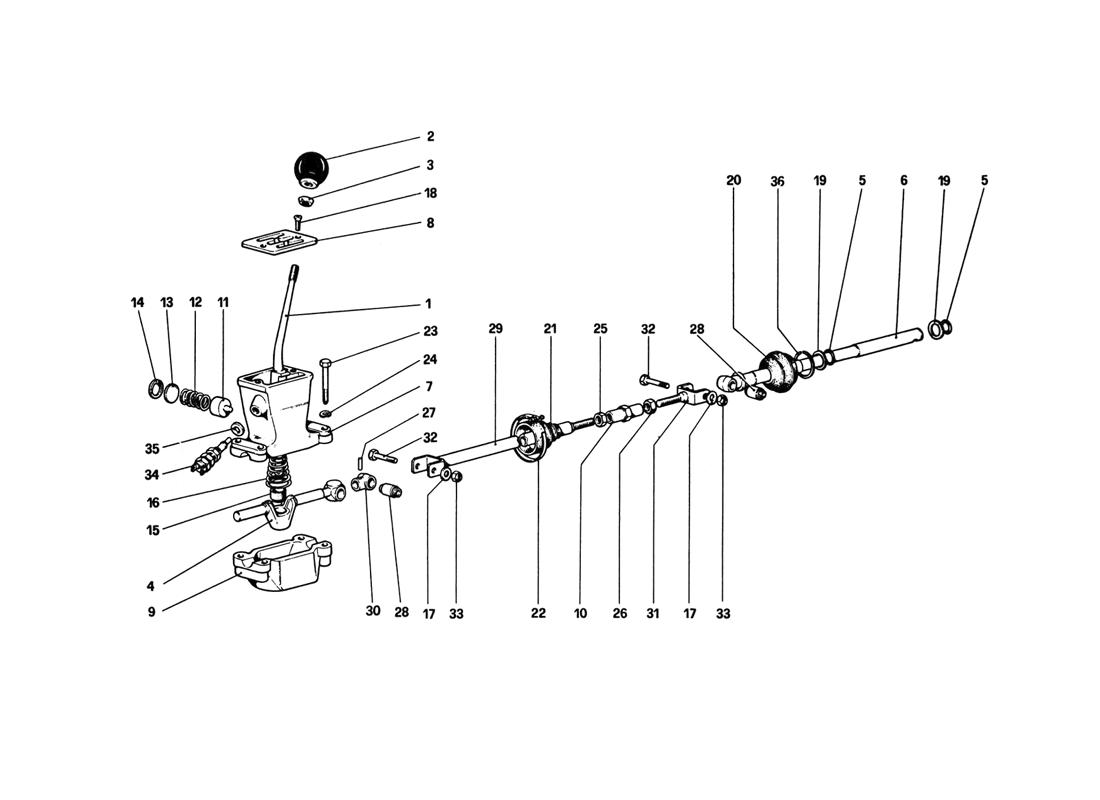

OUTSIDE GEARBOX CONTROLS

Go to Split View

OUTSIDE GEARBOX CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 109502 *Qty: 1 Leva comando cambio
Vale per GD
Call
Location: 1 Prev | Next Part: 108822 *Qty: 1 Leva comando cambio
Non vale per GD
Superseded
Location: 2 Prev | Next Part: 103301 *Qty: 1 Pomello $243.92
Location: 3 Prev | Next Part: 108010 *Qty: 1 Controdado $32.64
Location: 4 Prev | Next Part: 111446 *Qty: 1 Perno con sede snodo
Vale per GD Dopo esaurimento n. 107023
$57.25
Location: 4 Prev | Next Part: 111445 *Qty: 1 Perno con sede snodo
Dopo esaur. n. 107023- Non vale per GD
Superseded
Location: 4 Prev | Next Part: 107023 *Qty: 1 Perno con sede snodo
Vale fino ad esaurimento
$307.89
Location: 5 Prev | Next Part: 105558 *Qty: 2 Anello di tenuta $1.44
Location: 6 Prev | Next Part: 109767 *Qty: 1 Albero per leva comando bilancieri Call
Location: 7 Prev | Next Part: 105438 *Qty: 1 Gearbox casing
Col complessivo n. 108848
Call
Location: 7 Prev | Next Part: 108848 *Qty: 1 Scatola comando cambio completa Superseded
Location: 8 Prev | Next Part: 106433 *Qty: 1 Selettore marce Superseded
Location: 9 Prev | Next Part: 104315 *Qty: 1 Coperchio inferiore
Col complessivo n. 108848
Call
Location: 10 Prev | Next Part: 103321 *Qty: 1 Tirante registro $7.60
Location: 11 Prev | Next Part: 108824 *Qty: 1 Puntalino richiamo leva $64.37
Location: 12 Prev | Next Part: 103318 *Qty: 1 Molla $5.36
Location: 13 Prev | Next Part: 103319 *Qty: 1 Dischetto ritegno molla $24.43
Location: 14 Prev | Next Part: 103326 *Qty: 1 Anello seeger $0.90
Location: 15 Prev | Next Part: 108214 *Qty: 1 Sede sferica Superseded
Location: 16 Prev | Next Part: 108823 *Qty: 1 Molla $4.93
Location: 17 Prev | Next Part: 10519601 *Qty: 2 Rondella Superseded
Location: 18 Prev | Next Part: 101619 *Qty: 2 Vite $11.73
Location: 19 Prev | Next Part: 108247 *Qty: 2 Rondella di spallamento $26.27
Location: 20 Prev | Next Part: 106168 *Qty: 1 Soft ietto di protezione $17.59
Location: 21 Prev | Next Part: 106687 *Qty: 1 Soffietto di protezione $8.32
Location: 22 Prev | Next Part: 10291490 *Qty: 1 Fascetta $1.87
Location: 23 Prev | Next Part: 16136621 *Qty: 4 Vite $1.87
Location: 24 Prev | Next Part: 12601371 *Qty: 4 Rondella ondulata Superseded
Location: 25 Prev | Next Part: 10791221 *Qty: 1 Controdado (filetto Dx.) $4.61
Location: 26 Prev | Next Part: 10791921 *Qty: 1 Controdado (filetto Sx.) $4.59
Location: 27 Prev | Next Part: 103327 *Qty: 1 Spina
Vale fino ad esaurimento n. 109563 en. 109562
$2.52
Location: 28 Prev | Next Part: 106814 *Qty: 2 Silentbloc Superseded
Location: 29 Prev | Next Part: 108087 *Qty: 1 Barra comando cambio $179.08
Location: 30 Prev | Next Part: 109562 *Qty: 1 Occhiello per giunto
Vale fino ad esaurimento n. 107023. Vale per GD
$62.49
Location: 30 Prev | Next Part: 109563 *Qty: 1 Occhiello per giunto
Vale fino esaur. n. 107023 Non vale per GD
$66.34
Location: 31 Prev | Next Part: 106820 *Qty: 1 Forcellino $231.00
Location: 32 Prev | Next Part: 107830 *Qty: 2 Bullone $5.85
Location: 33 Prev | Next Part: 101309 *Qty: 2 Dado autobloccante Call
Location: 34 Prev | Next Part: 104320 *Qty: 1 Interruttore RM Superseded
Location: 35 Prev | Next Part: 12601571 *Qty: 1 Rondella ondulata $0.90
Location: 36 Prev | Next Part: 104244 *Qty: 1 Anello tenuta soffietto Call

* Quantity shown indicates the number of pieces used in the diagram.
