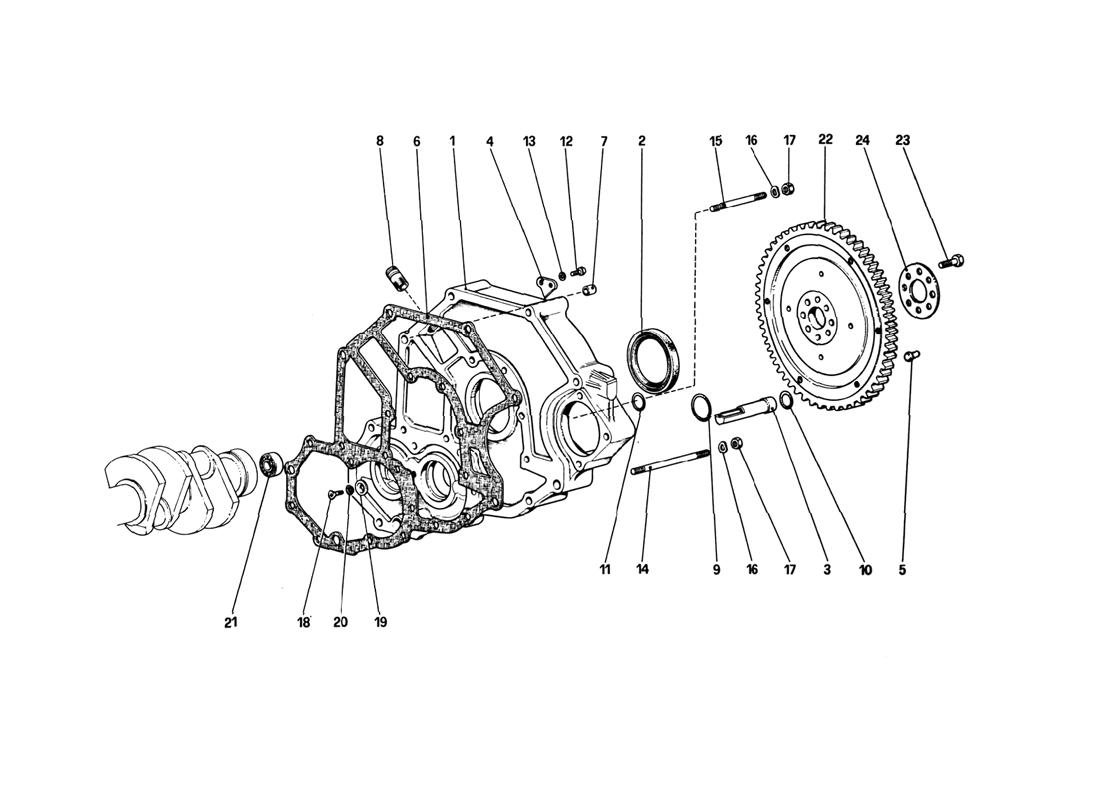

FLYWHEEL AND CLUTCH HOUSING SPACER

Go to Split View

FLYWHEEL AND CLUTCH HOUSING SPACER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 107997 *Qty: 1 Corpo intermedio
Col complessivo n. 109117
Call
Location: 1 Prev | Next Part: 109117 *Qty: 1 Corpo intermedio completo $1,238.37
Location: 2 Prev | Next Part: 106244 *Qty: 1 Anello di tenuta Call
Location: 3 Prev | Next Part: 104035 *Qty: 1 Tubo passaggio olio $43.24
Location: 4 Prev | Next Part: 114603 *Qty: 1 Piastrina riferimento fasatura
Dopo esaurimento n. 104034
$14.11
Location: 4 Prev | Next Part: 104034 *Qty: 1 Piastrina riferimento fasatura Superseded
Location: 5 Prev | Next Part: 101535 *Qty: 3 Grano $29.67
Location: 6 Prev | Next Part: 104202 *Qty: 1 Guarnizione Superseded
Location: 7 Prev | Next Part: 102692 *Qty: 1 Grano $6.45
Location: 8 Prev | Next Part: 102705 *Qty: 1 Raccordo $32.94
Location: 9 Prev | Next Part: 114947 *Qty: 1 Anello di tenuta
Con campana frizione n.114952 e 116377
$2.81
Location: 9 Prev | Next Part: 103021 *Qty: 1 Anello di tenuta
Con campana frizione n.1 08940
$2.81
Location: 10 Prev | Next Part: 103775 *Qty: 1 Anello di tenuta $2.11
Location: 11 Prev | Next Part: 104214 *Qty: 1 Anello di tenuta $3.04
Location: 12 Prev | Next Part: 10977621 *Qty: 2 Vite Superseded
Location: 13 Prev | Next Part: 106849 *Qty: 2 Rondella elastica Superseded
Location: 14 Prev | Next Part: 104217 *Qty: 1 Prigioniero lungo Call
Location: 15 Prev | Next Part: 13518521 *Qty: 1 Prigioniero corto Call
Location: 16 Prev | Next Part: 11198071 *Qty: 2 Rondella Superseded
Location: 17 Prev | Next Part: 16100811 *Qty: 2 Dado Superseded
Location: 18 Prev | Next Part: 111213 *Qty: 1 Vite
Dopo esaur. vale n. 108040
$0.90
Location: 19 Prev | Next Part: 108039 *Qty: 1 Rondella $4.08
Location: 20 Prev | Next Part: 108041 *Qty: 1 Rondella $0.90
Location: 21 Prev | Next Part: 103877 *Qty: 1 Cuscinetto $33.34
Location: 22 Prev | Next Part: 108248 *Qty: 1 Volano motore
Vale per AUS
Call
Location: 22 Prev | Next Part: 108890 *Qty: 1 Volano motore
Non vale per AUS
Superseded
Location: 23 Prev | Next Part: 103875 *Qty: 8 Bullone Superseded
Location: 24 Prev | Next Part: 103876 *Qty: 1 Rondella $12.53

* Quantity shown indicates the number of pieces used in the diagram.
