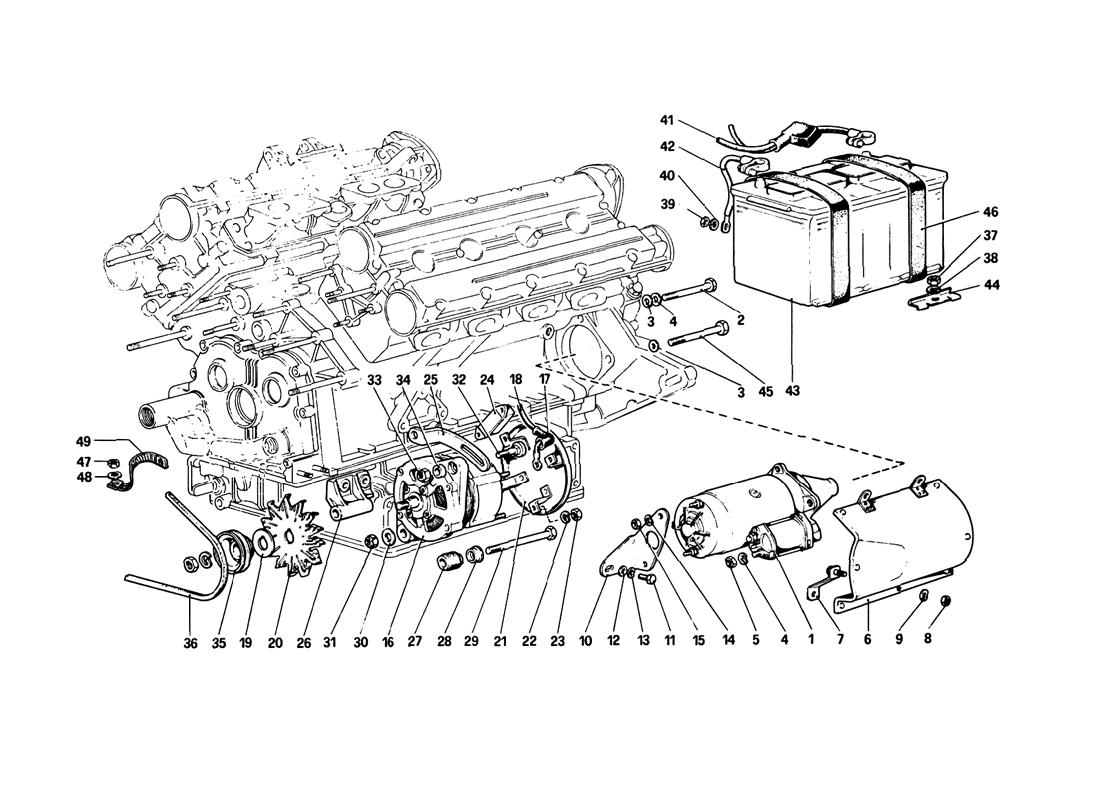

ELECTRIC GENERATING SYSTEM

Go to Split View

ELECTRIC GENERATING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 103959 *Qty: 1 Motorino avviamento (FIAT) Call
Location: 1 Prev | Next Part: 106966 *Qty: 1 Motorino avviamento (BOSCH) $2,282.36
Location: 2 Prev | Next Part: 16045031 *Qty: 2 Bullone fissaggio motorino
Per GTS q= 3
Call
Location: 3 Prev | Next Part: 11198071 *Qty: 3 Rondella Superseded
Location: 4 Prev | Next Part: 10519621 *Qty: 2 Rondella
Per GTS q = 3
$0.90
Location: 5 Prev | Next Part: 10516670 *Qty: 1 Rondella (solo per motorino BOSCH) $0.90
Location: 5 Prev | Next Part: 16100811 *Qty: 1 Dado (solo per motorino BOSCH) Superseded
Location: 6 Prev | Next Part: 107038 *Qty: 1 Paratia di protezione
Non vale per AUS
$301.19
Location: 7 Prev | Next Part: 107039 *Qty: 1 Staffa sostegno paratia
Non vale per AUS
$16.12
Location: 8 Prev | Next Part: 15896211 *Qty: 1 Dado
Non vale per AUS
Superseded
Location: 9 Prev | Next Part: 12643701 *Qty: 1 Rondella Superseded
Location: 10 Prev | Next Part: 107129 *Qty: 1 Staffa sostegno (solo per motorino BOSCH) $58.60
Location: 11 Prev | Next Part: 15970721 *Qty: 1 Bullone (solo per motorino BOSCH) $0.90
Location: 12 Prev | Next Part: 105391 *Qty: 1 Rondella (solo per motorino BOSCH) $3.15
Location: 13 Prev | Next Part: 106853 *Qty: 1 Rondella (solo per motorino BOSCH) Superseded
Location: 14 Prev | Next Part: 106850 *Qty: 2 Rondella (solo per motorino BOSCH) Superseded
Location: 15 Prev | Next Part: 15896211 *Qty: 2 Dado (solo per motorino BOSCH) Superseded
Location: 16 Prev | Next Part: 111680 *Qty: 1 Alternatore BOSCH 55A
Vale dopo esaur. n. 1 06541
$1,377.42
Location: 16 Prev | Next Part: 106541 *Qty: 1 Alternatore BOSCH 55A
Vale fino ad esaurimento
Superseded
Location: 17 Prev | Next Part: 107003 *Qty: 1 Cappuccio protezione cavo $7.12
Location: 18 Prev | Next Part: 106989 *Qty: 1 Cavi collegamento alternatore $81.73
Location: 19 Prev | Next Part: 106543 *Qty: 1 Rondella di spallamento $1.70
Location: 20 Prev | Next Part: 110111 *Qty: 1 Ventola
Serve dopo esaurim. n. 106544
$8.13
Location: 21 Prev | Next Part: 107221 *Qty: 1 Paratia di protezione Call
Location: 22 Prev | Next Part: 106849 *Qty: 4 Rondella Superseded
Location: 23 Prev | Next Part: 15896411 *Qty: 4 Dado Superseded
Location: 24 Prev | Next Part: 107396 *Qty: 1 Regolatore di tensione $95.02
Location: 25 Prev | Next Part: 105940 *Qty: 1 Staffa di regolazione $24.98
Location: 26 Prev | Next Part: 105158 *Qty: 1 Supporto inferiore $1,261.97
Location: 27 Prev | Next Part: 105392 *Qty: 1 Boccola
Ad esaurimento n. 106541
$20.54
Location: 28 Prev | Next Part: 105393 *Qty: 1 Rondella
Ad esaurimento n. 106541
$2.80
Location: 28 Prev | Next Part: 106426 *Qty: 1 Rondella
Con alternatore n. 1 1 1680
$3.13
Location: 29 Prev | Next Part: 105390 *Qty: 1 Bullone $4.21
Location: 30 Prev | Next Part: 11198671 *Qty: 1 Rondella conica Superseded
Location: 31 Prev | Next Part: 16109221 *Qty: 1 Dado $1.26
Location: 32 Prev | Next Part: 15970931 *Qty: 1 Vite
Vale dopo esaur. n. 106228
Call
Location: 32 Prev | Next Part: 106228 *Qty: 1 Vite
Vale fino ad esaurimento
Superseded
Location: 33 Prev | Next Part: 13598021 *Qty: 1 Dado
C
$4.65
Location: 34 Prev | Next Part: 106229 *Qty: 1 Distanziale
Con vite n. 106228
Superseded
Location: 34 Prev | Next Part: 105391 *Qty: 1 Distanziale
Con vite n. 15970931
$3.15
Location: 35 Prev | Next Part: 106542 *Qty: 1 Puleggia $138.92
Location: 36 Prev | Next Part: 104336 *Qty: 1 Cinghia comando alternatore e pompa acqua $45.00
Location: 37 Prev | Next Part: 16100811 *Qty: 1 Dado Superseded
Location: 38 Prev | Next Part: 106852 *Qty: 1 Rondella Superseded
Location: 39 Prev | Next Part: 16100811 *Qty: 1 Dado Superseded
Location: 40 Prev | Next Part: 10516670 *Qty: 1 Rondella $0.90
Location: 41 Prev | Next Part: 109588 *Qty: 1 Cavo collegamento batteria $137.52
Location: 42 Prev | Next Part: 107547 *Qty: 1 Cavo massa batteria Superseded
Location: 43 Prev | Next Part: 107630 *Qty: 1 Batteria 12V - 60 Ah. Call
Location: 44 Prev | Next Part: 106525 *Qty: 1 Staffa $67.00
Location: 45 Prev | Next Part: 109731 *Qty: 1 Bullone fissaggio motorino e tubo olio
Non vale per GTS
$17.73
Location: 46 Prev | Next Part: 105694 *Qty: 2 Nastro sollevamento batteria Call
Location: 47 Prev | Next Part: 16100821 *Qty: 1 Dado $3.57
Location: 48 Prev | Next Part: 12601371 *Qty: 1 Rondella Superseded
Location: 49 Prev | Next Part: 100901 *Qty: 1 Cavo massa motore Call

* Quantity shown indicates the number of pieces used in the diagram.
