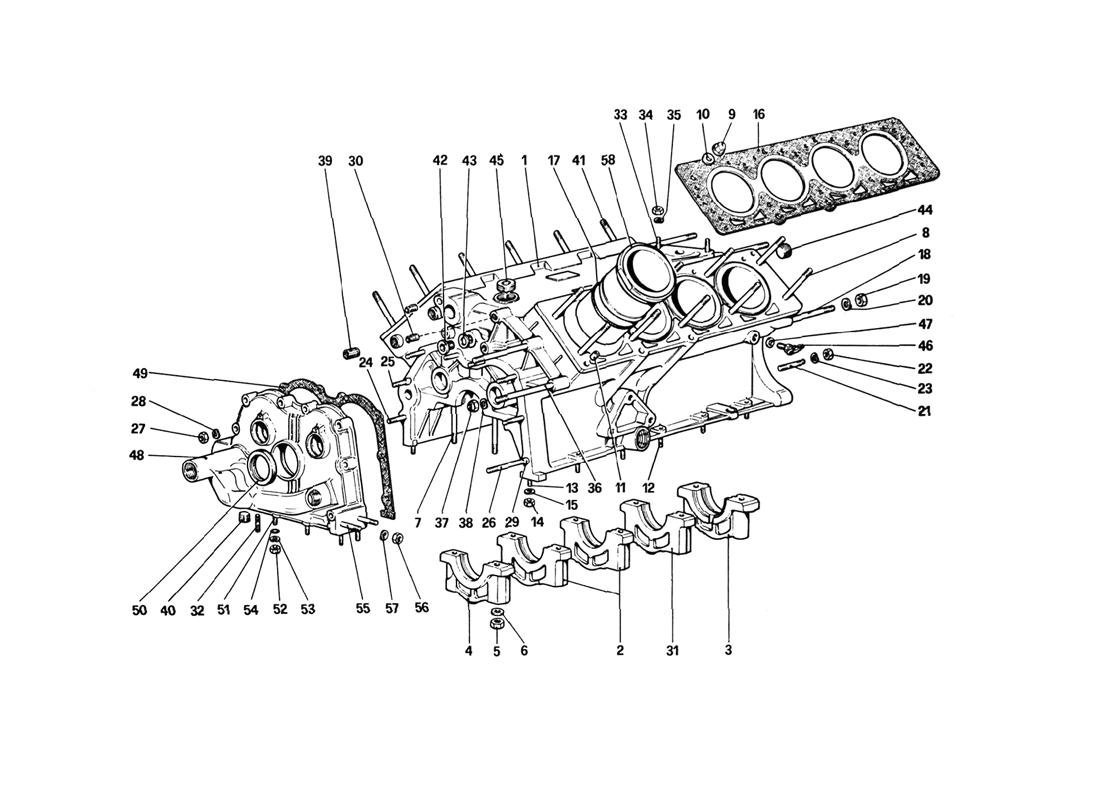

CRANKCASE

Go to Split View

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: GSET015 *Qty: 1 Set of Gaskets
Suitable for 2v models - 4v models use GSET014
Call
Location: 1 Prev | Next Part: 109760 *Qty: 1 Basamento
Col complessivo n. 109088
Call
Location: 1 Prev | Next Part: 103536 *Qty: 1 Basamento
Col eomplessivo n. 107106
Call
Location: 1 Prev | Next Part: 109282 *Qty: 1 Basamento
Vale fino ad esaurimento - Col torn pi ess ivo n. 108927
Call
Location: 1 Prev | Next Part: 108928 *Qty: 1 Basamento
Vale dopo esaur. n. 109282 - Col complessivo n. 108927
Call
Location: 1 Prev | Next Part: 109088 *Qty: 1 Basamento completo
Vale per GTS. Non vale per AUS
Call
Location: 1 Prev | Next Part: 108927 *Qty: 1 Basamento completo
Non vale per GTS e AUS
Call
Location: 1 Prev | Next Part: 107106 *Qty: 1 Basamento completo
Vale solo per AUS
Superseded
Location: 2 Prev | Next Part: 103764 *Qty: 2 Cappello per supporto intermedio anteriore e centrale
per GTS e AUS q = 3 - Col basamento completo
Call
Location: 3 Prev | Next Part: 103765 *Qty: 1 Cappello per supporto posteriore
col basamento completo
Call
Location: 4 Prev | Next Part: 109293 *Qty: 1 Cappello per supporto anteriore
Non vale per GTS e AUS - Col basamento completo
Call
Location: 4 Prev | Next Part: 103766 *Qty: 1 Cappello per supporto anteriore
vale per GTS e AUS - col basamento completo
Call
Location: 5 Prev | Next Part: 103841 *Qty: 10 Dado Superseded
Location: 6 Prev | Next Part: 103842 *Qty: 10 Rondella $3.84
Location: 7 Prev | Next Part: 104075 *Qty: 10 THREADED STUD $14.41
Location: 8 Prev | Next Part: 100098 *Qty: 18 THREADED STUD
Per GTS e AUS q = 20
$37.68
Location: 9 Prev | Next Part: 100101 *Qty: 20 Dado cieco $75.08
Location: 10 Prev | Next Part: 100100 *Qty: 20 Rondella $2.05
Location: 11 Prev | Next Part: 100097 *Qty: 4 Grano di centraggio $11.36
Location: 12 Prev | Next Part: 13517221 *Qty: 6 THREADED STUD Superseded
Location: 13 Prev | Next Part: 13516821 *Qty: 1 THREADED STUD $1.08
Location: 13 Prev | Next Part: 13516921 *Qty: 2 THREADED STUD Call
Location: 14 Prev | Next Part: 16100811 *Qty: 9 Dado Superseded
Location: 15 Prev | Next Part: 11198071 *Qty: 9 Rondella Superseded
Location: 16 Prev | Next Part: 108384 *Qty: 2 Guarnizione Superseded
Location: 17 Prev | Next Part: 110021 *Qty: 8 Anello di tenuta
In alternativa n. 102797
$9.17
Location: 18 Prev | Next Part: 13953521 *Qty: 5 THREADED STUD $9.17
Location: 19 Prev | Next Part: 12164711 *Qty: 5 Dado Superseded
Location: 20 Prev | Next Part: 12601471 *Qty: 5 Rondella Superseded
Location: 21 Prev | Next Part: 11500621 *Qty: 6 THREADED STUD $0.90
Location: 22 Prev | Next Part: 15896211 *Qty: 6 Dado Superseded
Location: 23 Prev | Next Part: 11197771 *Qty: 6 Rondella Superseded
Location: 24 Prev | Next Part: 13517321 *Qty: 6 THREADED STUD Superseded
Location: 25 Prev | Next Part: 13517421 *Qty: 1 THREADED STUD $41.97
Location: 26 Prev | Next Part: 13518221 *Qty: 1 THREADED STUD $0.90
Location: 27 Prev | Next Part: 16104411 *Qty: 8 Dado $0.90
Location: 28 Prev | Next Part: 12601371 *Qty: 8 Rondella Superseded
Location: 29 Prev | Next Part: 102704 *Qty: 2 Grano $2.18
Location: 30 Prev | Next Part: 103830 *Qty: 4 Heli-coil per vite fiss. corpo pompa Superseded
Location: 31 Prev | Next Part: 109294 *Qty: 1 Cappello per supporto intermedio post.
Non vole per GTS e AUS - Col basamento completo
Call
Location: 32 Prev | Next Part: 13543821 *Qty: 1 THREADED STUD
Non vale per GTS e AUS
Call
Location: 33 Prev | Next Part: 13517221 *Qty: 3 Prigioniero base filtro olio Superseded
Location: 34 Prev | Next Part: 16104411 *Qty: 3 Dado autobloccante $0.90
Location: 35 Prev | Next Part: 12601371 *Qty: 3 Rondella Superseded
Location: 36 Prev | Next Part: 107923 *Qty: 2 Pi igionifro fiss. carter Sx.
Dopo esaur. vale n. 115237
Superseded
Location: 37 Prev | Next Part: 102742 *Qty: 2 Dado autobloccante $0.90
Location: 38 Prev | Next Part: 12601471 *Qty: 2 Rondella Superseded
Location: 39 Prev | Next Part: 104657 *Qty: 2 Heli-coil Superseded
Location: 40 Prev | Next Part: 14326150 *Qty: 1 Tappo $0.90
Location: 41 Prev | Next Part: 103843 *Qty: 2 THREADED STUD
Non vale per GTS e AUS
Call
Location: 42 Prev | Next Part: 10275001 *Qty: 2 Tappo Superseded
Location: 43 Prev | Next Part: 10263460 *Qty: 2 Guarnizione Superseded
Location: 44 Prev | Next Part: 10269850 *Qty: 2 Tappo postetiore $2.30
Location: 45 Prev | Next Part: 10269950 *Qty: 2 Tappo superiore Call
Location: 46 Prev | Next Part: 103948 *Qty: 1 Rubinetto scarico acqua $119.33
Location: 47 Prev | Next Part: 100511 *Qty: 1 Guarnizone Superseded
Location: 48 Prev | Next Part: 109663 *Qty: 1 Coperchio anteriore (col basamento completo)
Vale per GTB fino al rnotore n. 01 105. Non vale per AUS
Call
Location: 48 Prev | Next Part: 112864 *Qty: 1 Coperchio anteriore (col basamento completo)
Vale per GTB dal motore n.01106. Non vale per AUS
Call
Location: 48 Prev | Next Part: 107588 *Qty: 1 Coperchio anteriore (col basamento completo)
Vale per GTS e AUS. Fino al motore n. 03044 GTS e2982 AUS
Call
Location: 48 Prev | Next Part: 112473 *Qty: 1 Coperchio anteriore (col basamento completo)
Vale per GTS e AUS dal motore n. 03045 GTS e 02983 AUS
Call
Location: 49 Prev | Next Part: 103791 *Qty: 1 Guarnizione Superseded
Location: 50 Prev | Next Part: 108224 *Qty: 1 Anello di tenuta
In alternaliva n. 105231
$23.62
Location: 51 Prev | Next Part: 12354521 *Qty: 5 THREADED STUD
Per GTS e AUS q = 6
Superseded
Location: 52 Prev | Next Part: 16100811 *Qty: 6 Dado Superseded
Location: 53 Prev | Next Part: 11198071 *Qty: 6 Rondella Superseded
Location: 54 Prev | Next Part: 103039 *Qty: 2 Anello di tenuta $1.15
Location: 55 Prev | Next Part: 13546221 *Qty: 2 THREADED STUD Superseded
Location: 56 Prev | Next Part: 12164711 *Qty: 2 Dado Superseded
Location: 57 Prev | Next Part: 12601471 *Qty: 2 Rondella Superseded
Location: 58 Prev | Next Part: 103588 *Qty: 8 Canna cilindro $515.07

* Quantity shown indicates the number of pieces used in the diagram.
