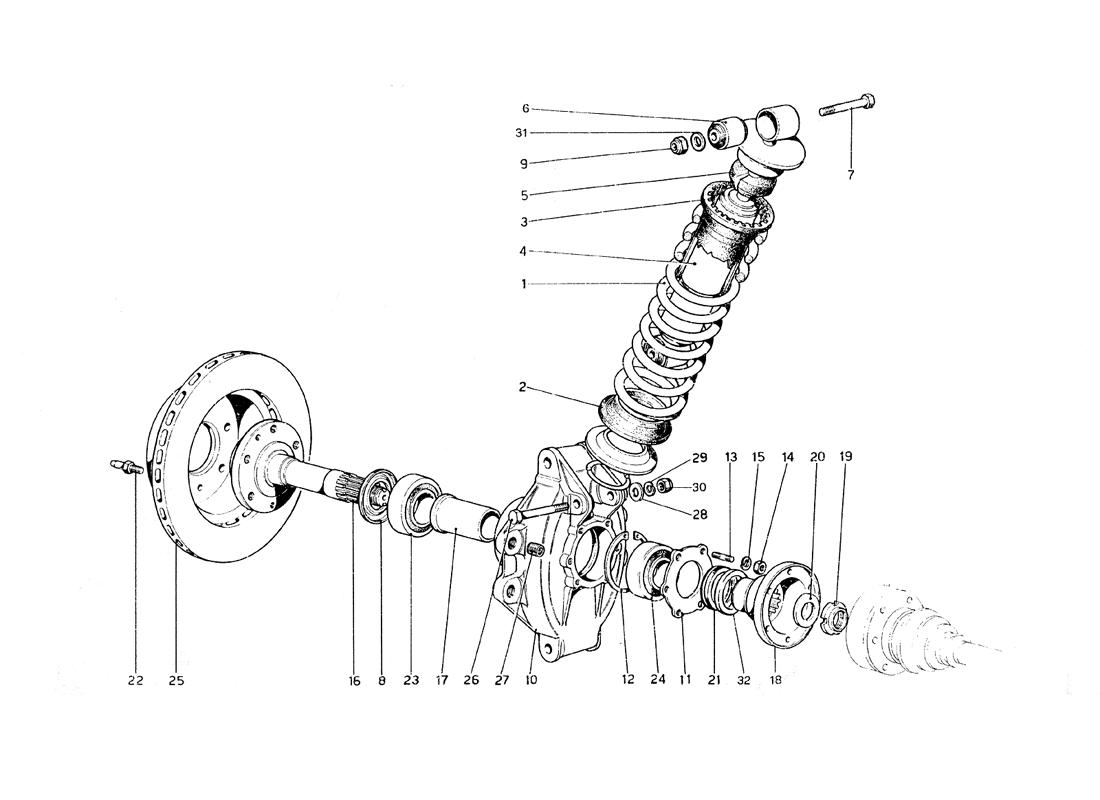

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 113055 *Qty: 2 Molla sospensione
Non vale per USA - AUS e J
$472.29
Location: 1 Prev | Next Part: 108435 *Qty: 2 Molla sospensione
Vale per USA - AUS e J
$345.34
Location: 2 Prev | Next Part: 103264 *Qty: 2 Distanziale inferiore $50.11
Location: 4 Prev | Next Part: 104441 *Qty: 2 Ammortizzatore $639.62
Location: 6 Prev | Next Part: 100809 *Qty: 4 Estendblok per ammortizzatore $19.46
Location: 8 Prev | Next Part: 108047 *Qty: 2 Anello centrifugo $70.97
Location: 9 Prev | Next Part: 112484 *Qty: 1 Portamozzo Dx. completo Call
Location: 10 Prev | Next Part: 107441 *Qty: 1 Portamozzo Sx.
Col complessivo n. 112485
Superseded
Location: 10 Prev | Next Part: 106245 *Qty: 1 Portamozzo Dx.
Col complessivo n. 112484
Superseded
Location: 11 Prev | Next Part: 108049 *Qty: 2 Flangia tenuta cuscinetto $102.78
Location: 13 Prev | Next Part: 13543121 *Qty: 12 THREADED STUD Superseded
Location: 15 Prev | Next Part: 106852 *Qty: 12 Rondella Superseded
Location: 17 Prev | Next Part: 106129 *Qty: 2 Distanziale $238.85
Location: 19 Prev | Next Part: 102289 *Qty: 2 Ghiera $40.00
Location: 21 Prev | Next Part: 108048 *Qty: 2 Anello di tenuta $16.39
Location: 23 Prev | Next Part: 101221 *Qty: 2 Cuscinetto esterno $42.79
Location: 25 Prev | Next Part: 104458 *Qty: 2 Disco freno $379.65
Location: 27 Prev | Next Part: 105621 *Qty: 4 Heli -coil Superseded
Location: 29 Prev | Next Part: 106854 *Qty: 2 Rondella Superseded
Location: 31 Prev | Next Part: 106616 *Qty: 2 Rondella $1.72

* Quantity shown indicates the number of pieces used in the diagram.
