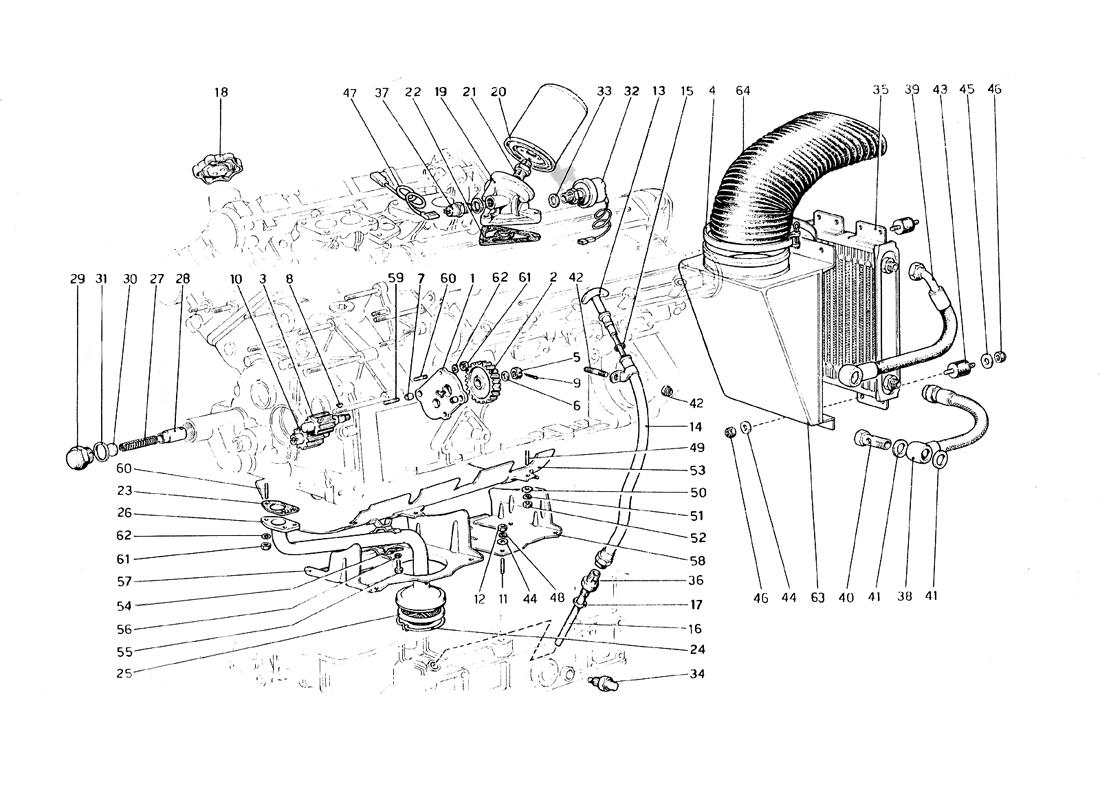

LUBRICATION SYSTEM

Go to Split View

LUBRICATION SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 109300 *Qty: 1 Coperchio pompa olio $207.79
Location: 3 Prev | Next Part: 109956 *Qty: 1 Ingranaggio conciuttore
Dopo esaurim. n. 103782
$965.24
Location: 4 Prev | Next Part: 10300190 *Qty: 2 Fascetta Call
Location: 6 Prev | Next Part: 102901 *Qty: 1 Rondella $0.90
Location: 8 Prev | Next Part: 10205620 *Qty: 1 Linguetta $0.90
Location: 10 Prev | Next Part: 109308 *Qty: 1 Ingranaggio condotto Call
Location: 12 Prev | Next Part: 15896411 *Qty: 8 Dado Superseded
Location: 14 Prev | Next Part: 110371 *Qty: 1 Tubo asta livello olio
Dopo esaurim. n. 105227
Superseded
Location: 15 Prev | Next Part: 100317 *Qty: 1 Anello di tenuta $1.51
Location: 17 Prev | Next Part: 10259960 *Qty: 1 Guarnizione $0.90
Location: 19 Prev | Next Part: 112384 *Qty: 1 Base fiitro $356.05
Location: 20 Prev | Next Part: 191993 *Qty: 1 Cartuccia fiitro olio
Fiaam Filter
$34.95
Location: 21 Prev | Next Part: 100327 *Qty: 1 Raccordo $27.31
Location: 23 Prev | Next Part: 103942 *Qty: 1 Guarnizione Superseded
Location: 25 Prev | Next Part: 100332 *Qty: 1 Filtro pescante $80.11
Location: 27 Prev | Next Part: 106900 *Qty: 1 Molla per valvoia regolazione pressione $4.55
Location: 29 Prev | Next Part: 106237 *Qty: 1 Tappo $72.10
Location: 31 Prev | Next Part: 10264660 *Qty: 1 Guarnizione $6.08
Location: 33 Prev | Next Part: 10257060 *Qty: 1 Guarnizione $0.90
Location: 35 Prev | Next Part: 106965 *Qty: 1 Radiatore olio Superseded
Location: 37 Prev | Next Part: 110664 *Qty: 1 Interruttore per spia pressione olio $125.50
Location: 39 Prev | Next Part: 106277 *Qty: 1 Tubo dal radiatore alla base filtro Call
Location: 41 Prev | Next Part: 10279550 *Qty: 4 Guarnizione Superseded
Location: 43 Prev | Next Part: 102947 *Qty: 3 Suppoi ID dntivibianle $18.79
Location: 45 Prev | Next Part: 12643701 *Qty: 4 Rondella Superseded
Location: 47 Prev | Next Part: 112388 *Qty: 1 Cavetto per interruttore $5.37
Location: 49 Prev | Next Part: 13516521 *Qty: 4 Prigioniero sul basamento $1.17
Location: 51 Prev | Next Part: 106852 *Qty: 4 Rondella spaccata Superseded
Location: 53 Prev | Next Part: 103929 *Qty: 1 Paratia superiore completa $155.25
Location: 55 Prev | Next Part: 10977621 *Qty: 2 Bullone Superseded
Location: 57 Prev | Next Part: 107073 *Qty: 1 Paratia inferiore anteriore $82.65
Location: 59 Prev | Next Part: 13541121 *Qty: 2 Prigioniero lungo Superseded
Location: 61 Prev | Next Part: 15896211 *Qty: 7 Dado Superseded
Location: 63 Prev | Next Part: 107891 *Qty: 1 Convogliatore aria per radiatore
Dopo esaurim. n. 107131
$167.64
Location: 64 Prev | Next Part: 107533 *Qty: 1 Soffietto di collegamento $85.87

* Quantity shown indicates the number of pieces used in the diagram.
