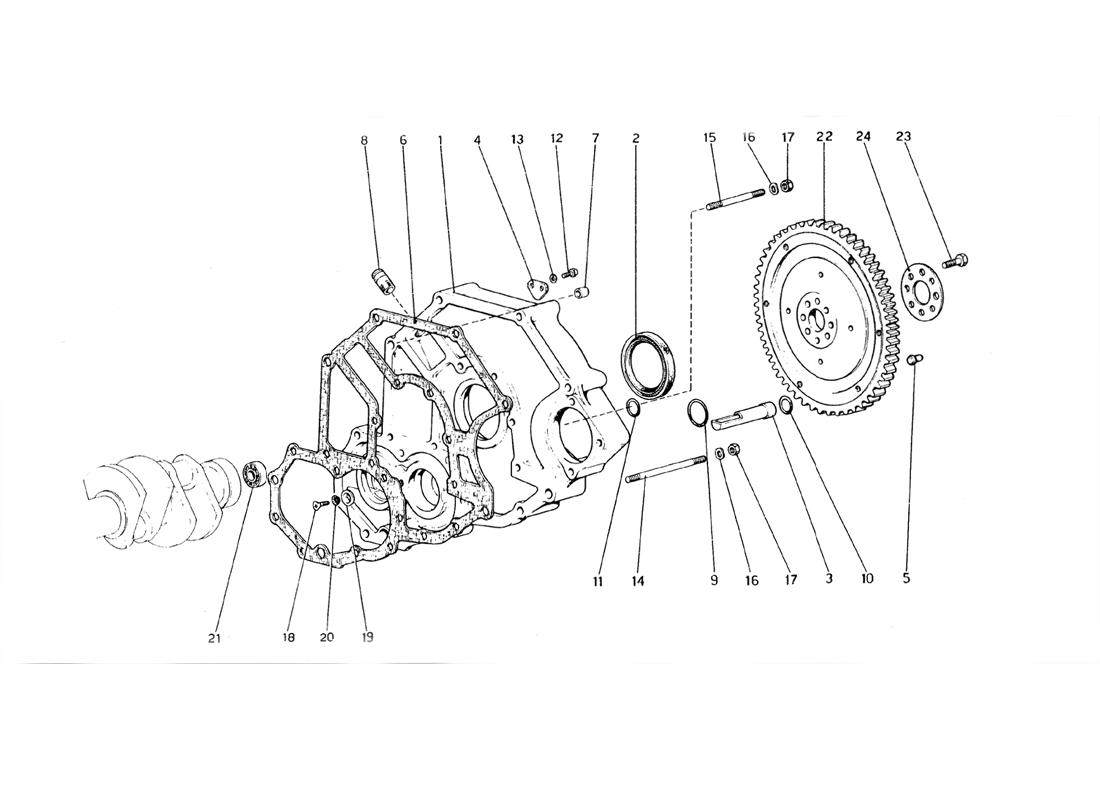

FLYWHEEL AND CLUTCH HOUSING RODS AND PISTONS

Go to Split View

FLYWHEEL AND CLUTCH HOUSING RODS AND PISTONS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 109117 *Qty: 1 Corpo intermedia complete $1,238.38
Location: 2 Prev | Next Part: 106244 *Qty: 1 Anollo di tenuta
In alternativa al n.40000230
Call
Location: 3 Prev | Next Part: 104035 *Qty: 1 Tubo passaggio olio $43.25
Location: 5 Prev | Next Part: 101535 *Qty: 3 Grano $29.68
Location: 7 Prev | Next Part: 102692 *Qty: 1 Grano $6.45
Location: 9 Prev | Next Part: 114947 *Qty: 1 Anello di tenuta
Vale solo con campana 114952
$2.80
Location: 9 Prev | Next Part: 103021 *Qty: 1 Anello di tenuta
Vale solo con campana 108940
$2.80
Location: 10 Prev | Next Part: 103775 *Qty: 1 Anello di tenuta $2.11
Location: 12 Prev | Next Part: 10977621 *Qty: 2 Vite Superseded
Location: 14 Prev | Next Part: 104217 *Qty: 1 Prigioniero lungo Call
Location: 16 Prev | Next Part: 11198071 *Qty: 2 Rondella Superseded
Location: 18 Prev | Next Part: 111213 *Qty: 1 Vite
Dopo esaur. n. 108040
$0.90
Location: 19 Prev | Next Part: 108039 *Qty: 1 Rondella $4.08
Location: 21 Prev | Next Part: 103877 *Qty: 1 Cuscinetto $33.33
Location: 23 Prev | Next Part: 103875 *Qty: 8 Bullone Superseded

* Quantity shown indicates the number of pieces used in the diagram.
