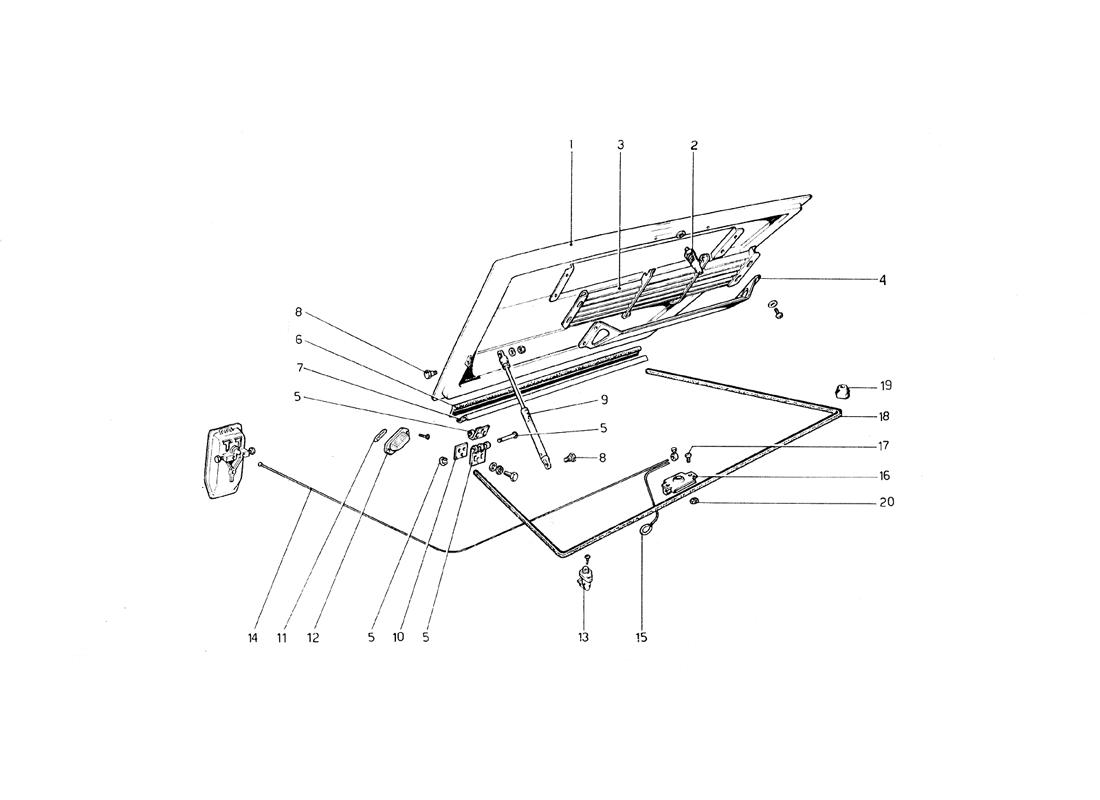

ENGINE COMPARTMENT LID AND CARPETING

Go to Split View

ENGINE COMPARTMENT LID AND CARPETING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60555300 *Qty: 1 Cofano motore
Vale per USA 78 - J
$2,124.71
Location: 1 Prev | Next Part: 40016701 *Qty: 1 Cofano motorez
Non vale per GD-AUS-USA 78-J
$4,211.62
Location: 1 Prev | Next Part: 40178907 *Qty: 1 Cofano motore
Vale per GD-AUS
$1,932.28
Location: 2 Prev | Next Part: 40110405 *Qty: 1 Perno per serratura cofano $179.39
Location: 3 Prev | Next Part: 40161903 *Qty: 1 Vite $18.00
Location: 4 Prev | Next Part: 60554900 *Qty: 1 Paratia riparo acqua
Vale per USA 78-J
$195.60
Location: 4 Prev | Next Part: 40341505 *Qty: 1 Paratia riparo acqua
Vale fino USA 77 e per AUS
Call
Location: 5 Prev | Next Part: 40303901 *Qty: 2 Complessivo cerniera cofano $198.78
Location: 7 Prev | Next Part: 40147209 *Qty: 1 Angolare fissaggio guarnizione $51.61
Location: 10 Prev | Next Part: 40029407 *Qty: 2 Piastrina fissaggio $10.87
Location: 12 Prev | Next Part: 40122103 *Qty: 1 Plafoniera $176.14
Location: 14 Prev | Next Part: 40037803 *Qty: 1 Cavo apertura cofano motore Call
Location: 16 Prev | Next Part: 40099904 *Qty: 1 Serratura cofano Call
Location: 18 Prev | Next Part: 40068900 *Qty: 1 Guarnizione $66.26
Location: 20 Prev | Next Part: 50207208 *Qty: 2 Dado Superseded

* Quantity shown indicates the number of pieces used in the diagram.
