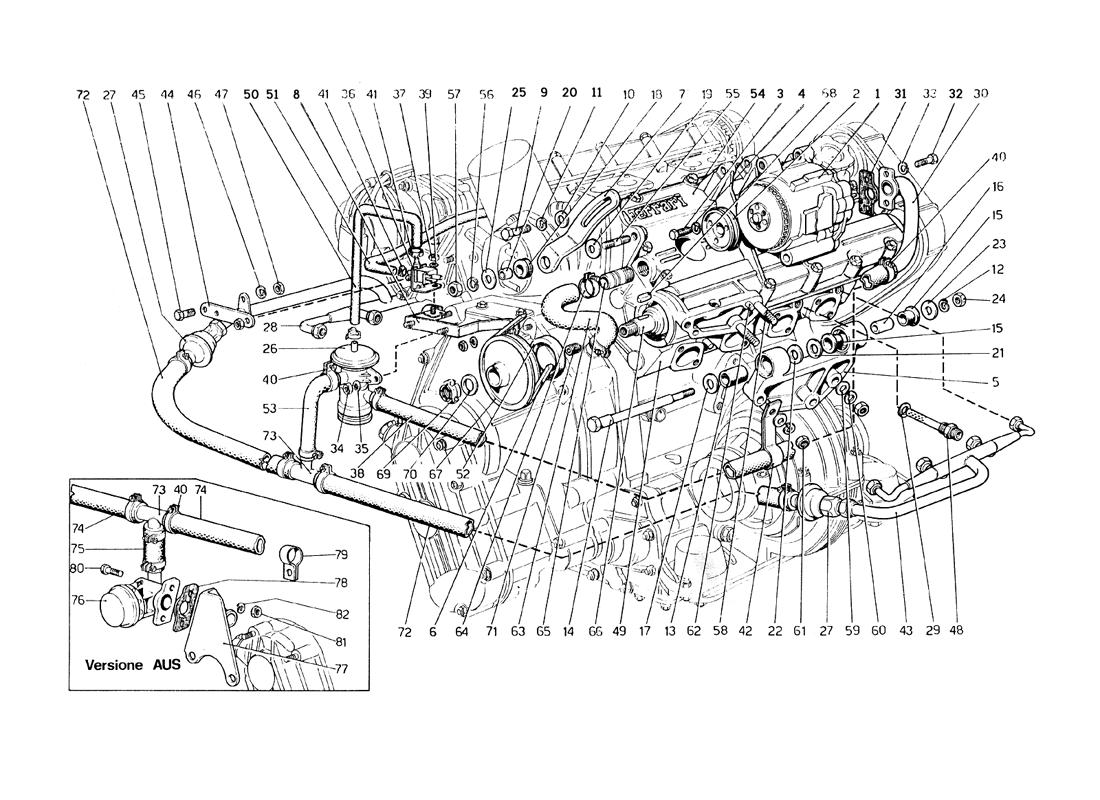

AIR PUMP AND PIPING (VARIANTS FOR USA - AUS AND J VERSION)

Go to Split View

AIR PUMP AND PIPING (VARIANTS FOR USA - AUS AND J VERSION)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 107631 *Qty: 1 Pompa aria $532.31
Location: 3 Prev | Next Part: 100542 *Qty: 3 Bullone Call
Location: 5 Prev | Next Part: 107676 *Qty: 1 Supporto pompa aria Call
Location: 7 Prev | Next Part: 108286 *Qty: 1 Staffa di regolazione pompa aria $81.01
Location: 9 Prev | Next Part: 100562 *Qty: 1 Bullone Call
Location: 11 Prev | Next Part: 106853 *Qty: 1 Rondella elastica Superseded
Location: 13 Prev | Next Part: 108277 *Qty: 1 Isolante $15.64
Location: 15 Prev | Next Part: 108279 *Qty: 2 Isolanle Call
Location: 17 Prev | Next Part: 108281 *Qty: 1 Rosetta di spallamento $1.34
Location: 19 Prev | Next Part: 108283 *Qty: 1 Rosetta di spallamento $0.95
Location: 21 Prev | Next Part: 108292 *Qty: 1 Rosetta di spallamento $4.75
Location: 23 Prev | Next Part: 12642020 *Qty: 1 Rondella Superseded
Location: 25 Prev | Next Part: 12646821 *Qty: 1 Rondella $0.90
Location: 27 Prev | Next Part: 100564 *Qty: 1 Single check - valve Call
Location: 29 Prev | Next Part: 100511 *Qty: 8 Guarnizione Superseded
Location: 31 Prev | Next Part: 107810 *Qty: 1 Guarnizione $1.29
Location: 33 Prev | Next Part: 106851 *Qty: 2 Rondella $0.90
Location: 35 Prev | Next Part: 106850 *Qty: 2 Rondella Superseded
Location: 37 Prev | Next Part: 16100811 *Qty: 1 Dado Superseded
Location: 39 Prev | Next Part: 106852 *Qty: 1 Rondella Superseded
Location: 41 Prev | Next Part: 102721 *Qty: 4 Fascetta Call
Location: 43 Prev | Next Part: 109884 *Qty: 1 Tubo posteriore immissione aria $712.07
Location: 45 Prev | Next Part: 10902121 *Qty: 1 Bullone Superseded
Location: 47 Prev | Next Part: 15896211 *Qty: 1 Dado Superseded
Location: 48 Prev | Next Part: 114214 *Qty: 1 Testa cilindrJ Dx. completa Superseded
Location: 49 Prev | Next Part: 107670 *Qty: 1 Testa cilindri Dx.
Col compl 107723-114214
Call
Location: 50 Prev | Next Part: 111708 *Qty: 1 Tubo $8.87
Location: 52 Prev | Next Part: 107786 *Qty: 1 Anello paraolio $24.58
Location: 54 Prev | Next Part: 113024 *Qty: 1 Coperchio testa Dx.
Col complessivo n. 114214
Call
Location: 54 Prev | Next Part: 112073 *Qty: 1 Copeichio testj Dx.
Col complessivo n. 107723
Call
Location: 54 Prev | Next Part: 107672 *Qty: 1 Copei chio testa Dx.
Col compl. 107723 (fino esaur.)
Call
Location: 55 Prev | Next Part: 13449520 *Qty: 1 THREADED STUD Call
Location: 57 Prev | Next Part: 12164721 *Qty: 1 Dado Superseded
Location: 59 Prev | Next Part: 10730521 *Qty: 3 Rondelia $3.01
Location: 61 Prev | Next Part: 12164721 *Qty: 3 Dado Superseded
Location: 63 Prev | Next Part: 107783 *Qty: 1 Tubo $109.61
Location: 65 Prev | Next Part: 102705 *Qty: 1 Raccordo $33.98
Location: 65 Prev | Next Part: 114070 *Qty: 1 Albero distribuzione scarico Dx. Completo
Per AUS Vale n. 107787
$1,916.79
Location: 66 Prev | Next Part: 107788 *Qty: 1 Albero distribuzione scarico Dx.
Col complessivo n. 107787
Call
Location: 67 Prev | Next Part: 107756 *Qty: 1 Puleggia comando pompa aria $195.88
Location: 69 Prev | Next Part: 104919 *Qty: 1 Ghiera $7.00
Location: 71 Prev | Next Part: 14326050 *Qty: 1 Tappo $1.77
Location: 73 Prev | Next Part: 109887 *Qty: 1 Raccordo a T $314.32
Location: 75 Prev | Next Part: 109886 *Qty: 1 Manicotto $4.21
Location: 77 Prev | Next Part: 107780 *Qty: 1 Supporto diverter - valve $324.53
Location: 79 Prev | Next Part: 109888 *Qty: 1 Fascetta fissaggio tubo Dx. alla testa $24.75
Location: 81 Prev | Next Part: 10720121 *Qty: 2 Dado $0.90

* Quantity shown indicates the number of pieces used in the diagram.
