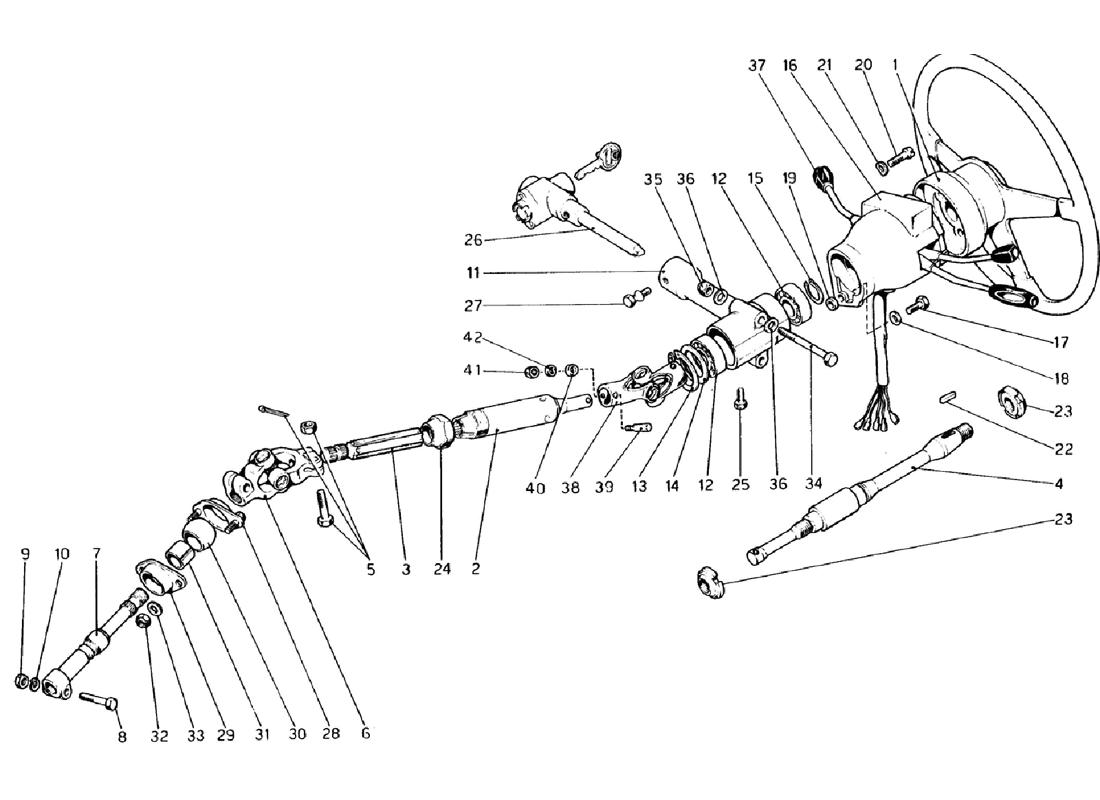

STEERING COLUMN

STEERING COLUMN

Location Part # Quantity* Description Price Add To Cart
1 108761 1 Assieme volante guida Superseded
2 108735 1 Tubo guida $457.44
3 108737 1 Albero guida $220.46
4 108413 1 Albero superiore $497.17
5 105032 1 Assieme fiss. giunto cardanico
Serve per part. N. 103343
$96.34
6 103343 1 Giunto cardanico Unavailable
6 108362 1 Giunto cardanico
In alternativa con N. 103343
Superseded
7 107308 1 Estensione del pignone scatola guida completo Unavailable
8 103371 1 Bolt Superseded
9 103373 1 Nut Superseded
10 103372 1 Rondella Superseded
11 106611 1 Supporto piantone guida e antifurto $947.22
12 101104 2 Bearing $16.46
13 11060576 1 Seeger Ring $1.81
14 101101 1 Rondella di rasamento 0,5 mm
Di eventuale montaggio
$1.68
14 107488 1 Idem spessore mm 0,4 $3.13
14 107489 1 Idem spessore mm 0,3 $12.89
14 107490 1 Idem spessore mm 0,2 $12.89
15 11067376 1 Seeger Ring $1.68
16 106811 1 Cannotto porta commutatori Unavailable
17 10902221 1 Bolt Unavailable
18 12601271 1 Rondella Superseded
19 12639701 1 Spacer Unavailable
20 10389901 2 Vite fissaggio commutatore Unavailable
21 12541670 2 Rondella elastica $1.24
22 101106 1 Chiavetta $7.39
23 106610 2 Ring Nut $84.65
24 106870 1 Nut $16.42
25 10979421 1 Bolt Unavailable
26 106614 1 Antifurto Superseded
27 106615 1 Bolt Superseded
28 105667 1 Flangia per articolazione sferica superiore $34.67
28 106909 1 Flangia per articolazione sferica completa Unavailable
29 103292 1 Flangia per articolazione sferica inferiore $14.11
30 103297 1 Sfera per articolazione $61.37
31 103370 1 Bush Unavailable
32 16104121 2 Nut Superseded
33 10519621 2 Rondella $0.90
34 103576 2 Bolt $20.26
35 16104421 2 Nut Superseded
36 10519621 4 Rondella $0.90
37 109004 1 Deviosgancio Unavailable
38 108415 1 Giunto cardanico Superseded
39 108416 2 Spina conica $37.37
40 108417 2 Spacer $1.52
41 12574221 2 Nut Superseded
42 10519401 2 Rondella Superseded

* Quantity shown indicates the number of pieces used in the diagram.
