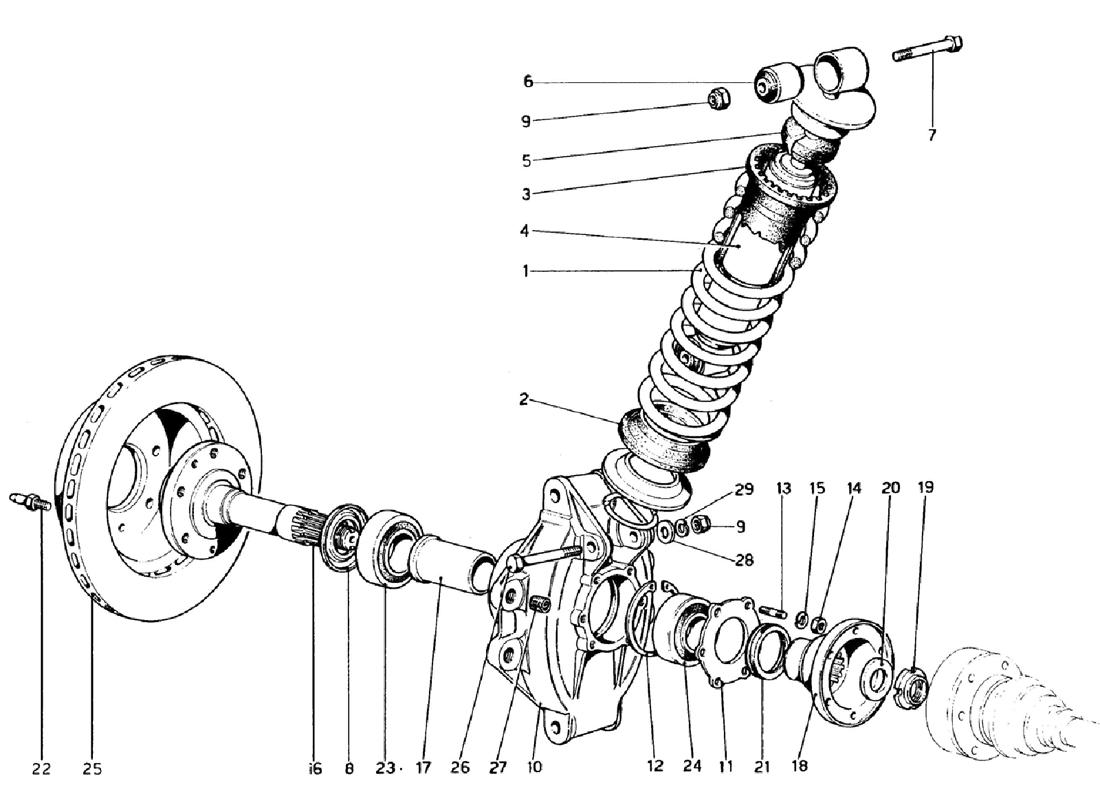

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 109025 *Qty: 2 Molla sospensione Superseded
Location: 2 Prev | Next Part: 103264 *Qty: 2 Distanziale inferiore $50.11
Location: 3 Prev | Next Part: 103263 *Qty: 2 Distanziale superiore $34.33
Location: 4 Prev | Next Part: 108808 *Qty: 2 Ammortizzatore Superseded
Location: 5 Prev | Next Part: 104442 *Qty: 2 Tampone fine corsa Call
Location: 6 Prev | Next Part: 100809 *Qty: 4 Estendblok per ammortizzatore $19.46
Location: 7 Prev | Next Part: 106419 *Qty: 2 Bolt $23.46
Location: 8 Prev | Next Part: 108047 *Qty: 2 Ring $70.97
Location: 9 Prev | Next Part: 16103621 *Qty: 4 Nut $0.90
Location: 10 Prev | Next Part: 107441 *Qty: 1 Portamozzo sinistro Superseded
Location: 10 Prev | Next Part: 106245 *Qty: 1 Porta mozzo destro Superseded
Location: 11 Prev | Next Part: 108049 *Qty: 2 Flangia tenuta cuscinetto $102.78
Location: 12 Prev | Next Part: 11061575 *Qty: 2 Seeger Ring Superseded
Location: 13 Prev | Next Part: 13543121 *Qty: 12 Prigiorniero Superseded
Location: 14 Prev | Next Part: 16100821 *Qty: 12 Nut $3.46
Location: 15 Prev | Next Part: 106852 *Qty: 12 Rondella Superseded
Location: 16 Prev | Next Part: 108046 *Qty: 2 Albero con mozzo posteriore Call
Location: 17 Prev | Next Part: 106129 *Qty: 2 Spacer $238.85
Location: 18 Prev | Next Part: 104604 *Qty: 2 Flangia attacco semiassi $809.37
Location: 19 Prev | Next Part: 102289 *Qty: 2 Ring Nut $40.00
Location: 20 Prev | Next Part: 105511 *Qty: 2 Rondella $14.28
Location: 21 Prev | Next Part: 108048 *Qty: 2 Sealing Ring $16.39
Location: 22 Prev | Next Part: 104370 *Qty: 4 Vite di centraggio $0.90
Location: 23 Prev | Next Part: 101221 *Qty: 2 Cuscinetto esterno $42.79
Location: 24 Prev | Next Part: 101220 *Qty: 2 Cuscinetto interno $42.26
Location: 25 Prev | Next Part: 104458 *Qty: 2 Disco freno $379.65
Location: 26 Prev | Next Part: 106290 *Qty: 2 Bolt $29.66
Location: 27 Prev | Next Part: 105621 *Qty: 4 Heli - coil Superseded
Location: 28 Prev | Next Part: 106416 *Qty: 2 Rondella $1.93
Location: 29 Prev | Next Part: 106854 *Qty: 2 Rondella Superseded

* Quantity shown indicates the number of pieces used in the diagram.
