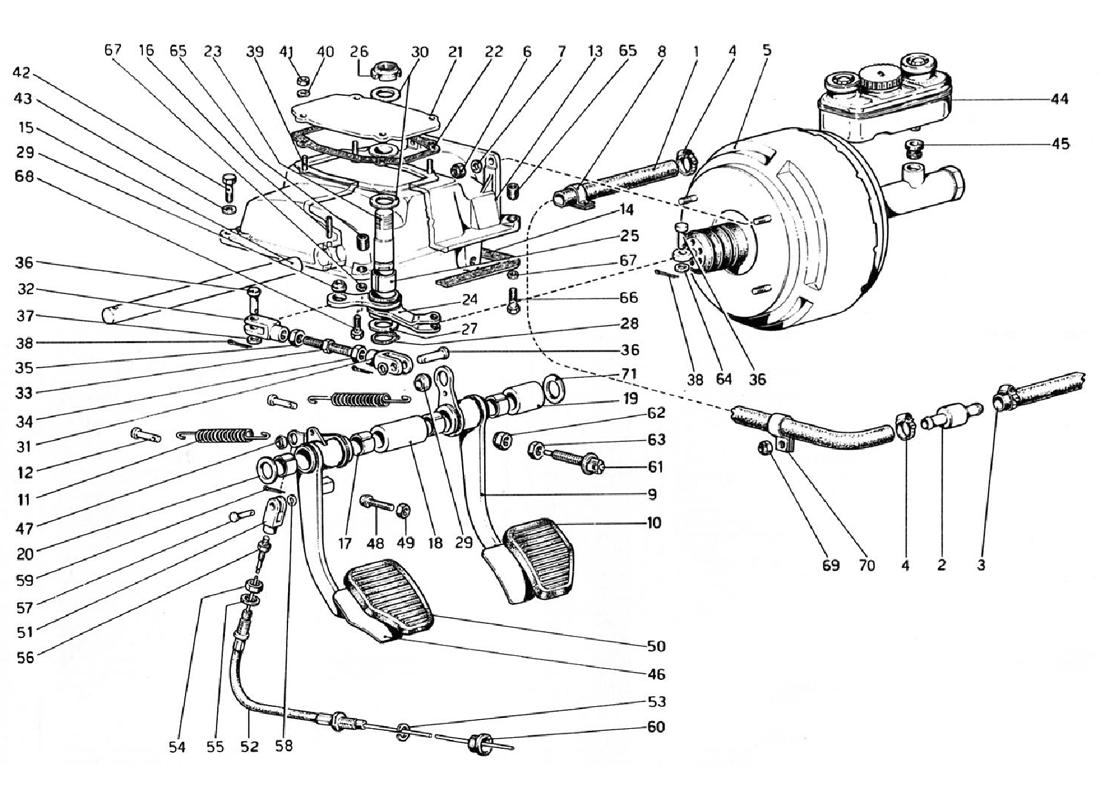

PEDAL BOARD -BRAKE AND CLUTCH CONTROLS

PEDAL BOARD -BRAKE AND CLUTCH CONTROLS

Location Part # Quantity* Description Price Add To Cart
1 108951 1 Tubo dal servofreno alla valvola di non ritorno Unavailable
2 101538 1 Valvola non ritorno Superseded
3 107982 1 Tubo dalla valvola al collettore Unavailable
4 100507 4 Jubilee Clip Unavailable
5 108820 1 Servofreno Superseded
6 16104411 4 Nut $0.90
7 12601371 4 Rondella Superseded
8 10418900 1 Jubilee Clip $2.25
9 108524 1 Pedale freno
Dopo esaurim.N.108533
Superseded
9 108533 1 Pedale freno
Vale fino ad esaurimento
$771.28
10 106950 1 Copripedale freno $39.61
11 104895 2 Molla richiamo pedale $32.66
12 104896 2 Perno tenuta molla $47.75
13 108022 1 Supporto pedaliera completo $5,632.80
13 106187 1 Supporto pedaliera Superseded
14 104899 1 GASKET Unavailable
15 104900 1 Perno supporto pedali $182.27
16 104901 1 Spina $3.05
17 103163 4 Bush $8.08
18 104902 1 Spacer
Fino ad esaurim.N. 108533
$53.43
19 104903 1 Spacer
Fino ad esaurim.N. 108533
$60.51
20 106083 1 Rondella Unavailable
21 104904 1 Coperchio $12.22
22 104905 1 GASKET $14.82
23 106081 1 Perno supporto leva rinvio $76.45
24 108313 1 Leva rinvio servofreno $108.83
25 100787 1 Bush $9.46
26 106082 1 Ring Nut Superseded
27 108382 1 Spacer $14.66
28 11066875 1 Seeger Ring Superseded
29 100424 2 Snodo sferico Unavailable
30 106084 2 Rondella $9.68
31 104910 1 Forcellino
Filetto sinistro
$13.26
32 104911 1 Forcellino $32.42
33 104912 1 Vite registro $30.71
34 103157 1 Nut
Filetto sinistro
Superseded
35 103160 1 Nut Superseded
36 10033411 3 Perno Superseded
37 103167 2 Rondella $4.49
38 10796301 3 Split Pin Unavailable
39 11500021 4 THREADED STUD Superseded
40 12601271 4 Rondella ondulata Superseded
41 15896211 4 Nut Superseded
42 16139021 2 Bolt $3.92
43 12601471 2 Rondella ondulata Superseded
44 108802 1 Vaschetta per liquido freni Unavailable
45 106625 2 Sealing Ring Superseded
46 108534 1 Pedale frizione
Fino esaurim.N. 108533
Unavailable
46 108523 1 Pedale frizione
Dopo esaurim.N. 108533
Unavailable
47 100423 1 Snodo sferico $36.42
48 106409 1 Vite registro $7.86
49 16100321 1 Nut Unavailable
50 106949 1 Copripedale $33.50
51 108575 1 Forcellino $104.61
52 106745 1 Cavo comando frizione $78.46
53 12601671 1 Rondella elastica Unavailable
54 16103611 1 Nut Unavailable
55 12601571 1 Rondella elastica Unavailable
56 100861 1 Locknut Unavailable
57 103218 1 Perno $29.23
58 12639701 1 Rondella Unavailable
59 10734201 1 Split Pin Unavailable
60 105369 3 Passafilo $29.09
61 101663 1 Interruttore per luci arresto $75.94
62 101662 1 Nut $4.36
63 10791211 1 Nut Unavailable
64 10730521 1 Rondella $2.56
65 106188 2 Bush $58.52
66 16044321 1 Vite fiss. pedaliera Unavailable
67 106852 2 Rondella Superseded
68 16043621 1 Vite fiss. pedaliera Unavailable
69 12575421 1 Nut Superseded
70 10441890 1 Jubilee Clip $0.90
71 106183 1 Rondella di rasamento
Vale dopoes.N. 108533
$23.06

* Quantity shown indicates the number of pieces used in the diagram.
