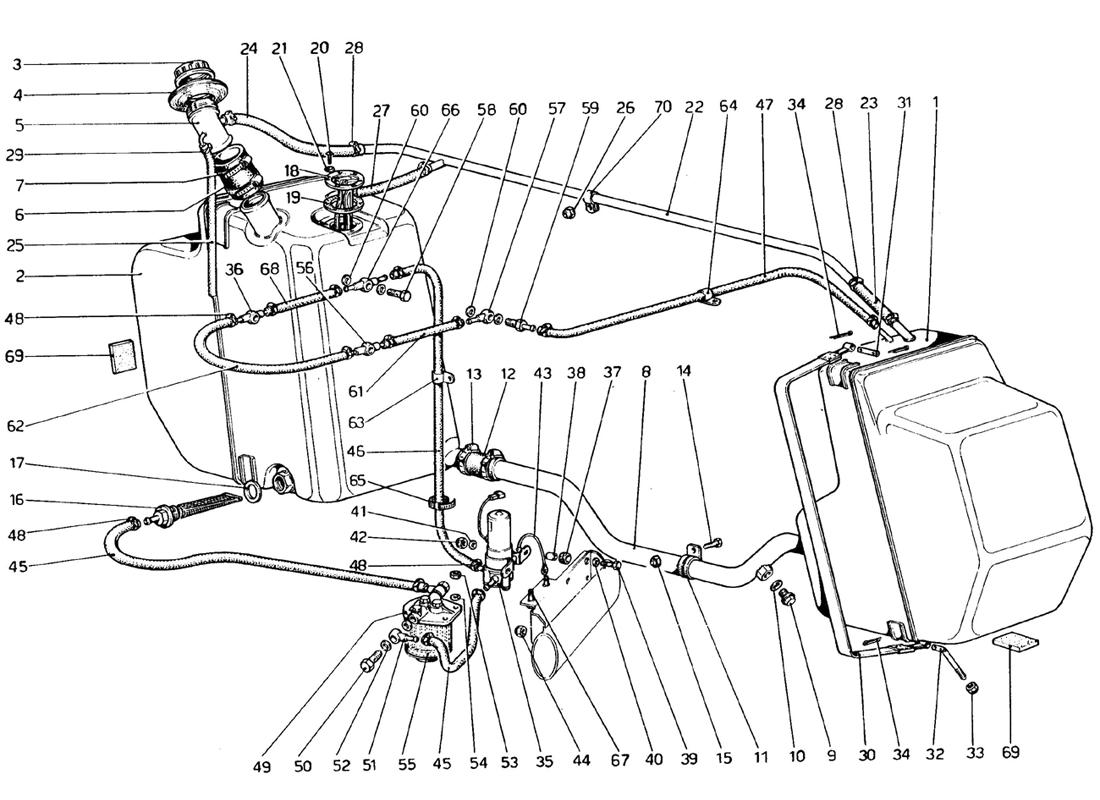

FUEL SYSTEM

Go to Split View

FUEL SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 108137 *Qty: 1 Serbatoio carburante destro $1,636.84
Location: 2 Prev | Next Part: 108138 *Qty: 1 Serbatoio carburante sinistro $2,817.23
Location: 3 Prev | Next Part: 101453 *Qty: 1 Tappo di carico Superseded
Location: 4 Prev | Next Part: 101465 *Qty: 1 Guarnizione per bocchettone Call
Location: 5 Prev | Next Part: 109321 *Qty: 1 Fuel Filler $186.55
Location: 6 Prev | Next Part: 109374 *Qty: 1 Manicotto per bocchettone Call
Location: 7 Prev | Next Part: 12174790 *Qty: 2 Jubilee Clip $1.40
Location: 8 Prev | Next Part: 106675 *Qty: 1 Tubo collegamento serbatoi Call
Location: 9 Prev | Next Part: 10300771 *Qty: 1 Tappo scarico carburante $17.00
Location: 10 Prev | Next Part: 10278650 *Qty: 1 GASKET $0.90
Location: 11 Prev | Next Part: 106195 *Qty: 1 Fascetta fissaggio tubo $45.54
Location: 12 Prev | Next Part: 101468 *Qty: 2 SLEEVE Superseded
Location: 13 Prev | Next Part: 108785 *Qty: 4 Jubilee Clip $5.50
Location: 14 Prev | Next Part: 10902121 *Qty: 1 Vite Superseded
Location: 15 Prev | Next Part: 12574211 *Qty: 1 Nut Superseded
Location: 16 Prev | Next Part: 104528 *Qty: 1 Filtro carburante sul serbatoio $229.30
Location: 17 Prev | Next Part: 102645 *Qty: 1 GASKET $4.58
Location: 18 Prev | Next Part: 108644 *Qty: 1 Comando indicatore di livello Call
Location: 19 Prev | Next Part: 101462 *Qty: 1 GASKET $17.61
Location: 20 Prev | Next Part: 10374911 *Qty: 6 Vite $0.90
Location: 21 Prev | Next Part: 106848 *Qty: 6 Rondella $0.90
Location: 22 Prev | Next Part: 108521 *Qty: 1 Tubo sfiato serbatoio destro col bocchettone $145.57
Location: 23 Prev | Next Part: 109353 *Qty: 1 Tubo per sfiato Call
Location: 24 Prev | Next Part: 109354 *Qty: 1 Tubo per sfiato Call
Location: 25 Prev | Next Part: 106666 *Qty: 1 Tubo sfiato Call
Location: 26 Prev | Next Part: 12574211 *Qty: 3 Self-locking Nut Superseded
Location: 27 Prev | Next Part: 109354 *Qty: 1 Tubo sfiato serbatoio sinistro Call
Location: 28 Prev | Next Part: 100507 *Qty: 6 Jubilee Clip Call
Location: 29 Prev | Next Part: 101296 *Qty: 1 Jubilee Clip Call
Location: 30 Prev | Next Part: 109328 *Qty: 2 Nastro fissaggio serbatoi $58.29
Location: 31 Prev | Next Part: 103447 *Qty: 2 Perno $3.27
Location: 32 Prev | Next Part: 12311271 *Qty: 2 Tirante Superseded
Location: 33 Prev | Next Part: 16104111 *Qty: 2 Nut Superseded
Location: 34 Prev | Next Part: 10796401 *Qty: 6 Split Pin Superseded
Location: 35 Prev | Next Part: 105454 *Qty: 1 Pompa benzina elettrica Superseded
Location: 36 Prev | Next Part: 107795 *Qty: 1 Raccordo posteriore sinistro $34.19
Location: 37 Prev | Next Part: 103549 *Qty: 2 Gommino fissaggio pompa $1.57
Location: 38 Prev | Next Part: 103550 *Qty: 2 Bush $2.47
Location: 39 Prev | Next Part: 10902611 *Qty: 2 Bolt Superseded
Location: 40 Prev | Next Part: 12643701 *Qty: 2 Rondella Superseded
Location: 41 Prev | Next Part: 12644401 *Qty: 2 Rondella Superseded
Location: 42 Prev | Next Part: 12574211 *Qty: 2 Self-locking Nut Superseded
Location: 43 Prev | Next Part: 106153 *Qty: 1 Cavo di massa $3.39
Location: 44 Prev | Next Part: 16104111 *Qty: 3 Self-locking Nut Superseded
Location: 45 Prev | Next Part: 106654 *Qty: 2 Tubo da filtro sul serbatoio al filtro FISPA e dal filtro FISPA alla pompa Superseded
Location: 46 Prev | Next Part: 103927 *Qty: 1 Tubo dalla pompa al raccordo sui carburatori Superseded
Location: 47 Prev | Next Part: 103928 *Qty: 1 Tubo dai carburatori al serbatoio destro per ricircolo Superseded
Location: 48 Prev | Next Part: 10168590 *Qty: 14 Fascetta per tubazioni alimentazione Superseded
Location: 49 Prev | Next Part: 103401 *Qty: 1 Filtro carburante FISPA Superseded
Location: 49 Prev | Next Part: 107486 *Qty: 1 Filtro carburante FIAMM $378.68
Location: 50 Prev | Next Part: 103402 *Qty: 2 Union $46.36
Location: 51 Prev | Next Part: 105826 *Qty: 2 Orientabile $43.08
Location: 52 Prev | Next Part: 103403 *Qty: 4 GASKET Superseded
Location: 53 Prev | Next Part: 16100811 *Qty: 2 Nut Superseded
Location: 54 Prev | Next Part: 12601371 *Qty: 2 Rondella Superseded
Location: 55 Prev | Next Part: 95180050 *Qty: 1 Elemento f iltrante per filtro FISPA $30.70
Location: 56 Prev | Next Part: 106199 *Qty: 1 Raccordo posteriore destro $22.88
Location: 57 Prev | Next Part: 106200 *Qty: 1 Raccordo anteriore destro $6.80
Location: 58 Prev | Next Part: 10181717 *Qty: 3 Union $9.05
Location: 59 Prev | Next Part: 108032 *Qty: 1 Union $24.69
Location: 60 Prev | Next Part: 10296160 *Qty: 8 GASKET $0.90
Location: 61 Prev | Next Part: 106201 *Qty: 1 Tubo collegamento carburatori Superseded
Location: 62 Prev | Next Part: 106202 *Qty: 1 Tubo collegamento carburatori Superseded
Location: 63 Prev | Next Part: 10418600 *Qty: 2 Fascetta sostegno tubo $0.90
Location: 64 Prev | Next Part: 10418400 *Qty: 1 Fascetta sostegno tubo $1.08
Location: 65 Prev | Next Part: 105549 *Qty: 1 Fascetta fissaggio tubo $1.83
Location: 66 Prev | Next Part: 107793 *Qty: 1 Raccordo ingresso carburante $27.39
Location: 67 Prev | Next Part: 16043621 *Qty: 2 Vite fissaggio filtro al supporto $0.90
Location: 68 Prev | Next Part: 105489 *Qty: 2 Tubo collegamento carburatori Superseded
Location: 69 Prev | Next Part: 107889 *Qty: 10 Spessore adattamento serbatoi Superseded
Location: 70 Prev | Next Part: 10450490 *Qty: 3 Jubilee Clip $0.90

* Quantity shown indicates the number of pieces used in the diagram.
