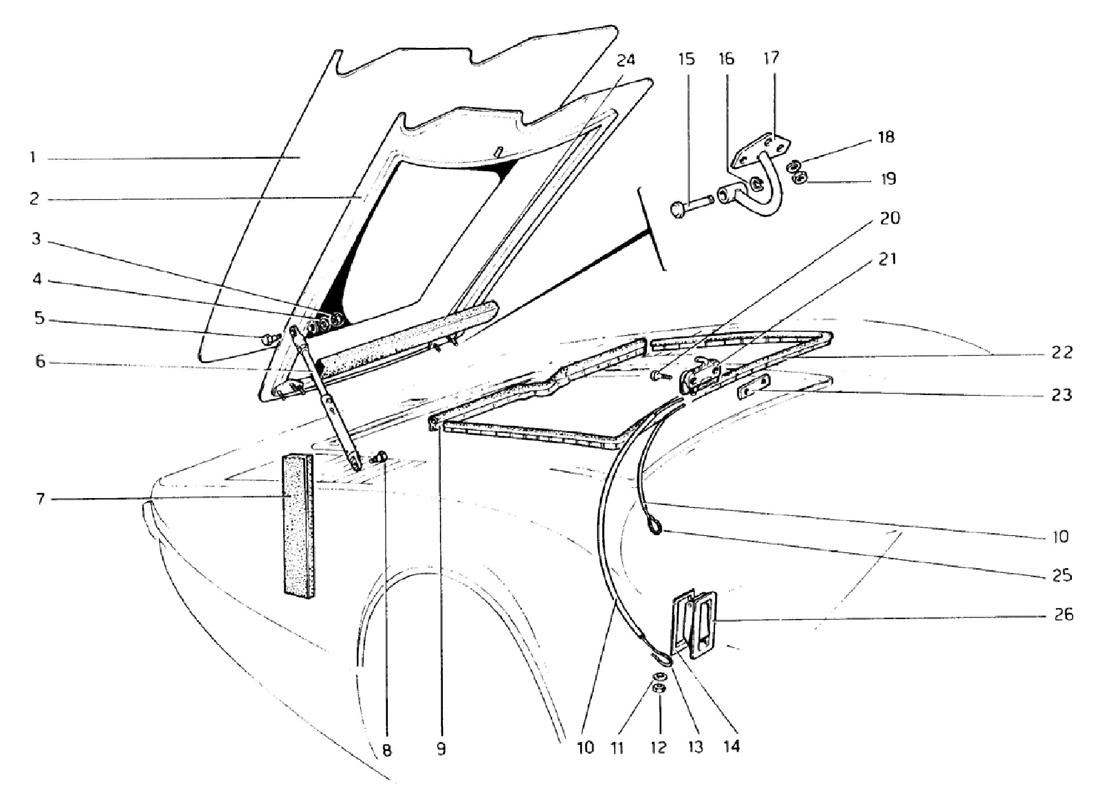

FRONT COMPARTMENT LID TABLE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60092806 *Qty: 1 Rivestimento cofano ant. Call
Location: 2 Prev | Next Part: 60139706 *Qty: 1 Intelaiatura cofano ant. $621.03
Location: 3 Prev | Next Part: 15896411 *Qty: 1 Nut Superseded
Location: 4 Prev | Next Part: 10615370 *Qty: 1 Rondella $0.90
Location: 5 Prev | Next Part: 40161903 *Qty: 1 Perno $18.00
Location: 6 Prev | Next Part: 60118007 *Qty: 1 Asta sostegno cofano ant. Superseded
Location: 7 Prev | Next Part: 60134103 *Qty: 2 Guarnizione laterale radiatore acqua Call
Location: 8 Prev | Next Part: 40161903 *Qty: 1 Perno $18.00
Location: 9 Prev | Next Part: 60030103 *Qty: 1 Guarnizione sul portaruota di scorta $25.67
Location: 10 Prev | Next Part: 60126604 *Qty: 2 Guaina per cavi apricofano $10.51
Location: 11 Prev | Next Part: 12638101 *Qty: 1 Rondella Superseded
Location: 12 Prev | Next Part: 15896411 *Qty: 1 Nut Superseded
Location: 13 Prev | Next Part: 60126505 *Qty: 1 Cavo per maniglia apricofano Superseded
Location: 14 Prev | Next Part: 60087509 *Qty: 1 Flangia per maniglia apricofano Superseded
Location: 15 Prev | Next Part: 60061504 *Qty: 2 Perno Superseded
Location: 16 Prev | Next Part: 11065675 *Qty: 2 Seeger Ring Superseded
Location: 17 Prev | Next Part: 60061009 *Qty: 1 Cerniera mobile Dx. $147.55
Location: 17 Prev | Next Part: 60061108 *Qty: 1 Cerniera mobile Sx. $154.80
Location: 18 Prev | Next Part: 10615470 *Qty: 6 Rondella Call
Location: 19 Prev | Next Part: 15896211 *Qty: 6 Nut Superseded
Location: 20 Prev | Next Part: 10902811 *Qty: 2 Vite Call
Location: 21 Prev | Next Part: 60023405 *Qty: 1 Serratura per cofano ant. Superseded
Location: 22 Prev | Next Part: 60163607 *Qty: 1 Guarnizione post. vano cofano Superseded
Location: 23 Prev | Next Part: 60118403 *Qty: 1 Piastrina filettata $9.58
Location: 24 Prev | Next Part: 40150104 *Qty: 1 Guarnizione superiore radiatore Call
Location: 25 Prev | Next Part: 60126703 *Qty: 1 Cavo di sicurezza $6.30
Location: 26 Prev | Next Part: 60086105 *Qty: 1 Maniglia apricofano ant. Superseded

* Quantity shown indicates the number of pieces used in the diagram.
