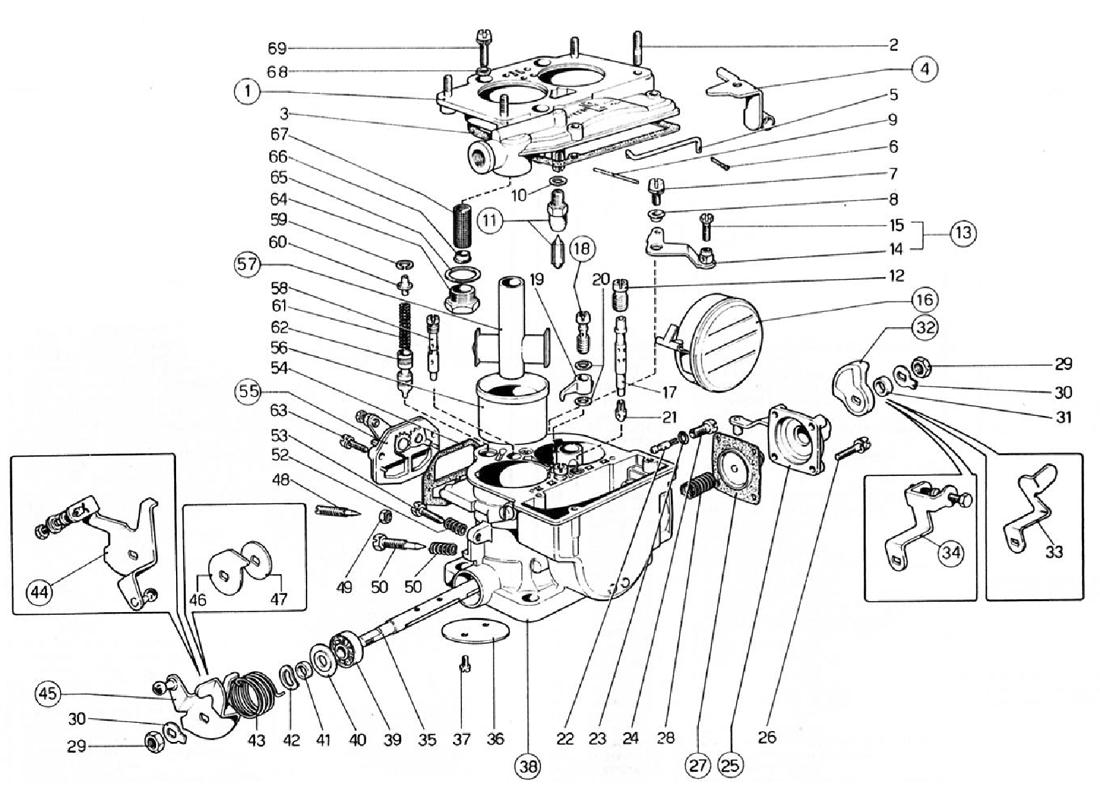

CARBURETORS (WEBER 40 DCNF 57 - 58 - 59 - 60)

Go to Split View

CARBURETORS (WEBER 40 DCNF 57 - 58 - 59 - 60)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 31716.220 *Qty: 1 Coperchio carburatore completo di: Call
Location: 2 Prev | Next Part: 64960.002 *Qty: 4 Vite prigioniera Call
Location: 3 Prev | Next Part: 41705.046 *Qty: 1 Guarnizione percoperchio carburat. Call
Location: 4 Prev | Next Part: 58700.034 *Qty: 1 Supporto guaina
Percarb. 40 DCNF 57
Call
Location: 5 Prev | Next Part: 61280.111 *Qty: 1 Tirantino comando avviamento
Percarb. 40 DCNF 57-59
Call
Location: 6 Prev | Next Part: 32610.005 *Qty: 1 Copiglia pertirantino
Percarb. 40 DCNF 57-59
Call
Location: 7 Prev | Next Part: 64700.012 *Qty: 1 Vite fissaggio leva avviamento
Percarb. 40 DCNF 57-59
Call
Location: 8 Prev | Next Part: 12775.017 *Qty: 1 Bush
Percarb. 40 DCNF 57-59
Call
Location: 9 Prev | Next Part: 5200.001 *Qty: 1 Perno fulcro galleggiante Call
Location: 10 Prev | Next Part: 41535.015 *Qty: 1 Guarnizione per valvola a spillo Call
Location: 11 Prev | Next Part: 64240.015 *Qty: 1 Valvola a spillo (175) Call
Location: 12 Prev | Next Part: 41370.001 *Qty: 2 Getto aria di freno (200) Call
Location: 13 Prev | Next Part: 45096.033 *Qty: 1 Leva comando avviamento comprendente : Call
Location: 14 Prev | Next Part: 45096.032 *Qty: 1 Leva
Percarb. 40 DCNF 57-59
Call
Location: 15 Prev | Next Part: 64615.004 *Qty: 1 Vite ferma filo
Percarb. 40 DCNF 57- 59
Call
Location: 16 Prev | Next Part: 41015.005 *Qty: 1 Galleggiante (livellatura 50) Call
Location: 17 Prev | Next Part: 61450.224 *Qty: 2 Tubetto emulsionatore (F 36) Call
Location: 18 Prev | Next Part: 64290.014 *Qty: 1 Valvola mandata pompa (50) Call
Location: 19 Prev | Next Part: 41252.018 *Qty: 1 Getto pompa (45) Call
Location: 20 Prev | Next Part: 41530.012 *Qty: 2 Guarnizione per getto pompa Call
Location: 21 Prev | Next Part: 41115.003 *Qty: 2 Getto principale (130) Call
Location: 22 Prev | Next Part: 41160.005 *Qty: 2 Getto minimo (50) Call
Location: 23 Prev | Next Part: 41565.002 *Qty: 2 Guarnizione per porta getto minimo Call
Location: 24 Prev | Next Part: 52570.006 *Qty: 2 Porta getto minimo Call
Location: 25 Prev | Next Part: 32486.041 *Qty: 1 Coperchio pompa Call
Location: 26 Prev | Next Part: 64700.006 *Qty: 4 Vite fissaggio coperchio pompa Call
Location: 27 Prev | Next Part: 47407.050 *Qty: 1 Membrana pompa Call
Location: 28 Prev | Next Part: 47600.107 *Qty: 1 Molla caricamento pompa Call
Location: 29 Prev | Next Part: 34710.003 *Qty: 2 Nut Call
Location: 30 Prev | Next Part: 55520.004 *Qty: 2 Rosetta di sicurezza Call
Location: 31 Prev | Next Part: 12750.032 *Qty: 1 Bush Call
Location: 32 Prev | Next Part: 14852.011 *Qty: 1 Gamma comando pompa Call
Location: 33 Prev | Next Part: 45136.061 *Qty: 1 Leva comando farfalle
Percarb. 40 DCNF 60
Call
Location: 34 Prev | Next Part: 45041.099 *Qty: 1 Leva comando farfalle
Percarb. 40 DCNF 58
Call
Location: 35 Prev | Next Part: 10005.211 *Qty: 1 Alberino principale Call
Location: 36 Prev | Next Part: 64005.020 *Qty: 2 Valvola a farfalla Call
Location: 37 Prev | Next Part: 64520.027 *Qty: 4 Vite fissaggio farfalla Call
Location: 38 Prev | Next Part: - *Qty: 1 Corpo carburatore
Non a ricambio
Call
Location: 39 Prev | Next Part: 32650.001 *Qty: 2 Cuscinetto a sfera Call
Location: 40 Prev | Next Part: 58000.017 *Qty: 2 Scodellino premi cuscinetto Call
Location: 41 Prev | Next Part: 12750.053 *Qty: 2 Distanziale per alberino principale Call
Location: 42 Prev | Next Part: 55530.010 *Qty: 2 Rosetta di frizione Call
Location: 43 Prev | Next Part: 47610.078 *Qty: 1 Molla ritorno leva Call
Location: 44 Prev | Next Part: 45048.043 *Qty: 1 Leva comando farfalle
Per carb. 40 DCNF 59
Call
Location: 45 Prev | Next Part: 45048.040 *Qty: 1 Leva comando farfalle
Per carb. 40 DCNF 57
Call
Location: 46 Prev | Next Part: 55555.040 *Qty: 1 Rosetta per molla
Percarb. 40 DCNF 58-60
Call
Location: 47 Prev | Next Part: 55555.005 *Qty: 1 Rosetta di rasamento
Percarb. 40 DCNF 58 -60
Call
Location: 48 Prev | Next Part: 64750.002 *Qty: 2 Nut Call
Location: 49 Prev | Next Part: 34705.001 *Qty: 2 Nut Call
Location: 50 Prev | Next Part: 64755.003 *Qty: 2 Vite registro miscela minimo Call
Location: 51 Prev | Next Part: 47600.007 *Qty: 2 Molla per vite registro minimo Call
Location: 52 Prev | Next Part: 47600.007 *Qty: 1 Molla per vite registro farfalle
Per carb. 40 DCNF 57- 59
Call
Location: 53 Prev | Next Part: 64625.014 *Qty: 1 Vite registro farfalle
Per carb. 40 DCNF 57- 59
Call
Location: 54 Prev | Next Part: 41640.048 *Qty: 1 Guarnizione per coperchio avviam. Call
Location: 55 Prev | Next Part: 32556.029 *Qty: 1 Coperchio avviamento Call
Location: 56 Prev | Next Part: 34914.019 *Qty: 2 Diffusore (32) Call
Location: 57 Prev | Next Part: 31966.008 *Qty: 2 Centratore (4,5 L) Call
Location: 58 Prev | Next Part: 41205.102 *Qty: 2 Getto avviamento (100F6) Call
Location: 59 Prev | Next Part: 10140.002 *Qty: 2 Seeger Ring Call
Location: 60 Prev | Next Part: 12775.024 *Qty: 2 Bush Call
Location: 61 Prev | Next Part: 47600.139 *Qty: 2 Molla per valvola avviamento Call
Location: 62 Prev | Next Part: 64330.008 *Qty: 2 Valvola avviamento Call
Location: 63 Prev | Next Part: 64700.004 *Qty: 2 Vite fiss. coperchio avviamento Call
Location: 64 Prev | Next Part: 61002.010 *Qty: 1 Tappo ispezione filtro Call
Location: 65 Prev | Next Part: 41530.024 *Qty: 1 Guarnizione per tappo filtro Call
Location: 66 Prev | Next Part: 61060.001 *Qty: 1 Tappo per elemento filtrante Call
Location: 67 Prev | Next Part: 37020.002 *Qty: 1 Elemento filtrante Call
Location: 68 Prev | Next Part: 55510.034 *Qty: 5 Rosetta piana Call
Location: 69 Prev | Next Part: 64700.005 *Qty: 5 Vite fiss. coperchio carburatore Call

* Quantity shown indicates the number of pieces used in the diagram.
