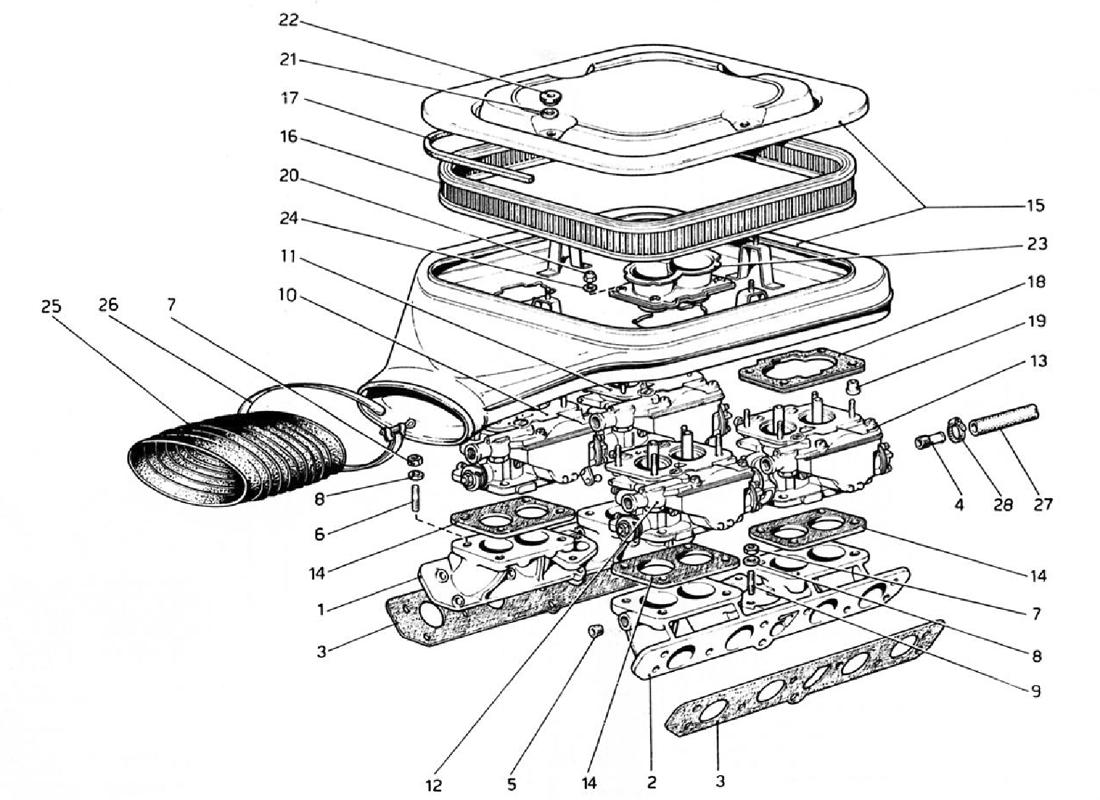

CARBURETORS AND AIR CLEANER

Go to Split View

CARBURETORS AND AIR CLEANER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 103591 *Qty: 1 Collettore di aspirazione destro Superseded
Location: 1 Prev | Next Part: 107114 *Qty: 1 Collettore aspirazione destro completo $820.64
Location: 2 Prev | Next Part: 103871 *Qty: 1 Collettore di aspirazione sinistro Call
Location: 2 Prev | Next Part: 107115 *Qty: 1 Collettore aspirazione sinistro completo Call
Location: 3 Prev | Next Part: 147674 *Qty: 2 Inlet Manifold Gasket
Use on Exhaustion of 104031
$16.01
Location: 3 Prev | Next Part: 104031 *Qty: 2 GASKET Superseded
Location: 4 Prev | Next Part: 103870 *Qty: 1 Raccordo sul collettore destro Call
Location: 5 Prev | Next Part: 10269550 *Qty: 1 Tappo $0.93
Location: 6 Prev | Next Part: 13517121 *Qty: 16 Tappo Prigioniero fissaggio carburatori Call
Location: 7 Prev | Next Part: 16100811 *Qty: 20 Nut Superseded
Location: 8 Prev | Next Part: 11198071 *Qty: 20 Rondella conica Superseded
Location: 9 Prev | Next Part: 13516821 *Qty: 4 Prigioniero fissag. collettore uscita acqua $1.10
Location: 10 Prev | Next Part: 108894 *Qty: 1 Carburatore destro posteriore
WEBER 40DCNF 60
$984.54
Location: 11 Prev | Next Part: 108896 *Qty: 1 Carburatore sinistro posteriore
WEBER 40DCNF 59
Call
Location: 12 Prev | Next Part: 108893 *Qty: 1 Carburatore anteriore destro
WEBER 40 DCNF 58
$669.99
Location: 13 Prev | Next Part: 108895 *Qty: 1 Carburatore anter. sinistro
WEBER 40DCNF 57
Call
Location: 14 Prev | Next Part: 103786 *Qty: 4 Spacer $83.59
Location: 15 Prev | Next Part: 108289 *Qty: 1 Assieme presa aria Call
Location: 16 Prev | Next Part: 108948 *Qty: 1 Filtro aria
Serve per versione tropico
Superseded
Location: 16 Prev | Next Part: 108545 *Qty: 1 Filtro aria
Non serve per tropico
Superseded
Location: 17 Prev | Next Part: 104548 *Qty: 1 Guarnizione sul coperchio Superseded
Location: 18 Prev | Next Part: 103923 *Qty: 4 GASKET $40.80
Location: 19 Prev | Next Part: 103925 *Qty: 16 Spacer $18.24
Location: 20 Prev | Next Part: 12574111 *Qty: 16 Self-locking Nut Superseded
Location: 21 Prev | Next Part: 104549 *Qty: 4 GASKET $3.94
Location: 22 Prev | Next Part: 104550 *Qty: 4 Pomello fissaggio coperchio $5.00
Location: 23 Prev | Next Part: 105736 *Qty: 4 Trombetta Call
Location: 24 Prev | Next Part: 10519301 *Qty: 16 Rondella $0.90
Location: 25 Prev | Next Part: 107103 *Qty: 1 Soffietto fra presa aria e carrozzeria $149.94
Location: 26 Prev | Next Part: 10300190 *Qty: 2 Jubilee Clip Call
Location: 27 Prev | Next Part: 107982 *Qty: 1 Tubo dal collettore alla valvola di non ritorno Call
Location: 28 Prev | Next Part: 100507 *Qty: 1 Jubilee Clip Call

* Quantity shown indicates the number of pieces used in the diagram.
