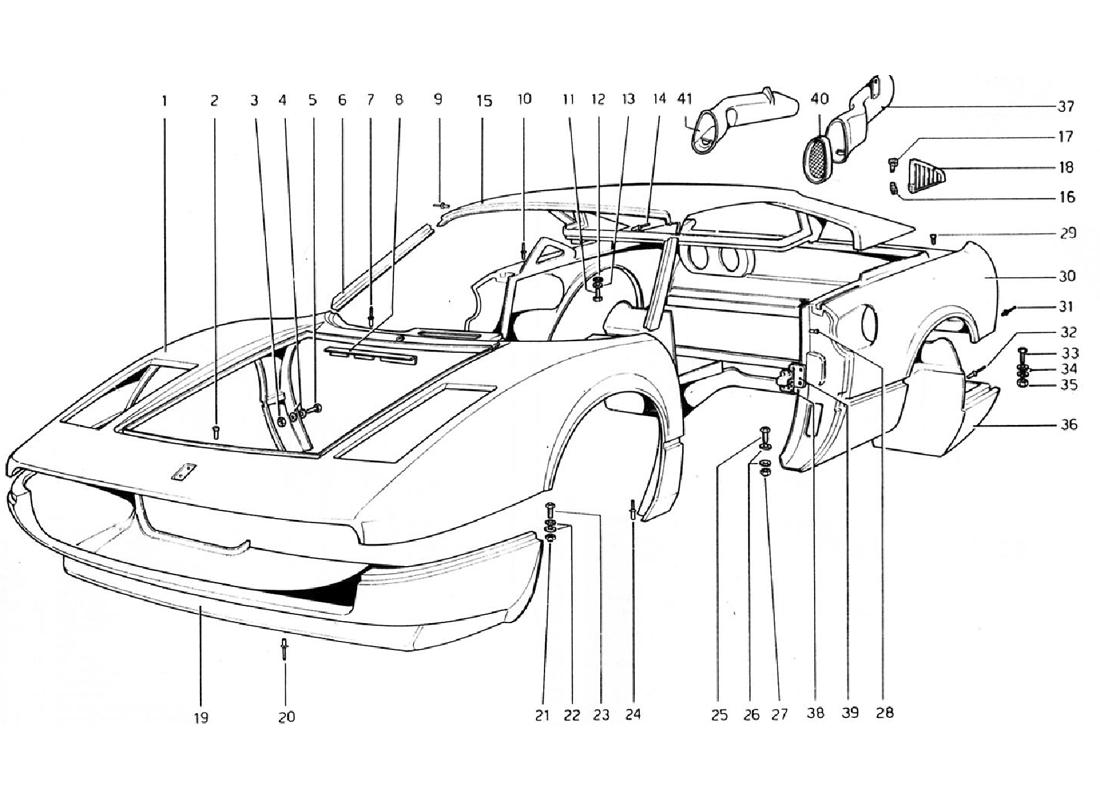

BODY SHELL - OUTER ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60001807 *Qty: 1 Rivestimento ant. Call
Location: 2 Prev | Next Part: 13274000 *Qty: 11 Vite Call
Location: 3 Prev | Next Part: 12574111 *Qty: 8 Nut Superseded
Location: 4 Prev | Next Part: 12638101 *Qty: 16 Rondella Superseded
Location: 5 Prev | Next Part: 10977711 *Qty: 8 Vite Superseded
Location: 6 Prev | Next Part: 60031408 *Qty: 1 Rivestimento piantone Dx. $321.01
Location: 6 Prev | Next Part: 60031507 *Qty: 1 Rivestimento piantone Sx. $321.01
Location: 7 Prev | Next Part: 30164008 *Qty: 23 Rivetto Call
Location: 8 Prev | Next Part: 60159803 *Qty: 1 Spessore Call
Location: 9 Prev | Next Part: 60059301 *Qty: 70 Rivetto Call
Location: 10 Prev | Next Part: 50208400 *Qty: 18 Rivetto Call
Location: 11 Prev | Next Part: 10977704 *Qty: 6 Vite Call
Location: 12 Prev | Next Part: 12605270 *Qty: 6 Rondella $0.90
Location: 13 Prev | Next Part: 12638101 *Qty: 6 Rondella Superseded
Location: 14 Prev | Next Part: 30164008 *Qty: 38 Rivetto Call
Location: 15 Prev | Next Part: 60000502 *Qty: 1 Rivestimento padiglione Call
Location: 16 Prev | Next Part: 60149002 *Qty: 1 Cerniera inferiore griglia $28.48
Location: 17 Prev | Next Part: 60149002 *Qty: 1 Cerniera superiore griglia $28.48
Location: 18 Prev | Next Part: 60057809 *Qty: 1 Griglietta laterale Dx. $140.77
Location: 18 Prev | Next Part: 60036001 *Qty: 1 Griglietta laterale Sx. Superseded
Location: 19 Prev | Next Part: 60000601 *Qty: 1 Rivestimento anteriore inferiore Superseded
Location: 20 Prev | Next Part: 30156400 *Qty: 9 Rivetto Call
Location: 21 Prev | Next Part: 12574111 *Qty: 14 Nut Superseded
Location: 22 Prev | Next Part: 12638101 *Qty: 28 Rondella Superseded
Location: 23 Prev | Next Part: 10977711 *Qty: 14 Vite Superseded
Location: 24 Prev | Next Part: 30156301 *Qty: 2 Rivetto Call
Location: 25 Prev | Next Part: 10977711 *Qty: 10 Vite Superseded
Location: 26 Prev | Next Part: 12638101 *Qty: 20 Rondella Superseded
Location: 27 Prev | Next Part: 12574111 *Qty: 10 Nut Superseded
Location: 28 Prev | Next Part: 60149200 *Qty: 14 Ribattino $0.90
Location: 29 Prev | Next Part: 13274000 *Qty: 24 Vite Call
Location: 30 Prev | Next Part: 60036902 *Qty: 1 Rivestimento post. $7,187.36
Location: 31 Prev | Next Part: 60159001 *Qty: 32 Rivetto $1.04
Location: 32 Prev | Next Part: 60159001 *Qty: 75 Rivetto $1.04
Location: 33 Prev | Next Part: 10977711 *Qty: 8 Vite Superseded
Location: 34 Prev | Next Part: 12638101 *Qty: 16 Rondella Superseded
Location: 35 Prev | Next Part: 12574111 *Qty: 8 Nut Superseded
Location: 36 Prev | Next Part: 60000700 *Qty: 1 Rivestimento post. inferiore Call
Location: 37 Prev | Next Part: 60222403 *Qty: 11 Condotto presa aria Sx. Call
Location: 38 Prev | Next Part: 20019105 *Qty: 1 Riscontro serratura Dx. $403.61
Location: 38 Prev | Next Part: 20019204 *Qty: 1 Riscontro serratura Sx. $395.92
Location: 39 Prev | Next Part: 60163003 *Qty: 2 Spacer $9.30
Location: 40 Prev | Next Part: 60200409 *Qty: 1 Griglia presa aria laterale Sx.
Vale per D
Call
Location: 40 Prev | Next Part: 60200300 *Qty: 1 Griglia presa aria laterale Dx.
Vale per D
Call
Location: 41 Prev | Next Part: 60202900 *Qty: 1 Condotto presa aria Dx. Call

* Quantity shown indicates the number of pieces used in the diagram.
