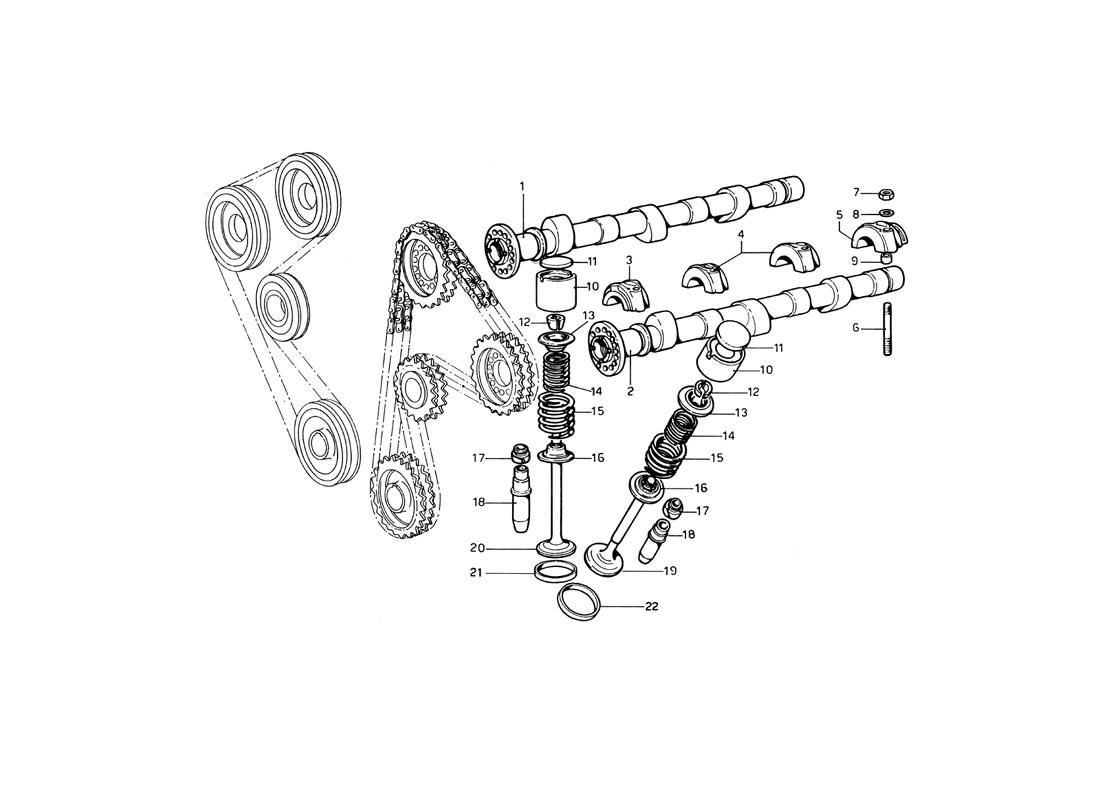

TIMING

Go to Split View

TIMING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 236E16251 *Qty: 1 Albero distribuzione aspirazione completo Call
Location: 1 Prev | Next Part: 236E16251 *Qty: 1 Albero distribuzione scarico completo Call
Location: 2 Prev | Next Part: 236E16252 *Qty: 1 Albero distribuzione aspirazione completo Call
Location: 2 Prev | Next Part: 236E16252 *Qty: 1 Albero distribuzione scarico completo Call
Location: 3 Prev | Next Part: 4146772 *Qty: 4 Cappello anteriore Call
Location: 4 Prev | Next Part: 4146773 *Qty: 8 Cappello intermedio Call
Location: 5 Prev | Next Part: 4146774 *Qty: 4 Cappello posteriore Call
Location: 6 Prev | Next Part: 4146790 *Qty: 32 Prigioniero per capped! Call
Location: 7 Prev | Next Part: 15896211 *Qty: 32 Dado EM 6x1 Superseded
Location: 8 Prev | Next Part: 11197773 *Qty: 32 Rondella conica Superseded
Location: 9 Prev | Next Part: 102725 *Qty: 32 Grano di centraggio $0.90
Location: 10 Prev | Next Part: 4152447 *Qty: 12 Punteria comando valvola Superseded
Location: 11 Prev | Next Part: 4204144 *Qty: 12 Idem - spessore mm. 3.40 Call
Location: 11 Prev | Next Part: 4181814 *Qty: 12 Idem - spessore mm. 4.80 Call
Location: 11 Prev | Next Part: 102851 *Qty: 12 Idem - spessore mm. 4.40 $11.32
Location: 11 Prev | Next Part: 4181796 *Qty: 12 Idem - spessore mm. 3.97 Call
Location: 11 Prev | Next Part: 4204143 *Qty: 12 Idem - spessore mm. 3.35 Call
Location: 11 Prev | Next Part: 4204145 *Qty: 12 Idem - spessore mm. 3.45 Call
Location: 11 Prev | Next Part: 4181816 *Qty: 12 Idem - spessore mm. 4.85 Call
Location: 11 Prev | Next Part: 4181805 *Qty: 12 Idem - spessore mm. 4.42 Call
Location: 11 Prev | Next Part: 102844 *Qty: 12 Idem - spessore mm. 4.05 $11.32
Location: 11 Prev | Next Part: 108833 *Qty: 12 Idem - spessore mm. 3.50 Call
Location: 11 Prev | Next Part: 4181817 *Qty: 12 Idem - spessore mm. 4.87 Call
Location: 11 Prev | Next Part: 102852 *Qty: 12 Idem - spessore mm. 4.45 $11.32
Location: 11 Prev | Next Part: 4181798 *Qty: 12 Idem - spessore mm. 4.07 Call
Location: 11 Prev | Next Part: 102834 *Qty: 12 Idem - spessore mm. 3.55 $11.32
Location: 11 Prev | Next Part: 102836 *Qty: 12 Idem -''spessore mm. 3.65 $10.20
Location: 11 Prev | Next Part: 4181806 *Qty: 12 Idem - spessore mm. 4.47 Call
Location: 11 Prev | Next Part: 102845 *Qty: 12 Idem - spessore mm. 4.10 $10.20
Location: 11 Prev | Next Part: 4181790 *Qty: 12 Idem - spessore mm. 3.67 Call
Location: 11 Prev | Next Part: 102835 *Qty: 12 Idem -spessore mm. 3.60 Call
Location: 11 Prev | Next Part: 102853 *Qty: 12 Idem - spessore mm. 4.50 $10.20
Location: 11 Prev | Next Part: 4181799 *Qty: 12 Idem - spessore mm. 4.12 Call
Location: 11 Prev | Next Part: 102837 *Qty: 12 Idem - spessore mm. 3.70 $10.20
Location: 11 Prev | Next Part: 4181797 *Qty: 12 Ideta - spessore mm. 4.02 Call
Location: 11 Prev | Next Part: 4181807 *Qty: 12 Idem - spessore mm. 4.52 Call
Location: 11 Prev | Next Part: 102854 *Qty: 12 Idem - spessore mm. 4.55 $11.32
Location: 11 Prev | Next Part: 102846 *Qty: 12 Idem - spessore mm. 4.15 $11.32
Location: 11 Prev | Next Part: 4181791 *Qty: 12 Idem - spessore mm. 3.72 Call
Location: 11 Prev | Next Part: 102843 *Qty: 12 Piattello per registrazione valvole spessore mm. 4 $11.32
Location: 11 Prev | Next Part: 4181808 *Qty: 12 Idem - spessore mm. 4.57 Call
Location: 11 Prev | Next Part: 4181800 *Qty: 12 idem - spessore mm. 4.17 Call
Location: 11 Prev | Next Part: 102838 *Qty: 12 Idem - spessore mm. 3.75 $10.20
Location: 11 Prev | Next Part: 4162889 *Qty: 12 Idem - spessore mm. 4.60 Superseded
Location: 11 Prev | Next Part: 102847 *Qty: 12 Idem - spessore mm. 4.20 $11.32
Location: 11 Prev | Next Part: 4181792 *Qty: 12 Idem - spessore mm. 3.77 Call
Location: 11 Prev | Next Part: 4181809 *Qty: 12 Idem - spessore mm. 4.62 Call
Location: 11 Prev | Next Part: 4181801 *Qty: 12 Idem - spessore mm. 4.22 Call
Location: 11 Prev | Next Part: 102839 *Qty: 12 Idem - spessore mm. 3.80 $11.32
Location: 11 Prev | Next Part: N162890 *Qty: 12 Idem - spessore mm. 4.65 Call
Location: 11 Prev | Next Part: 102848 *Qty: 12 Idem - spessore mm. 4.25 $11.32
Location: 11 Prev | Next Part: 4181793 *Qty: 12 Idem - spessore mm. 3.82 Call
Location: 11 Prev | Next Part: 4181810 *Qty: 12 Idem - spessore mm. 4.67 Call
Location: 11 Prev | Next Part: 4181802 *Qty: 12 Idem - spessore mm. 4.27 Call
Location: 11 Prev | Next Part: 102840 *Qty: 12 Idem - spessore mm. 3.85 Call
Location: 11 Prev | Next Part: 4181815 *Qty: 12 Idem * spessore mm. 4.82 Call
Location: 11 Prev | Next Part: 4162891 *Qty: 12 Idem - spessore mm. 4.70 Call
Location: 11 Prev | Next Part: 102849 *Qty: 12 Idem - spessore mm. 4.30 $11.67
Location: 11 Prev | Next Part: 4181794 *Qty: 12 Idem - spessore mm. 3.87 Call
Location: 11 Prev | Next Part: 4181818 *Qty: 12 Idem * spessore mm. 4.90 $3.39
Location: 11 Prev | Next Part: 4181811 *Qty: 12 Idem - spessore mm. 4.72 Call
Location: 11 Prev | Next Part: 4181803 *Qty: 12 Idem - spessore mm. 4.32 Call
Location: 11 Prev | Next Part: 102841 *Qty: 12 Idem - spessore mm. 3.90 Call
Location: 11 Prev | Next Part: 4204141 *Qty: 12 Idem - spessore mm. 3.25 Call
Location: 11 Prev | Next Part: 4181812 *Qty: 12 Idem - spessore mm. 4.75 Call
Location: 11 Prev | Next Part: 102850 *Qty: 12 Idem - spessore mm. 4.35 $11.67
Location: 11 Prev | Next Part: 4181795 *Qty: 12 Idem - spessore mm. 3.92 Call
Location: 11 Prev | Next Part: 4204142 *Qty: 12 Idem - spessore mm. 3.30 Call
Location: 11 Prev | Next Part: 4181813 *Qty: 12 Idem - spessore mm. 4.77 Call
Location: 11 Prev | Next Part: 4181804 *Qty: 12 Idem - spessore mm. 4.37 Call
Location: 11 Prev | Next Part: 102842 *Qty: 12 Idem - spessore mm. 3.95 $11.67
Location: 12 Prev | Next Part: 102862 *Qty: 24 Semicono ritegno scodellino $14.04
Location: 13 Prev | Next Part: 106180 *Qty: 12 Scodellino superiore
Dopo esaurim. N. F41 78524
$67.28
Location: 13 Prev | Next Part: 4178024 *Qty: 12 Scodellino superiore
Vale fino ad esaurim.
Call
Location: 14 Prev | Next Part: 4146798 *Qty: 12 Molla interna Superseded
Location: 15 Prev | Next Part: 4146799 *Qty: 12 Molla esterna Superseded
Location: 16 Prev | Next Part: 4178525 *Qty: 12 Scodellino inferiore
Vale fino ad esaurim.
Call
Location: 16 Prev | Next Part: 106181 *Qty: 12 Scodellino inferiore
Dopo esaurim. N. F4178525
$40.27
Location: 17 Prev | Next Part: 4174355 *Qty: 12 Paraolio per vaivole $9.82
Location: 18 Prev | Next Part: 236E16253 *Qty: 12 Guida valvofe aspirazione e scarico
Vale dal N. 05888
Call
Location: 18 Prev | Next Part: 4178521 *Qty: 12 Guida vaivole aspirazione e scarico
Vale fino N. 05880
Call
Location: 19 Prev | Next Part: 4178519 *Qty: 6 Valvoia di aspirazione $74.40
Location: 20 Prev | Next Part: 106553 *Qty: 12 Valvoia di scarico
Dopo esaurim. N. F4198464
$289.88
Location: 20 Prev | Next Part: 4198464 *Qty: 12 Valvola di scarico
Vale fino ad esaurim.
Superseded
Location: 21 Prev | Next Part: 4225823 *Qty: 6 Sede valvola scarico $57.29
Location: 22 Prev | Next Part: 4225822 *Qty: 6 Sede valvola aspirazione Call

* Quantity shown indicates the number of pieces used in the diagram.
