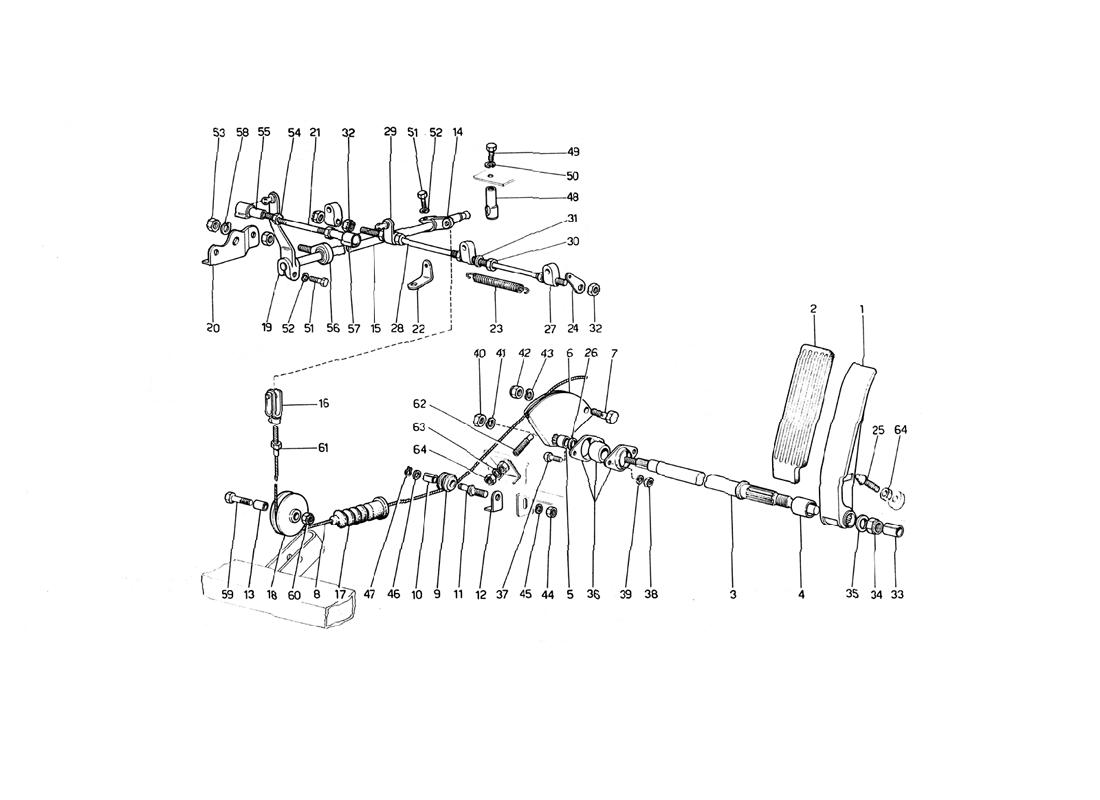

THROTTLE CONTROL (VARIANTS FOR RHD VERSIONS)

Go to Split View

THROTTLE CONTROL (VARIANTS FOR RHD VERSIONS)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 236E18131 *Qty: 1 Assieme pedale acceleratore
Per GD
Call
Location: 2 Prev | Next Part: 236E18131 *Qty: 1 Copertura pedale
Per GD
Call
Location: 3 Prev | Next Part: 236E18131 *Qty: 1 Albero rinvio
Per GD
Call
Location: 4 Prev | Next Part: 236E18131 *Qty: 1 Distanziale
Per GD
Call
Location: 5 Prev | Next Part: 236E18132 *Qty: 1 Distanziale
Per GD
Call
Location: 6 Prev | Next Part: 236E18132 *Qty: 1 Settore comando acceleratore
Per GD
Call
Location: 7 Prev | Next Part: 236E18136 *Qty: 1 Bullone fissaggio cavo
Per GD
Call
Location: 8 Prev | Next Part: 236E18139 *Qty: 1 Cavo comando acceleratore
Per GD
Call
Location: 9 Prev | Next Part: 236B-18084 *Qty: 1 Carrucola piccola
Per GD
Call
Location: 10 Prev | Next Part: 236B-18076 *Qty: 1 Boccola (TRIONE MB 0610 DU)
Per GD
Call
Location: 11 Prev | Next Part: 236B-18084 *Qty: 1 Perno carrucola
Per GD
Call
Location: 12 Prev | Next Part: 236B-18085 *Qty: 1 Guida per cavo
Per GD
Call
Location: 13 Prev | Next Part: 236E18138 *Qty: 1 Tubetto distanziale
Per GD
Call
Location: 14 Prev | Next Part: 236E18138 *Qty: 1 Assieme asta rinvio
Per GD
Call
Location: 14 Prev | Next Part: 236E18166 *Qty: 1 Leva sull''asta rinvio
Per GD
Call
Location: 15 Prev | Next Part: 236E18167 *Qty: 1 Asta rinvio
Per GD
Call
Location: 16 Prev | Next Part: 100655 *Qty: 1 Forcella registro cavo
Per GD
$140.78
Location: 17 Prev | Next Part: 236B-18072 *Qty: 1 Soffietto protezione cavo
Per GD
Call
Location: 18 Prev | Next Part: 4162944 *Qty: 1 Carrucola grande
Per GD
Call
Location: 19 Prev | Next Part: 236B-18076 *Qty: 1 Leva esterna
Per GD
Call
Location: 20 Prev | Next Part: 236E18167 *Qty: 1 Staffa sul coperchio teste attacco UNIBAL
Per GD
Call
Location: 21 Prev | Next Part: 100402 *Qty: 1 Tirante sui carburatori
Per GD
Call
Location: 22 Prev | Next Part: 236L-18129 *Qty: 1 Staffa sul coperchio attacco molla
Per GD
Call
Location: 23 Prev | Next Part: 102951 *Qty: 1 Molla richiamo asta
Per GD
$79.81
Location: 24 Prev | Next Part: 128E19005 *Qty: 1 Staffa sull''asta carburatori
Per GD
Call
Location: 25 Prev | Next Part: 236B-18081 *Qty: 1 Vite registro pedale
Per GD
Call
Location: 26 Prev | Next Part: 236E18160 *Qty: 1 Distanziale
Per GD
Call
Location: 27 Prev | Next Part: 4148645 *Qty: 3 Giunto
Per GD
$43.82
Location: 28 Prev | Next Part: 4148640 *Qty: 1 Asta
Per GD
Call
Location: 29 Prev | Next Part: 4148643 *Qty: 1 Staffetta
Per GD
Call
Location: 30 Prev | Next Part: 15896211 *Qty: 4 Dado
Per GD
Superseded
Location: 31 Prev | Next Part: 11197777 *Qty: 4 Rosetta
Per GD
Superseded
Location: 32 Prev | Next Part: 12574211 *Qty: 4 Dado
Per GD
Superseded
Location: 33 Prev | Next Part: 95870323 *Qty: 1 Boccola
Per GD
Call
Location: 34 Prev | Next Part: 16105121 *Qty: 1 Dado autobloccante
Per GD
Superseded
Location: 35 Prev | Next Part: 10730721 *Qty: 1 Rondella
Per GD
$0.90
Location: 36 Prev | Next Part: 95910041 *Qty: 1 Articolazione sferica
Per GD
Call
Location: 37 Prev | Next Part: 10902321 *Qty: 2 Builone
Per GD
Superseded
Location: 38 Prev | Next Part: 12574221 *Qty: 2 Dado autobloccante
Per GD
Superseded
Location: 39 Prev | Next Part: 103044 *Qty: 2 Rondella
Per GD
$9.31
Location: 40 Prev | Next Part: 16100821 *Qty: 1 Dado
Per GD
$3.46
Location: 41 Prev | Next Part: 11196070 *Qty: 1 Rondella
Per GD
Call
Location: 42 Prev | Next Part: 16104121 *Qty: 1 Dado
Per GD
Superseded
Location: 43 Prev | Next Part: 10730301 *Qty: 1 Rosetta
Per GD
Superseded
Location: 44 Prev | Next Part: 16100821 *Qty: 1 Dado
Per GD
$3.46
Location: 45 Prev | Next Part: 10516670 *Qty: 1 Rosetta
Per GD
$0.90
Location: 46 Prev | Next Part: 10730121 *Qty: 1 Rondella di rasamento
Per GD
$0.90
Location: 47 Prev | Next Part: 11065476 *Qty: 1 Seeger
Per GD
Superseded
Location: 48 Prev | Next Part: 95147 *Qty: 1 Giunto sferico
Per GD
$11.77
Location: 49 Prev | Next Part: 10902021 *Qty: 1 Bullone
Per GD
Superseded
Location: 50 Prev | Next Part: 10414102 *Qty: 1 Rondella
Per GD
Call
Location: 51 Prev | Next Part: 10902421 *Qty: 2 Bullone
Per GD
Superseded
Location: 52 Prev | Next Part: 10414102 *Qty: 2 Rondella
Per GD
Call
Location: 53 Prev | Next Part: 100965 *Qty: 2 Dado
Per GD
$1.14
Location: 54 Prev | Next Part: 95900718 *Qty: 2 Dado per registro
Per GD
Call
Location: 55 Prev | Next Part: 10124311 *Qty: 2 Giunto per tirante
Per GD
$26.25
Location: 56 Prev | Next Part: 95910005 *Qty: 1 Cuscinetto sferico
Per GD
Call
Location: 57 Prev | Next Part: 10124775 *Qty: 2 Molla per testina tirante
Per GD
Call
Location: 58 Prev | Next Part: 10413770 *Qty: 1 Rondella
Per GD
$0.90
Location: 59 Prev | Next Part: 10902621 *Qty: 1 Bullone
Per GD
Superseded
Location: 60 Prev | Next Part: 12574211 *Qty: 1 Dado
Per GD
Superseded
Location: 61 Prev | Next Part: 100861 *Qty: 1 Dado
Per GD
$0.90
Location: 62 Prev | Next Part: VITERIAEMI *Qty: 1 Grano di registro
Per GD
Call
Location: 63 Prev | Next Part: YITER1AEMI *Qty: 1 Rondeila
Per GD
Call
Location: 64 Prev | Next Part: 16102911 *Qty: 2 Dado
Per GD
Superseded

* Quantity shown indicates the number of pieces used in the diagram.
