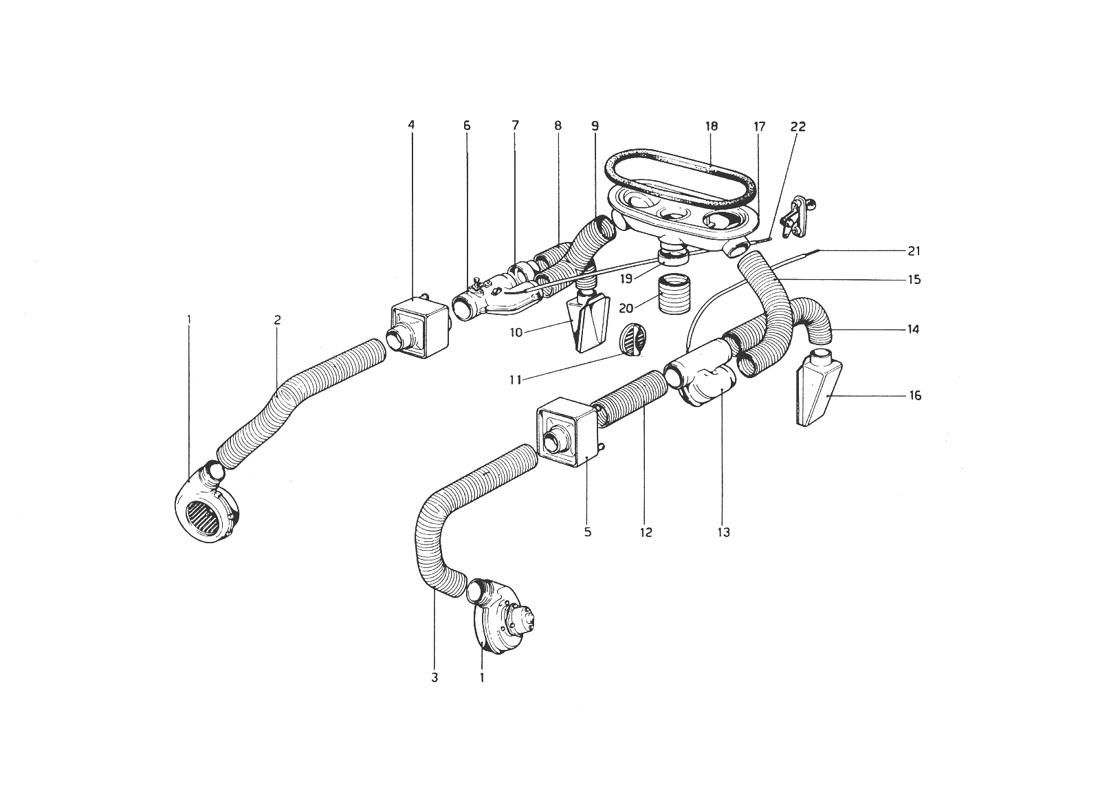

HEATING SYSTEM

Go to Split View

HEATING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 200944 *Qty: 1 Elettroventilatore Smith destro $704.00
Location: 1 Prev | Next Part: 200945 *Qty: 1 Elettroventilatore Smith sinistro $771.05
Location: 2 Prev | Next Part: 202494 *Qty: 1 Tubo convogiiatore destro
Vale dalla 1266 vett.
Call
Location: 2 Prev | Next Part: 201676 *Qty: 1 Tubo convoliiatore destro
Vale fino alla 1265 vett.
Call
Location: 3 Prev | Next Part: 201678 *Qty: 1 Tubo convogiiatore sinistro Call
Location: 4 Prev | Next Part: 201671 *Qty: 1 Riscaldatore destro
Vale dalla 751 fino alla 1265 vett
Call
Location: 4 Prev | Next Part: 200986 *Qty: 1 Riscaldatore destro
Vale fino alia 750 vett.
Call
Location: 4 Prev | Next Part: 202466 *Qty: 1 Riscaldatore destro
Vale dalla 1266 in poi
Call
Location: 5 Prev | Next Part: 201670 *Qty: 1 Riscaldatore sinistro Call
Location: 6 Prev | Next Part: 202465 *Qty: 1 Raccordo a tre vie destro
Vale dalla 751 vett.
Call
Location: 7 Prev | Next Part: 202610 *Qty: 1 Riduzione da ? 80 a ? 60
Vale dalla 751 alia 1265 e dalla 1451 in poi
Call
Location: 8 Prev | Next Part: 202633 *Qty: 1 Tubo ? 60
Non vale dalla 1266 alla 1450 vett.
Call
Location: 8 Prev | Next Part: 201672 *Qty: 1 Tubo ? 80
Vale dalla 1266 alla 1450 vett.
$6.68
Location: 9 Prev | Next Part: 201674 *Qty: 1 Tubo ? 80 Superseded
Location: 10 Prev | Next Part: 200755 *Qty: 1 Convogliatore destro ? 60 Call
Location: 10 Prev | Next Part: 202497 *Qty: 1 Convogliatore destro ? 80 Call
Location: 11 Prev | Next Part: 201038 *Qty: 2 Bocchette Call
Location: 12 Prev | Next Part: 201677 *Qty: 1 Tubo ? 80 Call
Location: 13 Prev | Next Part: 202268 *Qty: 1 Raccordo a tre vie sinistro Call
Location: 14 Prev | Next Part: 201672 *Qty: 1 Tubo ? 80 $6.68
Location: 15 Prev | Next Part: 201673 *Qty: 1 Tubo ? 80 Call
Location: 16 Prev | Next Part: 200756 *Qty: 1 Convogliatore sinistro ? 80 Call
Location: 17 Prev | Next Part: 201427 *Qty: 1 Distributor aria Call
Location: 18 Prev | Next Part: 201433 *Qty: 1 Quarnizione Call
Location: 19 Prev | Next Part: 201432 *Qty: 1 Tappo Call
Location: 20 Prev | Next Part: 202476 *Qty: 1 Tubo ? 100 Call
Location: 21 Prev | Next Part: 300479 *Qty: 1 Cavo comando defroster sinistro Call
Location: 22 Prev | Next Part: 202623 *Qty: 1 Cavo comando defroster destro Call

* Quantity shown indicates the number of pieces used in the diagram.
