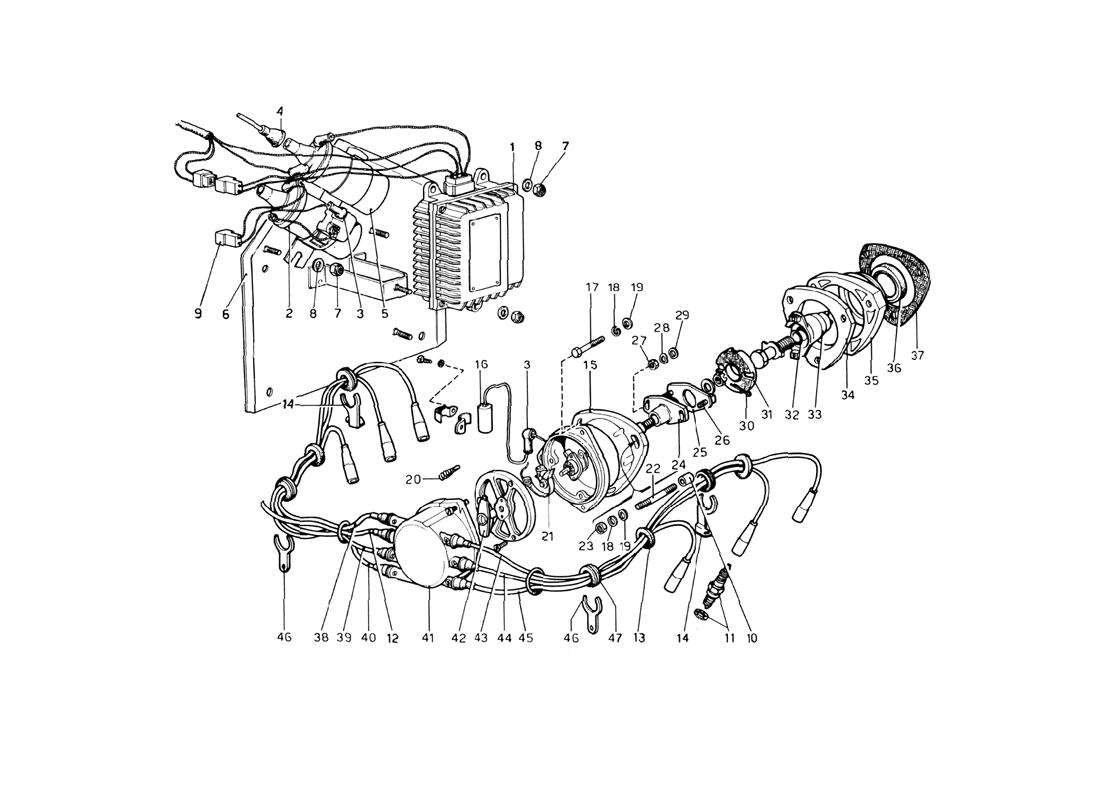

ENGINE IGNITION

Go to Split View

ENGINE IGNITION

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: - *Qty: 1 Complete HT Leads Set Call
Location: 1 Prev | Next Part: 236E29315 *Qty: 1 Gruppo elettronico (MARELLI AEC 103A) Call
Location: 2 Prev | Next Part: 100261 *Qty: 1 Bobina di emergenza (MARELLI BZR 201A)
Vale fino N. 06668
Call
Location: 2 Prev | Next Part: 607M40091 *Qty: 1 Assieme cavi collegamento bobina di emergenza
Vale fino N. 04828
Call
Location: 3 Prev | Next Part: 212-28919 *Qty: 5 Pipa coprimorsetti
Dal N. 06670 la quantita e 6
Call
Location: 4 Prev | Next Part: 12056980 *Qty: 1 Cappuccio Superseded
Location: 5 Prev | Next Part: 100591 *Qty: 1 Bobina alta tensione (MARELLI BAE 200A)
Vale fino N. 06668
Call
Location: 5 Prev | Next Part: 230E29334 *Qty: 1 Bobina alta tensione con emergenza
Valedal N. 06670
Call
Location: 6 Prev | Next Part: 607E40146 *Qty: 1 Assieme piastra per fissaggio dispositivi di accensione
Valedal N. 02930
Call
Location: 7 Prev | Next Part: 101239 *Qty: 10 Dado $1.78
Location: 8 Prev | Next Part: 94703 *Qty: 10 Rondella Superseded
Location: 9 Prev | Next Part: 607E40182 *Qty: 1 Cavi collegamento bobina
Vale dal N. 06670
Call
Location: 9 Prev | Next Part: 607E40153 *Qty: 1 Cavi collegamento bobina
Vale fino N. 06668
Call
Location: 10 Prev | Next Part: 4146563 *Qty: 2 Grano sulla testa Superseded
Location: 11 Prev | Next Part: 95300052 *Qty: 6 Candela (alta velocita) Call
Location: 11 Prev | Next Part: 100604 *Qty: 6 Candela (uso normale)
CHAMPION N6Y
$3.65
Location: 12 Prev | Next Part: - *Qty: 1 Cavo dal distributore alia bobina Call
Location: 13 Prev | Next Part: 4125542 *Qty: 4 Anello Call
Location: 14 Prev | Next Part: 4160513 *Qty: 2 Staffa Call
Location: 15 Prev | Next Part: 236E35027 *Qty: 1 Distributore accensione completo (MARELLI S 125 C) Call
Location: 15 Prev | Next Part: 236E35027 *Qty: 1 Distributore di accensione a doppia puntina
Vale dal N. 04830
Call
Location: 15 Prev | Next Part: 236E35027 *Qty: 1 Distributore di accensione a doppia puntina U.S. Call
Location: 16 Prev | Next Part: - *Qty: 1 Condensatore per distributore Call
Location: 17 Prev | Next Part: 16044221 *Qty: 1 Vite Call
Location: 18 Prev | Next Part: 11198077 *Qty: 3 Rosetta Call
Location: 19 Prev | Next Part: 10519601 *Qty: 3 Rosetta Jranciata Superseded
Location: 20 Prev | Next Part: - *Qty: 1 Carboncino con molla Call
Location: 21 Prev | Next Part: 95300083/8 *Qty: 2 Gruppo ruttore Call
Location: 22 Prev | Next Part: 13544021 *Qty: 2 THREADED STUD $1.66
Location: 23 Prev | Next Part: 16100811 *Qty: 2 Dado Superseded
Location: 24 Prev | Next Part: 4146865 *Qty: 1 Flangia Call
Location: 25 Prev | Next Part: 4146868 *Qty: 1 Flangia Call
Location: 26 Prev | Next Part: 11500021 *Qty: 2 THREADED STUD Superseded
Location: 27 Prev | Next Part: 15896211 *Qty: 2 Dado Superseded
Location: 28 Prev | Next Part: t1197777 *Qty: 2 Rosetta . Call
Location: 29 Prev | Next Part: 10730101 *Qty: 2 Rosetta Call
Location: 30 Prev | Next Part: 10734401 *Qty: 1 Copiglia 2x25 Call
Location: 31 Prev | Next Part: 4146867 *Qty: 1 Elemento centrale $134.23
Location: 32 Prev | Next Part: 4146870 *Qty: 1 Anello di tenuta Call
Location: 33 Prev | Next Part: 4146869 *Qty: 1 Manicotto con giunto Call
Location: 34 Prev | Next Part: 103816 *Qty: 1 Distanziale $121.83
Location: 35 Prev | Next Part: 103813 *Qty: 1 Supporto distr. complete di corteco Call
Location: 35 Prev | Next Part: 236E29328 *Qty: 1 Supporto distributore Call
Location: 36 Prev | Next Part: 40000210 *Qty: 1 Corteco $20.84
Location: 37 Prev | Next Part: 147642 *Qty: 1 Distributor Cap Base Gasket
Use on exhaustion of 103815
$5.88
Location: 37 Prev | Next Part: 103815 *Qty: 1 Guarnizione Superseded
Location: 38 Prev | Next Part: 4174685 *Qty: 1 Cavo accensione (mm 700) Call
Location: 39 Prev | Next Part: 4174684 *Qty: 1 Cavo accensione (mm 600) Call
Location: 40 Prev | Next Part: 4174683 *Qty: 1 Cavo accensione (mm 510) Call
Location: 41 Prev | Next Part: 95300041 *Qty: 1 Calotta distributore Call
Location: 42 Prev | Next Part: 95300289 *Qty: 1 Spazzola distributrice Call
Location: 43 Prev | Next Part: 4174688 *Qty: 1 Cavo accensione (mm 780) Call
Location: 44 Prev | Next Part: 4174686 *Qty: 1 Cavo accensione (mm 580) Call
Location: 45 Prev | Next Part: 93300301 *Qty: 1 Assieme cavi accensione dal distributore alle candele 1-2-3 Call
Location: 45 Prev | Next Part: 95300301 *Qty: 1 Assieme cavi accensione dal distributore alle candele 4-5-6 Call
Location: 45 Prev | Next Part: 4174687 *Qty: 1 Cavo accensione (mm 660) Call
Location: 45 Prev | Next Part: 4257534 *Qty: 1 Complessivo montaggio cavi accensione sul motore Call
Location: 46 Prev | Next Part: 4160514 *Qty: 2 Staffa Call
Location: 47 Prev | Next Part: 10396480 *Qty: 4 Anello $1.69

* Quantity shown indicates the number of pieces used in the diagram.
