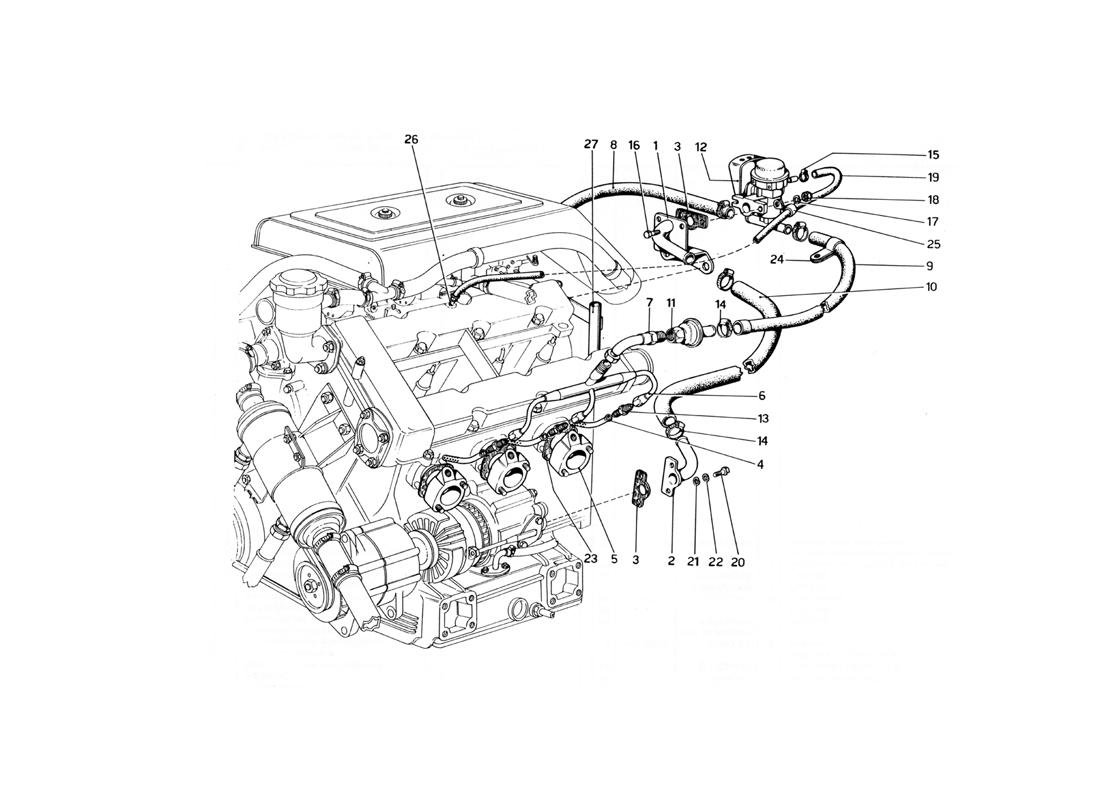

DIVERTER VALVE AND PIPES (VARIANTS FOR USA VERSIONS)

Go to Split View

DIVERTER VALVE AND PIPES (VARIANTS FOR USA VERSIONS)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 236E35021 *Qty: 1 Staffa attacco diverter valve
Per U.S
Call
Location: 2 Prev | Next Part: 236E35021 *Qty: 1 Flangia
Per U.S
Call
Location: 3 Prev | Next Part: 236E35022 *Qty: 2 Guarnizione
Per U.S
Call
Location: 4 Prev | Next Part: 236E35012 *Qty: 6 Tubo iniezione aria condotto di scarico
Per U.S
Call
Location: 5 Prev | Next Part: 236E35012 *Qty: 3 Flangia sostegno tubo iniezione anteriore
Per U.S
Call
Location: 5 Prev | Next Part: 236E35012 *Qty: 3 Flangia sostegno tubo iniezione posteriore
Per U.S
Call
Location: 6 Prev | Next Part: 236E35022 *Qty: 1 Tubo emissione aria collettore di scarico anteriore
Per U.S
Call
Location: 6 Prev | Next Part: 236E35022 *Qty: 1 Tubo emissione aria collettore di scarico posteriore
Per U.S
Call
Location: 7 Prev | Next Part: 236E35022 *Qty: 1 Raccordo per tubo emissione aria anteriore
Per U.S
Call
Location: 8 Prev | Next Part: 236E35023 *Qty: 1 Tubo dalla single check-valve alla diverter valve-posteriore
Per U.S
Call
Location: 9 Prev | Next Part: 236E35023 *Qty: 1 Tubo dalla single check-valve alla diverter valve-anteriore
Per U.S
Call
Location: 10 Prev | Next Part: 236E35023 *Qty: 1 Tubo dalla diverter alia pompa aria
Per U.S
Call
Location: 11 Prev | Next Part: 245-350019 *Qty: 2 Single check valve
Per U.S
Call
Location: 12 Prev | Next Part: 236E35025 *Qty: 1 Diverter valve
Per U.S
Call
Location: 13 Prev | Next Part: 236E35027 *Qty: 6 Bocchettone
Per U.S
Call
Location: 14 Prev | Next Part: 104022 *Qty: 6 Fascetta
Per U.S
Call
Location: 15 Prev | Next Part: 104979 *Qty: 2 Fascetta
Per U.S
Superseded
Location: 16 Prev | Next Part: 10902421 *Qty: 2 Vite
Per U.S
Superseded
Location: 17 Prev | Next Part: 12644401 *Qty: 2 Rondella
Per U.S
Superseded
Location: 18 Prev | Next Part: 12574211 *Qty: 2 Dado autobloccante
Per U.S
Superseded
Location: 19 Prev | Next Part: 251-350131 *Qty: 1 Tubo dalla diverter valve al collettore di aspirazione
Per U.S
Call
Location: 20 Prev | Next Part: 95940219 *Qty: 2 Butlone
Per U.S
Call
Location: 21 Prev | Next Part: 10516473 *Qty: 2 Rondella
Per U.S
Superseded
Location: 22 Prev | Next Part: 12601271 *Qty: 2 Rondella
Per U.S
Superseded
Location: 23 Prev | Next Part: 105942 *Qty: 6 Guarnizione
Per U.S
Superseded
Location: 24 Prev | Next Part: 236E35023 *Qty: 1 Fascetta
Per U.S
Call
Location: 25 Prev | Next Part: 236E35025 *Qty: 1 Fascetta
Per U.S
Call
Location: 26 Prev | Next Part: 236E35026 *Qty: 1 Raccordo sul collettore aspirazione per tubo depressione diverter valve
Per U.S
Call
Location: 27 Prev | Next Part: 236E11146 *Qty: 1 Assieme tubo asta livello olio
Per U.S
Call

* Quantity shown indicates the number of pieces used in the diagram.
