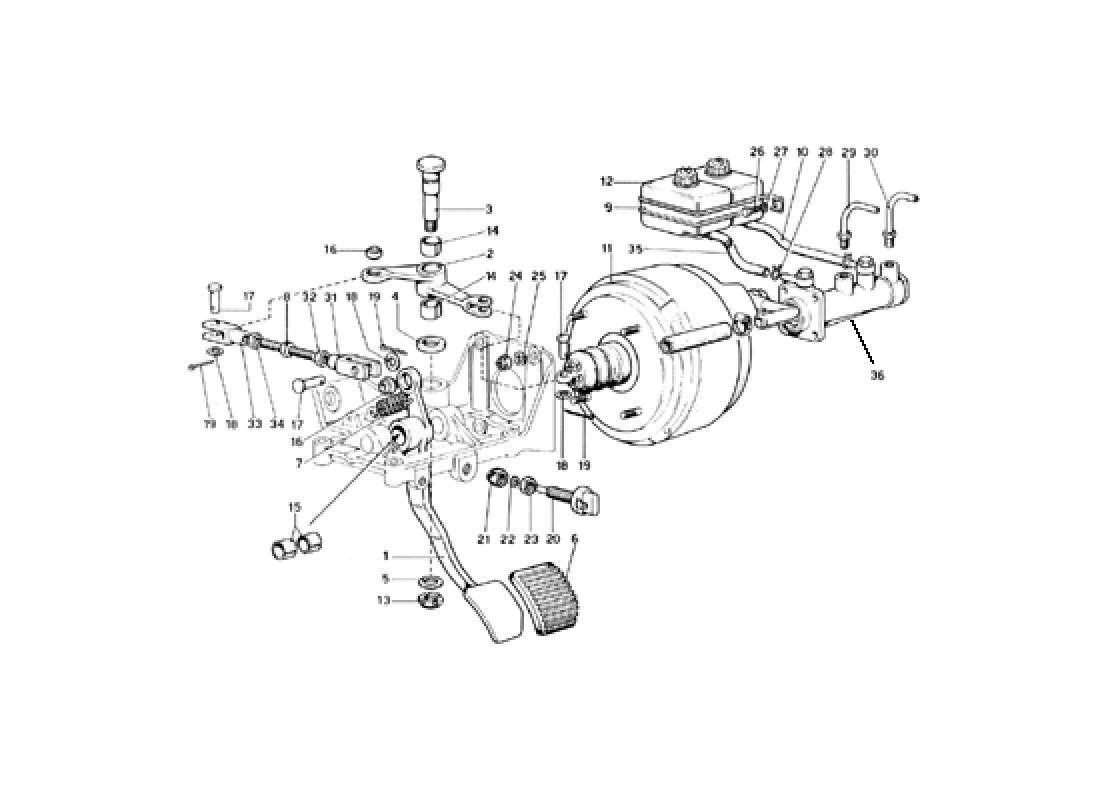

BRAKE HYDRAULIC SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 607E66096 *Qty: 1 Assieme leva freno Call
Location: 1 Prev | Next Part: 607E66097 *Qty: 1 Assieme leva rinvio servofreno Call
Location: 1 Prev | Next Part: 607E66096 *Qty: 1 Leva freno Call
Location: 2 Prev | Next Part: 607E66096 *Qty: 1 Leva rinvio servofreno Call
Location: 3 Prev | Next Part: 607E66096 *Qty: 1 Perno per leva rinvio Call
Location: 4 Prev | Next Part: 607E66096 *Qty: 1 Rondella di rasamento Call
Location: 5 Prev | Next Part: 607E66096 *Qty: 1 Rondella Call
Location: 6 Prev | Next Part: 100976 *Qty: 1 Gommino protezione pedale freno $24.35
Location: 7 Prev | Next Part: 101305 *Qty: 1 Molla richiamo pedale freno $5.99
Location: 8 Prev | Next Part: 607E66096 *Qty: 1 Vite registro servofreno Call
Location: 9 Prev | Next Part: 591-660687 *Qty: 1 Supporto per vaschetta olio freni Call
Location: 10 Prev | Next Part: 104467 *Qty: 1 Tubo collegamento vaschetta al servofreno $5.21
Location: 11 Prev | Next Part: 607E66105 *Qty: 1 Servofreno (BONALDI MASTER-VAC 1405920) Call
Location: 12 Prev | Next Part: 607E66105 *Qty: 2 Vaschetta per liquido freni Call
Location: 13 Prev | Next Part: 95910200 *Qty: 1 Ghiera Call
Location: 14 Prev | Next Part: 103163 *Qty: 2 Boccola per perno leva rinvio $3.81
Location: 15 Prev | Next Part: 103163 *Qty: 2 Boccola per perno leva freno $3.81
Location: 16 Prev | Next Part: 100424 *Qty: 2 Snodo sferico Call
Location: 17 Prev | Next Part: 10033411 *Qty: 3 Perno per snodo Superseded
Location: 18 Prev | Next Part: 100964 *Qty: 3 Rondella Call
Location: 19 Prev | Next Part: 10734201 *Qty: 3 Copiglia Call
Location: 20 Prev | Next Part: 4177124 *Qty: 1 Interruttore Superseded
Location: 21 Prev | Next Part: 4032794 *Qty: 1 Dado gommato Call
Location: 22 Prev | Next Part: 12605270 *Qty: 1 Rosetta $0.90
Location: 23 Prev | Next Part: 10791211 *Qty: 1 Dado $0.90
Location: 24 Prev | Next Part: 16104411 *Qty: 4 Dado autobloccante $0.90
Location: 25 Prev | Next Part: 8R3 *Qty: 4 Rondella Call
Location: 26 Prev | Next Part: LOBO8GM6x1 *Qty: 2 Bullone fissaggio vaschette Call
Location: 27 Prev | Next Part: 10516470 *Qty: 2 Rondella Superseded
Location: 28 Prev | Next Part: 9.59305E+1 *Qty: 4 Molla stringitubo Call
Location: 29 Prev | Next Part: 104469 *Qty: 1 Tubo dal servofreno al 3 vie anteriore $11.77
Location: 30 Prev | Next Part: 607E68106 *Qty: 1 Tubetto dal servofreno alia valvoia regolazione freni posteriori
Vale dal N. 04830
Call
Location: 30 Prev | Next Part: 607M68085 *Qty: 1 Tubetto dal servofreno alla valvoia regolazione freni posteriori
Vale fino N. 04828
Call
Location: 31 Prev | Next Part: 607E66097 *Qty: 1 Testa a forcella Call
Location: 32 Prev | Next Part: 103157 *Qty: 1 Dado (fitetto sinistro) Superseded
Location: 33 Prev | Next Part: LEXBALLG10 *Qty: 1 Testa a forcella Call
Location: 34 Prev | Next Part: 95541 *Qty: 1 Dado (M 10x1.5) Call
Location: 35 Prev | Next Part: 607E66105 *Qty: 1 Tubo collegamento vaschetta al servofreno Call
Location: 36 Prev | Next Part: 124512 *Qty: 1 Brake Master Cylinder
Complete Unit without Servo
Call

* Quantity shown indicates the number of pieces used in the diagram.
