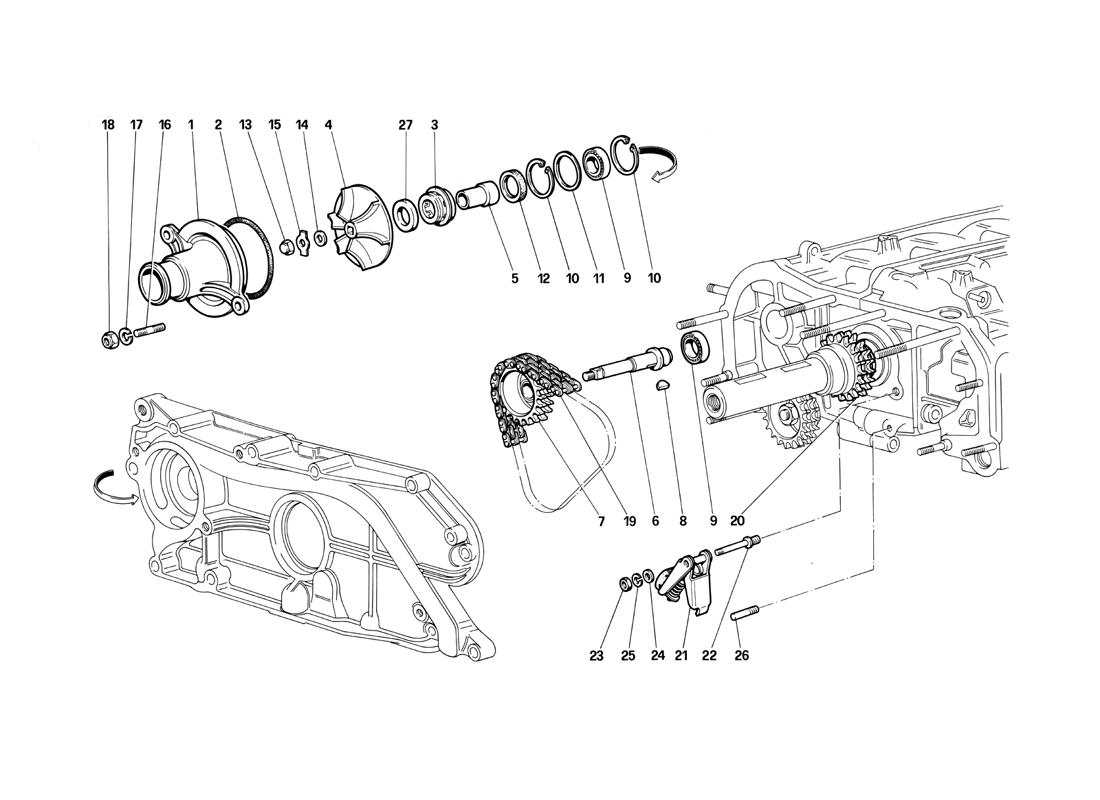

WATER PUMP

Go to Split View

WATER PUMP

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 121012 *Qty: 1 Water pump cover $507.63
Location: 2 Prev | Next Part: 101023 *Qty: 1 Seal ring $5.42
Location: 3 Prev | Next Part: 183759 *Qty: 1 Seal ring
Starting engine no. 20821
$39.84
Location: 3 Prev | Next Part: 120948 *Qty: 1 Seal ring
Until engine no. 20820
Superseded
Location: 4 Prev | Next Part: 120770 *Qty: 1 Impeller
Until engine no. 20820
$351.74
Location: 4 Prev | Next Part: 130930 *Qty: 1 Impeller
Starting engine no. 20821
Call
Location: 5 Prev | Next Part: 121066 *Qty: 1 Spacer
Until engine no. 20820
Call
Location: 5 Prev | Next Part: 130931 *Qty: 1 Spacer
Starting engine no. 20821
$171.00
Location: 6 Prev | Next Part: 130929 *Qty: 1 Spindle
Starting engine no. 20821
$835.58
Location: 6 Prev | Next Part: 121065 *Qty: 1 Spindle
Until engine no. 20820
$448.26
Location: 7 Prev | Next Part: 121064 *Qty: 1 Driven gear $1,266.70
Location: 8 Prev | Next Part: 10202320 *Qty: 1 Feather key $1.44
Location: 9 Prev | Next Part: 133899 *Qty: 2 Bearing
In alternative use no. 133900
$9.68
Location: 10 Prev | Next Part: 11059476 *Qty: 2 Seeger ring $0.90
Location: 11 Prev | Next Part: 121084 *Qty: 1 Spring washer $7.31
Location: 12 Prev | Next Part: 121165 *Qty: 1 Seal ring $13.22
Location: 13 Prev | Next Part: 100436 *Qty: 1 Cap nut $13.30
Location: 14 Prev | Next Part: 10730321 *Qty: 1 Washer $0.90
Location: 15 Prev | Next Part: 100434 *Qty: 1 Safety plate $9.78
Location: 16 Prev | Next Part: 13541021 *Qty: 2 Stud Superseded
Location: 17 Prev | Next Part: 12601271 *Qty: 2 Washer Superseded
Location: 18 Prev | Next Part: 102741 *Qty: 2 Nut $0.51
Location: 19 Prev | Next Part: 133065 *Qty: 1 Water and oil pumps control belt $130.56
Location: 20 Prev | Next Part: 121063 *Qty: 1 Water and oil pumps control gear $541.07
Location: 21 Prev | Next Part: 114329 *Qty: 1 Belt stretcher $384.01
Location: 22 Prev | Next Part: 121269 *Qty: 1 Belt stretcher supporting pin Call
Location: 23 Prev | Next Part: 10720121 *Qty: 1 Nut $0.90
Location: 24 Prev | Next Part: 10730121 *Qty: 1 Tab washer $0.90
Location: 25 Prev | Next Part: 106850 *Qty: 1 Washer Superseded
Location: 26 Prev | Next Part: 14604670 *Qty: 1 Belt stretcher securing pin $0.90
Location: 27 Prev | Next Part: 121553 *Qty: 1 120948 Backplate for ring
For ring no. 120948
Superseded

* Quantity shown indicates the number of pieces used in the diagram.
