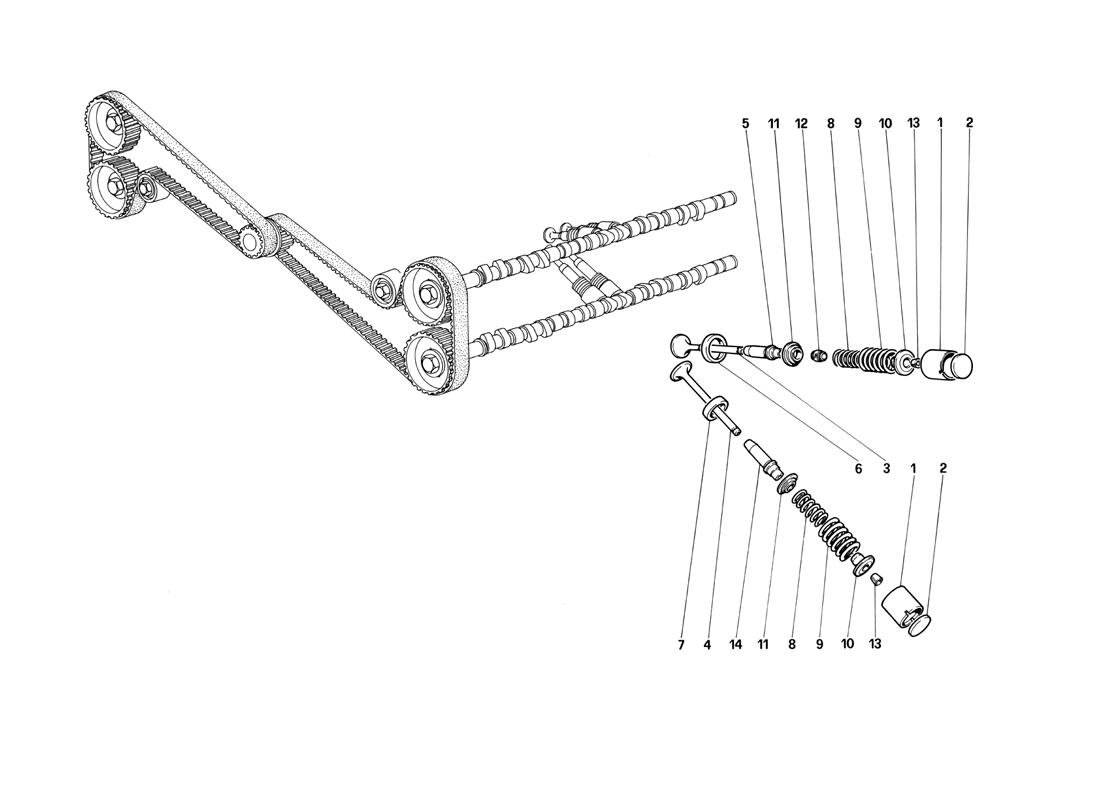

TIMING SYSTEM - VALVES

Go to Split View

TIMING SYSTEM - VALVES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 117562 *Qty: 48 Tappet for valve control $132.68
Location: 2 Prev | Next Part: 117584 *Qty: 48 Shim for valve adjustment, thickness 4,00 mm. $21.32
Location: 2 Prev | Next Part: 117595 *Qty: 48 Shim for valve adjustment, thickness 3,40 mm. $20.11
Location: 2 Prev | Next Part: 117569 *Qty: 48 Shim for valve adjustment, thickness 3,25 mm. $21.32
Location: 2 Prev | Next Part: 117571 *Qty: 48 Shim for valve adjustment, thickness 3,35 mm. $21.32
Location: 2 Prev | Next Part: 117572 *Qty: 48 Shim for valve adjustment, thickness 3,40 mm. $21.32
Location: 2 Prev | Next Part: 117594 *Qty: 48 Shim for valve adjustment, thickness 4,35 mm. $21.32
Location: 2 Prev | Next Part: 117573 *Qty: 48 Shim for valve adjustment, thickness 3,45 mm. $21.32
Location: 2 Prev | Next Part: 117575 *Qty: 48 Shim for valve adjustment, thickness 3,55 mm. $21.32
Location: 2 Prev | Next Part: 117574 *Qty: 48 Shim for valve adjustment, thickness 3,50 mm. $21.32
Location: 2 Prev | Next Part: 117577 *Qty: 48 Shim for valve adjustment, thickness 3,65 mm. $21.32
Location: 2 Prev | Next Part: 117593 *Qty: 48 Shim for valve adjustment, thickness 4,45 mm. $21.32
Location: 2 Prev | Next Part: 117579 *Qty: 48 Shim for valve adjustment, thickness 3,75 mm. $21.32
Location: 2 Prev | Next Part: 117586 *Qty: 48 Shim for valve adjustment, thickness 4,10 mm. $21.32
Location: 2 Prev | Next Part: 117581 *Qty: 48 Shim for valve adjustment, thickness 3,85 mm. $21.32
Location: 2 Prev | Next Part: 117570 *Qty: 48 Shim for valve adjustment, thickness 3,30 mm. $21.32
Location: 2 Prev | Next Part: 117583 *Qty: 48 Shim for valve adjustment, thickness 3,95 mm. $21.32
Location: 2 Prev | Next Part: 117592 *Qty: 48 Shim for valve adjustment, thickness 3,40 mm. $21.32
Location: 2 Prev | Next Part: 117585 *Qty: 48 Shim for valve adjustment, thickness 4,05 mm. $21.32
Location: 2 Prev | Next Part: 117590 *Qty: 48 Shim for valve adjustment, thickness 4,30 mm. $21.32
Location: 2 Prev | Next Part: 117587 *Qty: 48 Shim for valve adjustment, thickness 4,15 mm. $21.32
Location: 2 Prev | Next Part: 117576 *Qty: 48 Shim for valve adjustment, thickness 3,60 mm. $21.32
Location: 2 Prev | Next Part: 117588 *Qty: 48 Shim for valve adjustment, thickness 4,20 mm. $21.32
Location: 2 Prev | Next Part: 117589 *Qty: 48 Shim for valve adjustment, thickness 4,25 mm $21.32
Location: 2 Prev | Next Part: 117578 *Qty: 48 Shim for valve adjustment, thickness 3,70 mm. $21.32
Location: 2 Prev | Next Part: 117591 *Qty: 48 Shim for valve adjustment, thickness 4,35 mm. $21.32
Location: 2 Prev | Next Part: 117580 *Qty: 48 Shim for valve adjustment, thickness 3,80 mm. $21.32
Location: 2 Prev | Next Part: 117582 *Qty: 48 Shim for valve adjustment, thickness 3,90 mm. $21.32
Location: 2 Prev | Next Part: 117596 *Qty: 48 Shim for valve adjustment, thickness 4,45 mm. $20.11
Location: 3 Prev | Next Part: 120476 *Qty: 24 Intake valve $165.57
Location: 4 Prev | Next Part: 120477 *Qty: 24 Exhaust valve Call
Location: 5 Prev | Next Part: 117565 *Qty: 24 Intake valve guide $104.10
Location: 5 Prev | Next Part: 117566 *Qty: 24 Intake valve guide overized by 0.2 mm. Call
Location: 6 Prev | Next Part: 126212 *Qty: 24 Intake valve seat $11.93
Location: 7 Prev | Next Part: 120479 *Qty: 24 Exhaust valve seat $12.58
Location: 8 Prev | Next Part: 117558 *Qty: 48 Valve return inner spring $87.02
Location: 9 Prev | Next Part: 117559 *Qty: 48 Valve return outer spring $36.93
Location: 10 Prev | Next Part: 117567 *Qty: 48 Spring retaining upper cup $47.47
Location: 11 Prev | Next Part: 117568 *Qty: 48 Spring retaining lower cup $7.32
Location: 12 Prev | Next Part: 119051 *Qty: 48 Oil seal for valves guide Superseded
Location: 13 Prev | Next Part: 117283 *Qty: 96 Cotter for valve spring cup $2.74
Location: 14 Prev | Next Part: 117566 *Qty: 24 Exhaust valve guide overized by 0.2 mm. Call
Location: 14 Prev | Next Part: 117565 *Qty: 24 Exhaust valve guide $104.10

* Quantity shown indicates the number of pieces used in the diagram.
